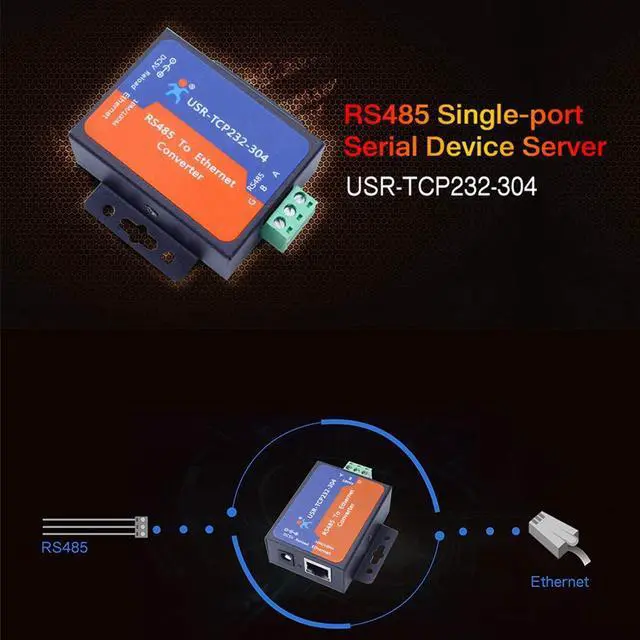

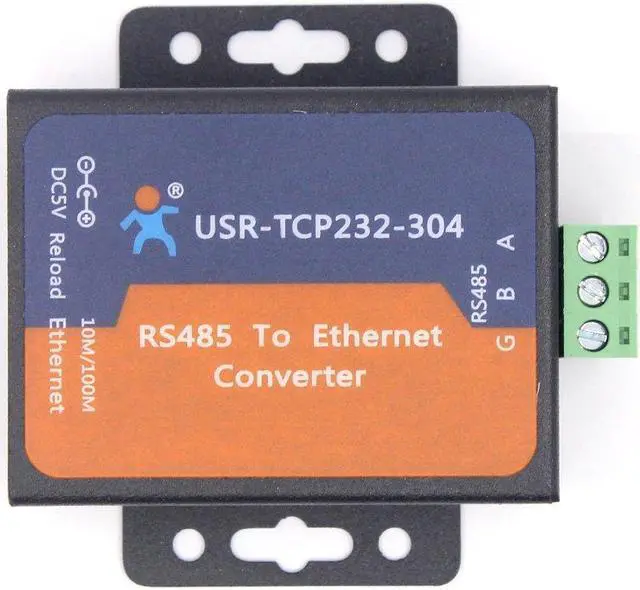

PUSR USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported
- USR-TCP232-304 can transmit data transparently between TCP/IP and RS485. RS485 to Ethernet converters.
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space ; Auto-MDI/MDIX, RJ45 port with 10/100Mbps.
- Can work in LAN, also can work in the Internet (external network) ; Support virtual serial port and provide corresponding software USR-VCOM.
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PUSR USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported
Features of RS485 Ethernet Server
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol.
Support DNS function
Set parameters through webpage
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space

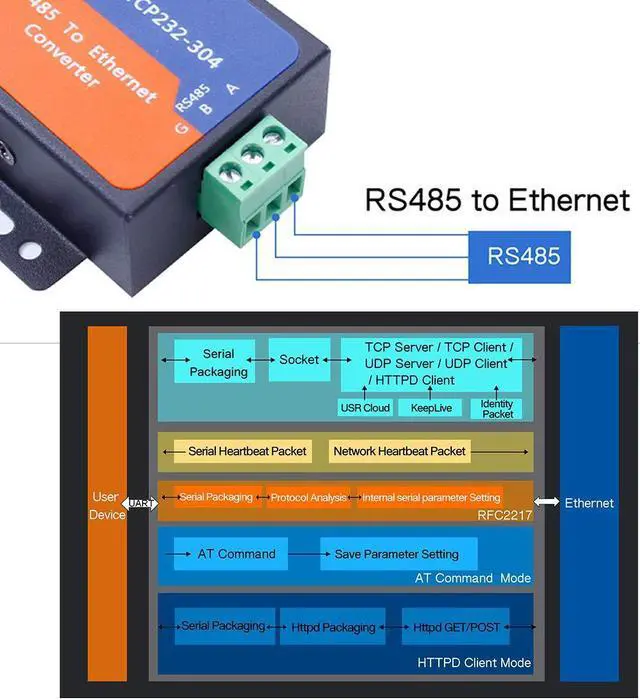

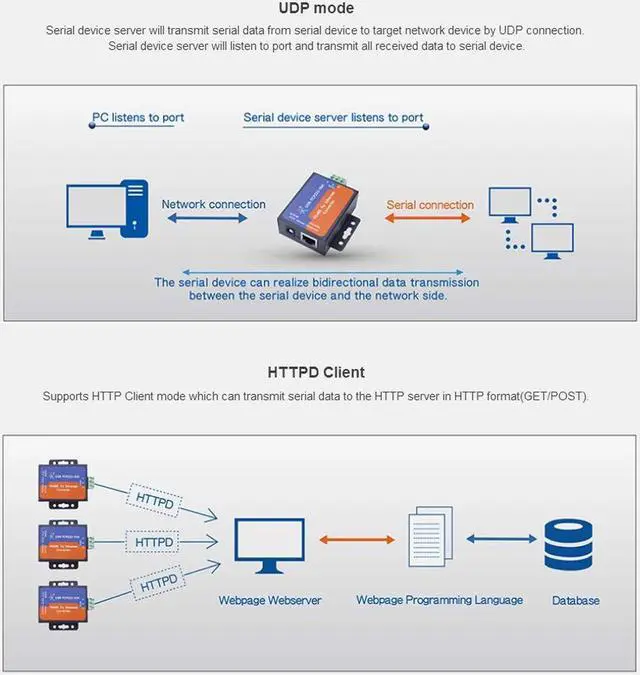

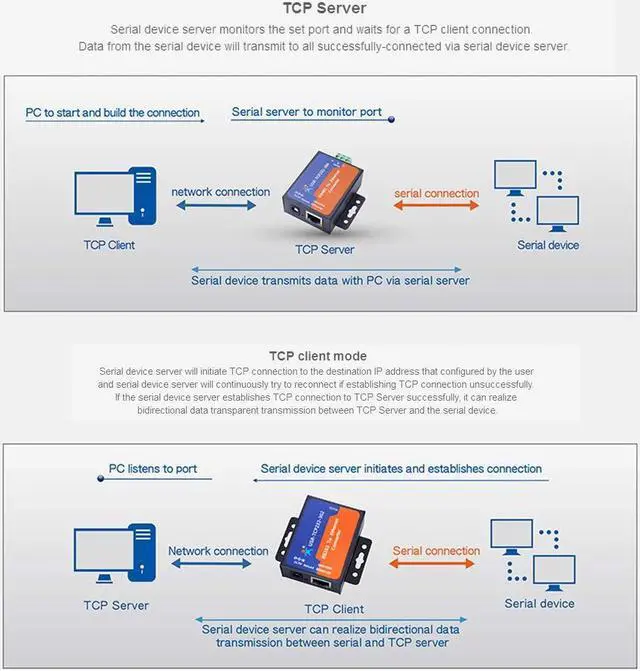

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MA-C address bought from IEEE, user can define M--AC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB, C++, De--lphi, An--droid and I--OS
Support customization
Application Field of RS485 Ethernet Server
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Features of RS485 Ethernet Server
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol.
Support DNS function
Set parameters through webpage
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MA-C address bought from IEEE, user can define M--AC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB, C++, De--lphi, An--droid and I--OS
Support customization
Application Field of RS485 Ethernet Server
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
