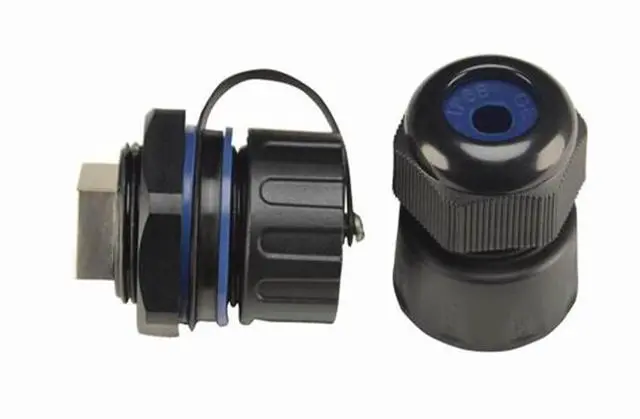

ANMBEST 5PCS M25 Panel Mounting RJ45 Waterproof Connector Cat5/5e/6 Ethernet LAN Cable Coupler with Waterproof/Dust Cap Cover for Outdoor Network
- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the two network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the produc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45

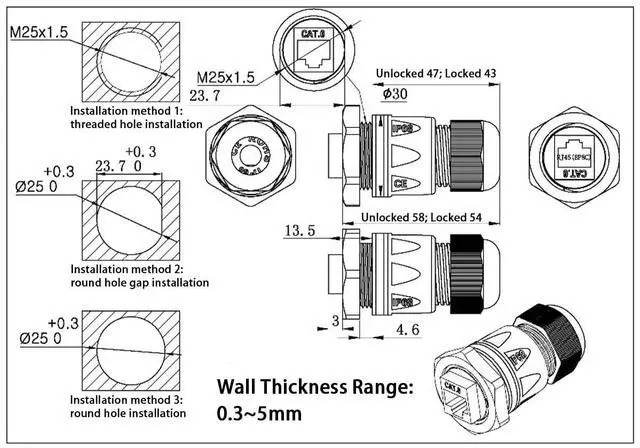

Installation size: M25X 1.5
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (38) mm
Case wall thickness: Threaded
type: >3mm, through-hole type: 0.3 ~5mm
Connector transmission classification: CAT 6
Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:

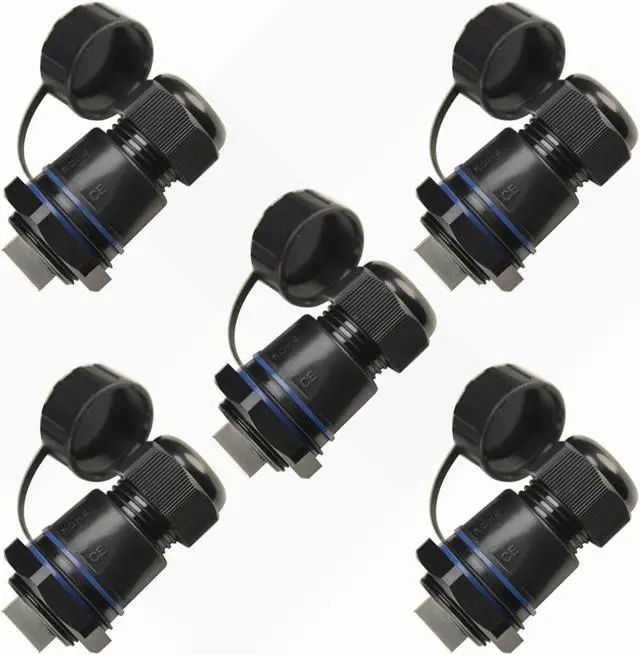

5x Waterproof RJ45 M25 Connector
5x Waterproof/Dust Cap Cover
Specifications
:Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Installation size: M25X 1.5
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (38) mm
Case wall thickness: Threaded
type: >3mm, through-hole type: 0.3 ~5mm
Connector transmission classification: CAT 6
Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x Waterproof RJ45 M25 Connector
5x Waterproof/Dust Cap Cover
