Transwan USB 2.0 hub Over Fiber Extender to Max 5 Kilometers Single-Mode Fiber, Compatible with USB 1.1, Supports Oscilloscope Devices etc
- Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter,Arbitrary Waveform Generator 33250A & 82357B, Oscilloscope Kit, Data Acquisition Device (DAQ), Audio DAC(but Except RME's), Akai APC devices etc.
- 4 ports USB 2.0 extend to 1 port over Fiber, or 1 port USB 2.0 splitted to 4 Ports USB 2.0
- Extending USB 2.0/1.1 Devices over Max 5 Kilometers 2 Cores Single-mode Fiber
- Pure hardware design, no driver needed, compatible with all operation systems, support plug and play
- Auto recognition of High-speed25Mbps480MbpsFull-speed500Kbps12MbpsLow-speed10Kbps1.5MbpsUSB device.
- Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down co
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:

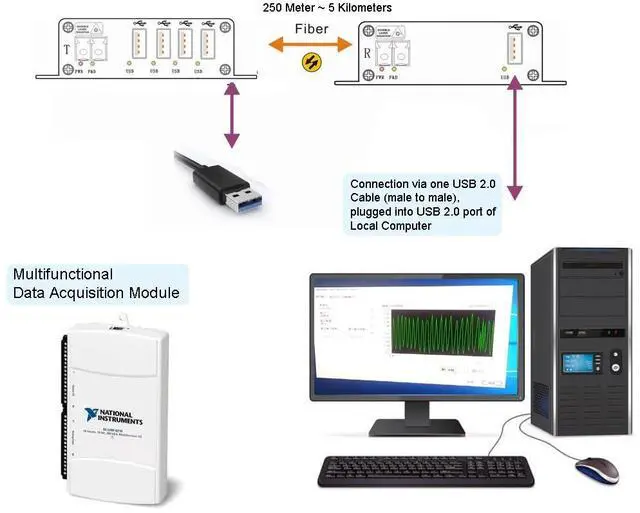

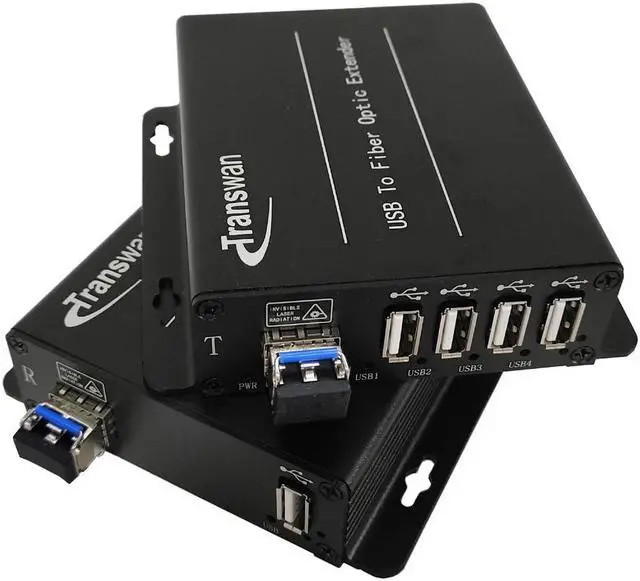

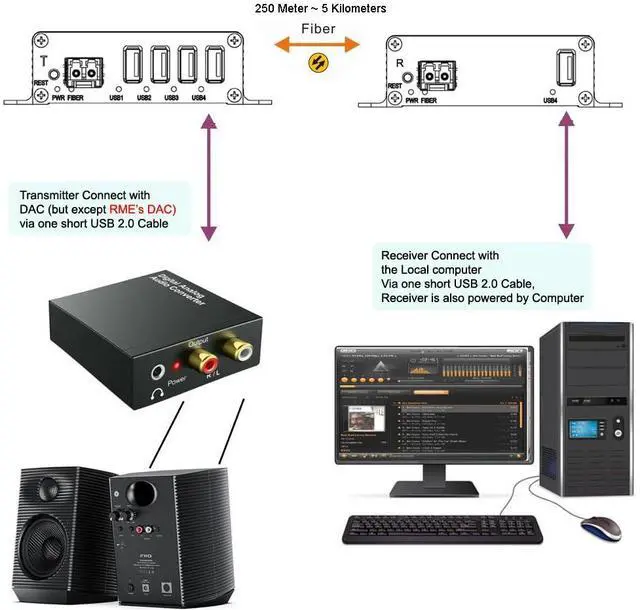

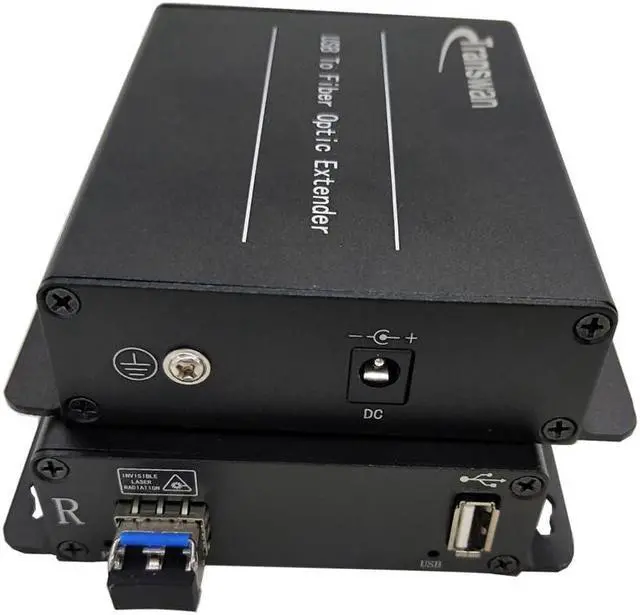

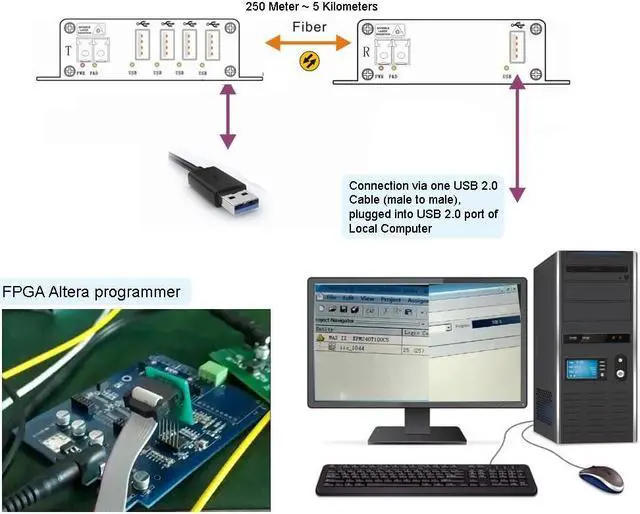

BY-USB-388DF includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 2 cores fiber cable, Max 5 Kilomters Singlemode Fiber or Max 500 Meters Multimode Fiber. it can also split 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.
BY-USB-388DF can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Optical Connector: 2 x LC/PC
Wave length: 1310nm
Support Fiber types: 50/125m (MMF), 62.5 /125m (MMF), 9/125m (SMF)
Physical Size (L× W ×H): 104mm x104mm x28mm
Case: Aluminum
Color: Black
N. W.: 0.75K g
Power Voltage: 5~12V DC
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface (Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0 device
Package:
1. 1 x transmitter (client side).
2. 1 x receiver (host side).
3. 1 x Power supply adapter DC 5~12V with US/EU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable
5. 1 x Manual
BY-USB-388DF includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 2 cores fiber cable, Max 5 Kilomters Singlemode Fiber or Max 500 Meters Multimode Fiber. it can also split 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.
BY-USB-388DF can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Optical Connector: 2 x LC/PC
Wave length: 1310nm
Support Fiber types: 50/125m (MMF), 62.5 /125m (MMF), 9/125m (SMF)
Physical Size (L× W ×H): 104mm x104mm x28mm
Case: Aluminum
Color: Black
N. W.: 0.75K g
Power Voltage: 5~12V DC
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface (Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0 device
Package:
1. 1 x transmitter (client side).
2. 1 x receiver (host side).
3. 1 x Power supply adapter DC 5~12V with US/EU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable
5. 1 x Manual
