$185.99
Meet Your Seller

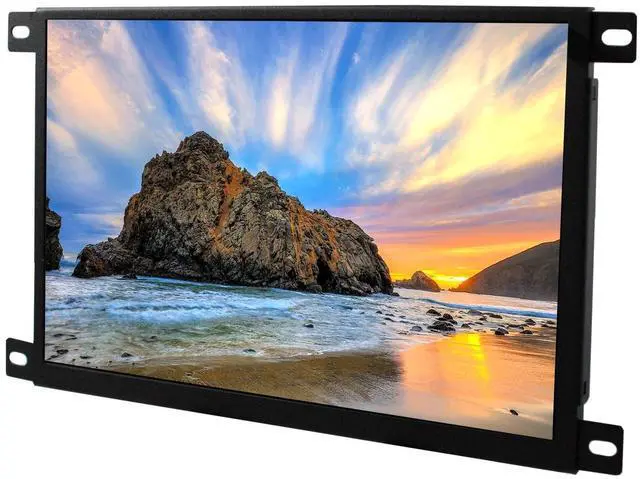

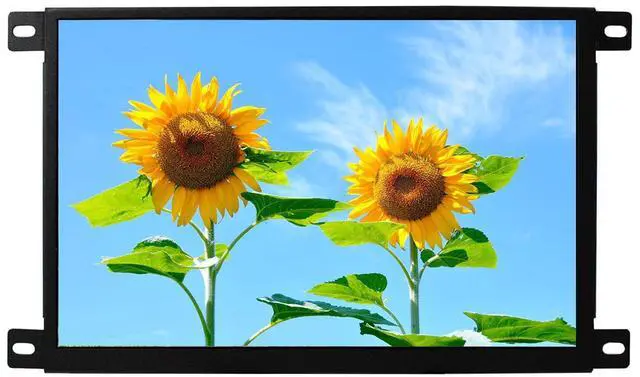

VSDISPLAY 10.1 Inch 1280x800 IPS Small LCD Screen 1000 Nits High Brightness Display Panel with Metal Case,Supports USB Video Input
- 10.1'' LCD10.1 in 1280x800 LCD screen,Brightness 1000 cd/m (Typ.);Contrast Ratio 1000:1 (Typ.) (TM)
- Feature1000 nits high brightness and IPS 178 degree full viewing angle,bright and clear display image
- USB BoardSupports USB video input,plug and play.(: Support 1.4; USB: Support Video Playback, Picture Playback, Text Playback)
- PortableSmall size LCD screen with metal case,it's convenient to use and install
- ApplicationFor different DIY project,you can according to your needs to use the portable and small LCD monitor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

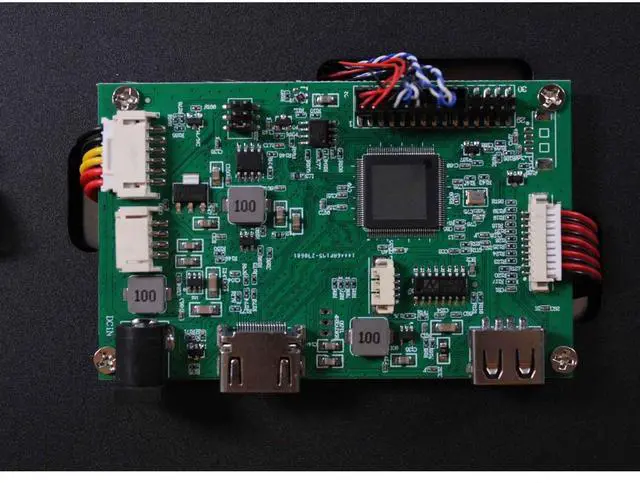

LCD Controller Board: USB LCD Board for 30Pin LVDS
Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby Model <1WVoltage To
LCD Panel: 3.3V 5V 12V (Jumper optional)
Video Input:
USB: Support
1.4USB: Support Video Playback, Picture Playback, Text PlaybackUpgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, andplugged into the USB of the driver board, the power can be upgraded, and it will automaticallyrestart after completed)Audio: Speaker Support 8ohm 2W/ 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 90mm x 51mm x 14mm 10.1" VS101T-001A 1280X800

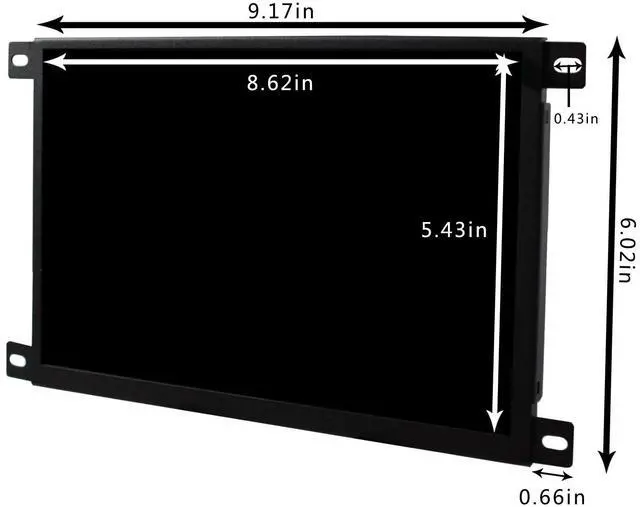

LCD Screen: Display Mode IPS Pro, Normally Black, TransmissiveResolution 1280800Outline Size 2301495 (HVD) mmDisplay Area 216.96 135.6 (HV) mmBrightness 1000 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 8-bit), Connector, 40 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 10.1" 1280x800 1000nit LCD with USB
LCD Controller Board(Tips: There is no power adapter in packing list, pls prepare by yourself)
Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby Model <1WVoltage To
LCD Panel: 3.3V 5V 12V (Jumper optional)
Video Input:
USB: Support
1.4USB: Support Video Playback, Picture Playback, Text PlaybackUpgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, andplugged into the USB of the driver board, the power can be upgraded, and it will automaticallyrestart after completed)Audio: Speaker Support 8ohm 2W/ 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 90mm x 51mm x 14mm 10.1" VS101T-001A 1280X800
LCD Screen: Display Mode IPS Pro, Normally Black, TransmissiveResolution 1280800Outline Size 2301495 (HVD) mmDisplay Area 216.96 135.6 (HV) mmBrightness 1000 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 8-bit), Connector, 40 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 10.1" 1280x800 1000nit LCD with USB
LCD Controller Board(Tips: There is no power adapter in packing list, pls prepare by yourself)
