Jienk DB44 Solderless Male RS232 Serial Adapters, HDB44 Male D-SUB to 44Pin 3Row Terminal Block Breakout Board for CNC Computers Mechanical Equipment

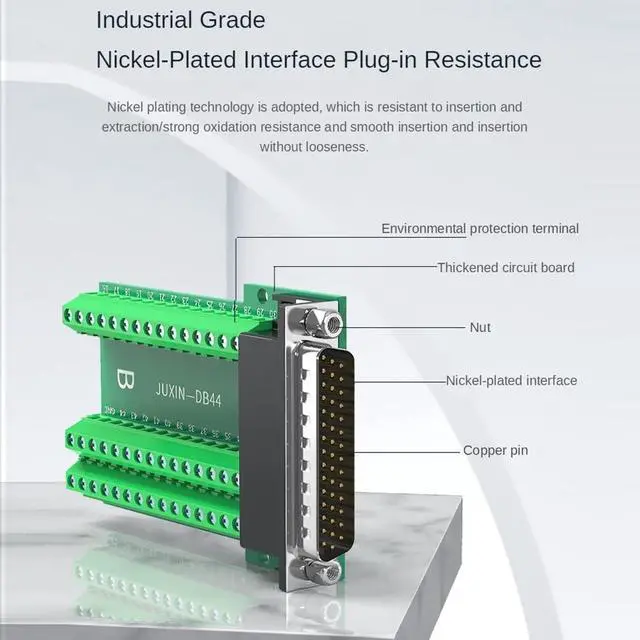

- DurableAll copper base with gold plated joints thickened FR-4 fiber glass PCB board, ensures good contact anti-oxidation and a long serve life.
- Wildly ApplicationsThis db44 breakout board connect all kinds of serial devices. Such as automatic control equipment, industrial control equipment, cash register,computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
- ConvenienceAll signal ports are clearly named and labeled on both sides of the board for quick wiring and reduce error.
- FlexibilityThe terminal block it's more easier than soldering wires onto a connector. Can be used for test purpose and check pinouts, cables or any devices with DB44 interface.

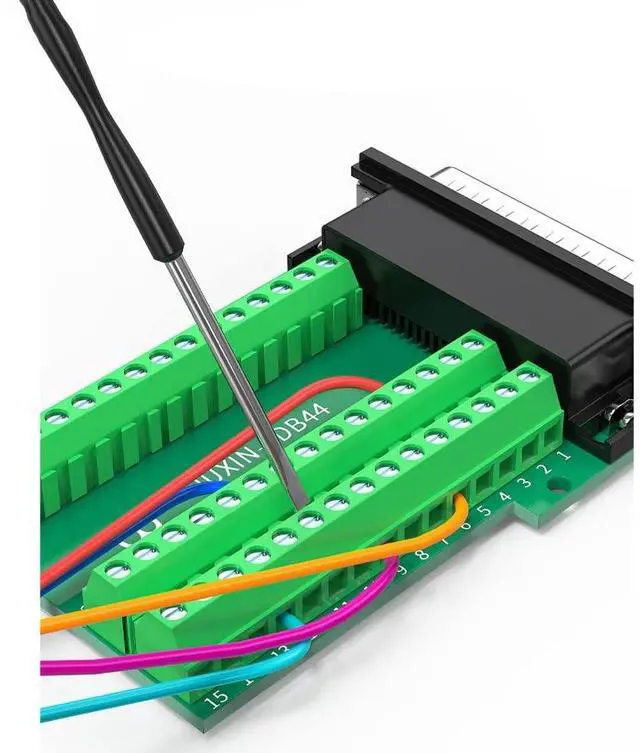

- No Soldering Required Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. Save you from solder trouble, no need to purchase expensive tool. Great time and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
These DB44 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: DB44 solderless modulePlug
Type: MaleContact
Material: CopperTerminal
Block Diameter: 0.08
'' / 2mmPitch: 0.15 '' / 3.81 mmCable
Specification: 26-16 AWG
Strip length:
5-6mmTorque: 0.2N m ( 1.7L b-In.
)Rated voltage: 24VRated
current:
2AApplication: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.

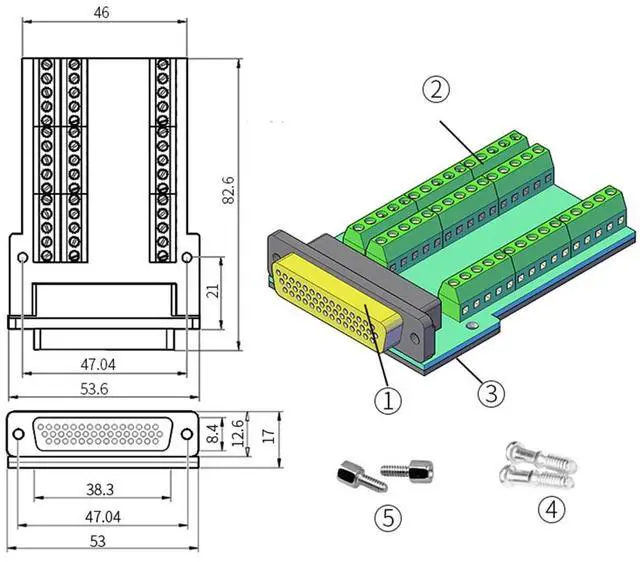

Size: 82.4 mm 52.8 mm / 3.242.
08Package includes: 1 x DB44 Male Solderless Connector
Technical
Specifications
:Name: DB44 solderless modulePlug
Type: MaleContact
Material: CopperTerminal
Block Diameter: 0.08
'' / 2mmPitch: 0.15 '' / 3.81 mmCable
Specification: 26-16 AWG
Strip length:
5-6mmTorque: 0.2N m ( 1.7L b-In.
)Rated voltage: 24VRated
current:
2AApplication: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 82.4 mm 52.8 mm / 3.242.
08Package includes: 1 x DB44 Male Solderless Connector
