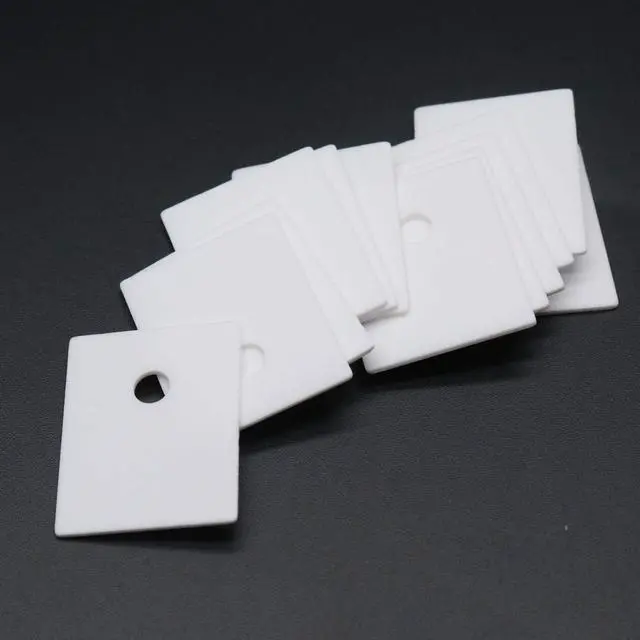

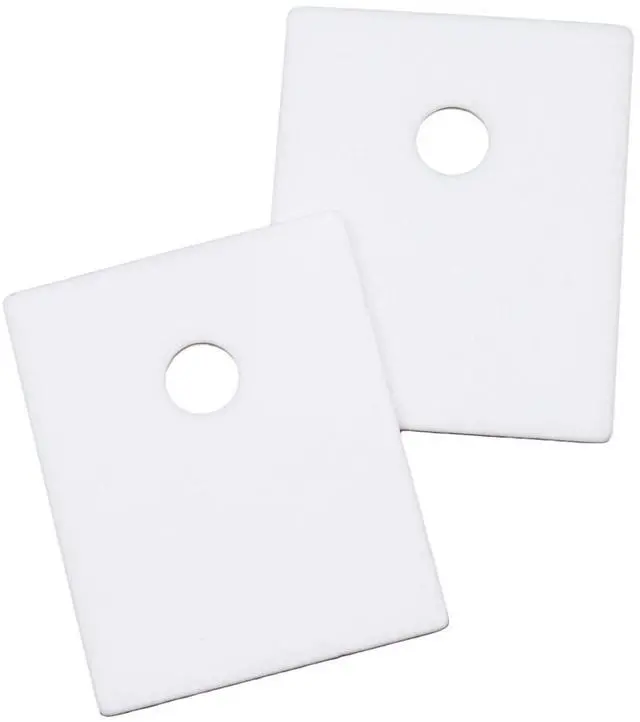

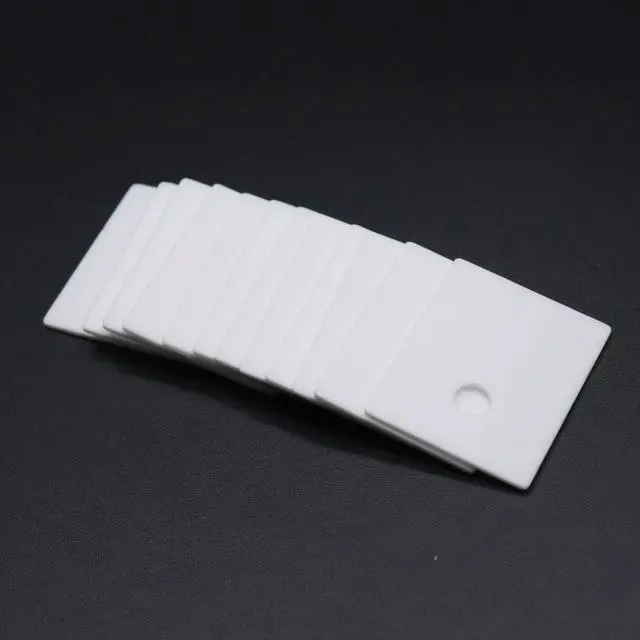

Xiaoyztan 100 Pcs TO-3P Alumina Ceramic Insulator Pads, Power Devices Heatsink Insulation Pad for MOS Transistor IGBT Transistor Heat Sink, 20 x 25 mm
- A ceramic heat sink is a device that dissipates heat-dissipating electronic components in an electrical appliance
- The hole structure of the ceramic heat sink increases the heat dissipation area in contact with the air, which greatly enhances the heat dissipation effect, and the heat dissipation effect is better than that of the super copper and aluminum
- Ceramics are insulated, resistant to high temperatures, oxidation, acid and alkali, cold and thermal shock, and low coefficient of thermal expansion, ensuring stability in high and low temperatures or other harsh environments
- Ceramic can withstand high current, can be high voltage, can prevent leakage breakdown, no noise, will not generate coupling parasitic capacitance with power tubes such as MOS, and thus simplify the filtering process
- Size Difference Notice: Please allow 1-3mm measurement difference due to manual measurement and a certain degree of color difference caused by camera lenses, different phone screens, and di
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: 1. Ideal for mounting TO-3P/TO-247 package power devices to a heat sink. 2. With high insulation, good thermal conductivity properties and resistance to electrical breakdown3. Suitable for high-power audion, field-effect tube, Voltage Regulator Module, all kinds of audio power amplifier module, high-power silicon controlled rectifier module, the integration of rectifier module, etc.
Installation Steps: 1.
Clean the target surface: Clean the dust or stains on the surface of the object to be installed, and then align the hole position of the ceramic insulating sheet; 2.
Power tube bonding: Stick the power tube on the alumina ceramic insulating sheet; 3.
Fixed the insulation sheet: Use screws to fix the power tube and ceramic insulating sheet on the installation object.
Model: TO-3P/
TO-247Material: Alumina ceramicsMain
Color:
WhiteSize: 20x25mm/ 0.79" x 1" (L*W)
Thickness: 1mmThermal
conductivity: 25~28W/m.
kThermal resistance: 0.3K /WHole
Dia: 4mm/
0.16"W eight: 0.06 oz/pcPackage
Content: 100(+/-2%) x Ceramic Insulator Plates
Installation Steps: 1.
Clean the target surface: Clean the dust or stains on the surface of the object to be installed, and then align the hole position of the ceramic insulating sheet; 2.
Power tube bonding: Stick the power tube on the alumina ceramic insulating sheet; 3.
Fixed the insulation sheet: Use screws to fix the power tube and ceramic insulating sheet on the installation object.
Specifications
:Model: TO-3P/
TO-247Material: Alumina ceramicsMain
Color:
WhiteSize: 20x25mm/ 0.79" x 1" (L*W)
Thickness: 1mmThermal
conductivity: 25~28W/m.
kThermal resistance: 0.3K /WHole
Dia: 4mm/
0.16"W eight: 0.06 oz/pcPackage
Content: 100(+/-2%) x Ceramic Insulator Plates
