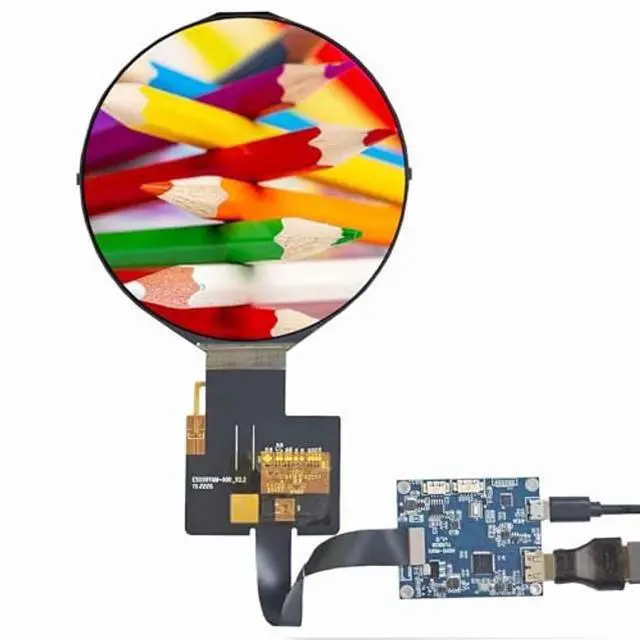

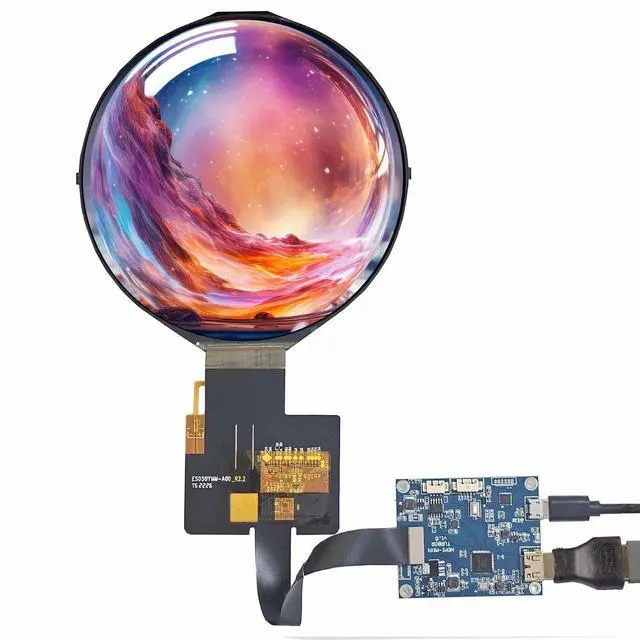

FanyiTek 5 inch 1080x1080 350nit IPS MIPI Round LCD Screen and 50 pins Controller Board,Micro USB Power Port
- ApplicationSpecially working for DIY AIDA64 CPU GPU temperature computer PC case display.
- 1080P IPS Round MIPI screen5"1080x1080 display, IPS full viewing angle,outline size:136.53x132.58x2 (WHD)mm,display area:127.008x 127.008(WH)mm,350nit high brightness ,WLED backlight .

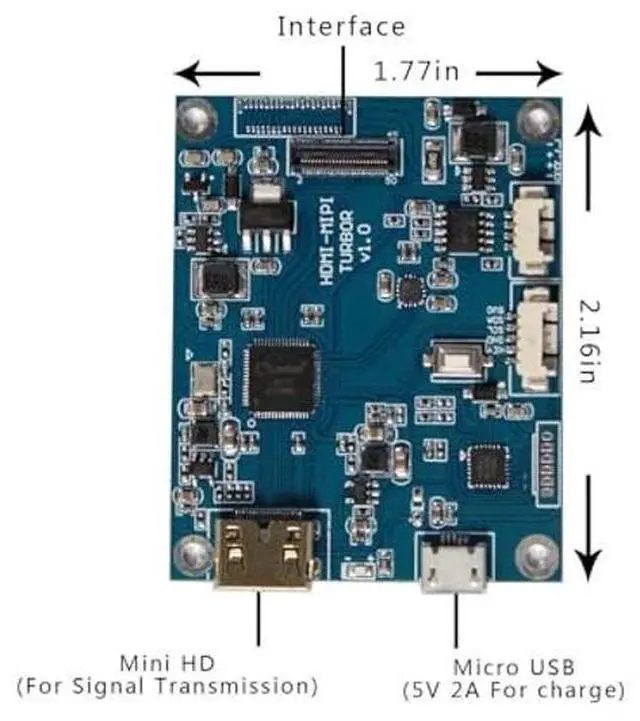

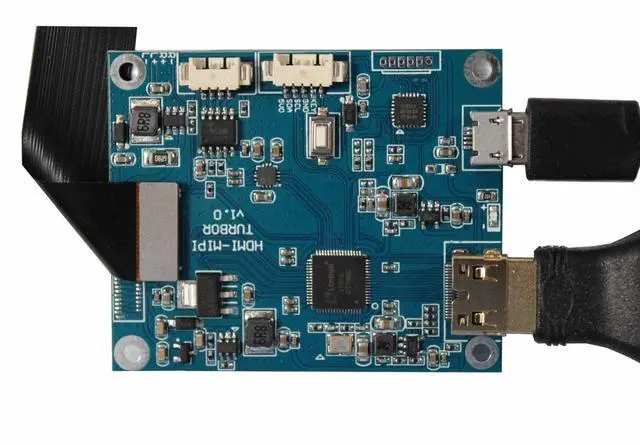

- Mini Driver boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- Input PowerMicro USB Power port ,5Vdc More than 1A ,Pls prepare it seperately .
- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: USB 5V More than 1A.
Video Input: 1.4B oard
Size: 50mm x 45mm x 5mm5 inch
Circle Screen: Display Mode TN, Normally White, TransmissiveResolution 1080 (RGB) x1080Outline Size 136.53 x 132.58 x2 (WHD) mmDisplay Area 127.008 x 127.008 (WH) mmBrightness 350 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi (1 ch, 8-bit), 50 pins, Backlight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board15 inch LCD Round Display
Power Adapter: USB 5V More than 1A.
Video Input: 1.4B oard
Size: 50mm x 45mm x 5mm5 inch
Circle Screen: Display Mode TN, Normally White, TransmissiveResolution 1080 (RGB) x1080Outline Size 136.53 x 132.58 x2 (WHD) mmDisplay Area 127.008 x 127.008 (WH) mmBrightness 350 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi (1 ch, 8-bit), 50 pins, Backlight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board15 inch LCD Round Display
