4PCS USB-C PD3.0/3.1 QC Trigger Module 5V 9V 12V 15V 20V 28V 5A Adjustable Voltage Power Trigger Board Type-C Female Input with Indicator
- Support Multiple of ProtocolsQC PD2.0/3.0/3.1 FCP AFC voltage trigger output. Ajustable voltage 5V/9V/12V/15V/20V/28V trigger output. Parameters can be saved automatically.
- Wide CompatibilityMax supports 28V/5A, 140W. The actual output current/power is determined by your PD power supply and load.
- Safe DesignSolid and long service life. Ultra low-power consumption. The button with lock function to prevent misoperation.

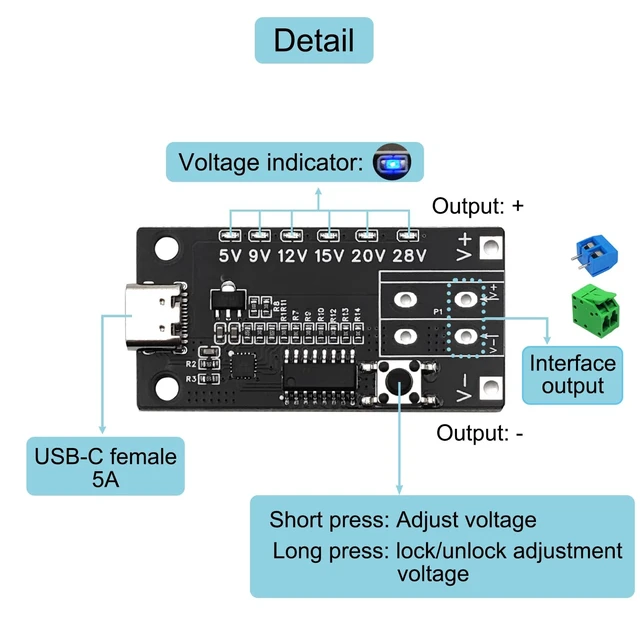

- Easy to OperateAdjusting the output voltage using the button, indicator lamp shows voltage, easy to use and voltage display.
- Widely UseIt can be used for PD charger to trigger different voltages as DC power supply, and also be used to supply power to router, optical modem, battery charging, etc. Note: When you want to test/use the voltage 28V, please make sure the 140W power supply is connected to only one piece type-C cable with E-mark. (If the 140W power supply is connected to 2 pieces or more cables, the power supply output will not reach 28V.)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
Output: 5V/9V/12V/15V/20V/28VOutput
current: 5A (MAX)
Operating Temperature: -40 C to +85
CSize: 51*25*
7.5 mmWeight: gOperating

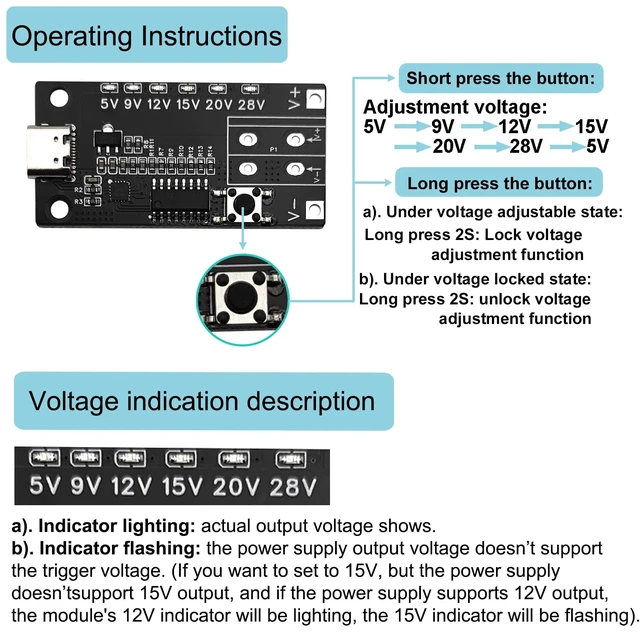

Instructions: 1. Short press the button to switch the output voltage, the
voltage output switching sequence: 5V -> 9V -> 12V -> 15V -> 20V -> 28V->5V (in turn). 2. long press the button can lock/unlock the voltage switching function. a). How to lock the voltage switching function: Press and hold the button for 2 seconds until all the indicators light up, then release the button. b). How to unlock the voltage switching function: Press and hold the button for 2 seconds in the locked state until all the indicators light up, then release the button. 3.
Voltage indication description: a).
Indicator lighting: actual output voltage shows. b).
Indicator flashing: the power supply output voltage does not support the trigger voltage. c). For example, you want to set the trigger 15V, but the power supply does not support 15V output, and if the power supply supports 12V output, the module's 12V indicator light will be lighting, and the 15V indicator light will be flashing.
Attentions: 1. The trigger board can't boost buck, it can be trigger power module output only. 2. Please know that there are not all PD power supplies can support all voltages. The max support is 28V/5A (140W), the actual output current/power is determined by your fast charging charger and load. 3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage. (If you want to trigger 12V, but your charger doesn't support 12V, it will automatically fall back to 9V)4. If you want to use more than 65W, please use the USB-C cable with E-mark. (Max current support 5A)

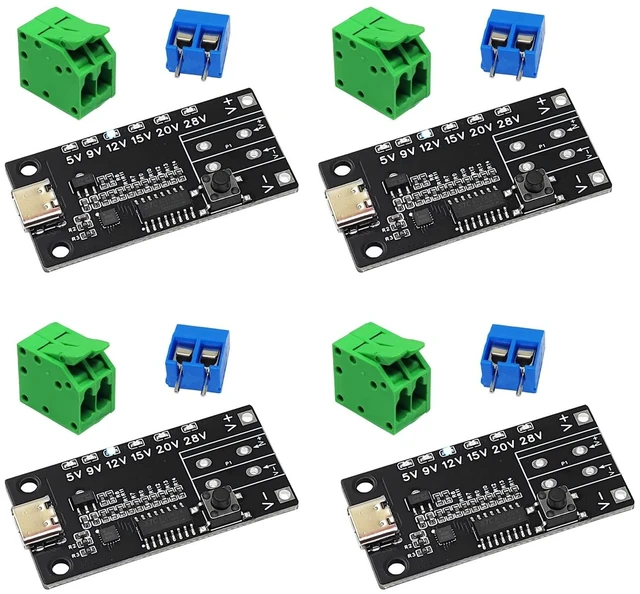

Package Included: 4*PD Trigger Board with Light4*DA806R- 5.0 -2PIN4*KF301-2PIN
Output: 5V/9V/12V/15V/20V/28VOutput
current: 5A (MAX)
Operating Temperature: -40 C to +85
CSize: 51*25*
7.5 mmWeight: gOperating
Instructions: 1. Short press the button to switch the output voltage, the
voltage output switching sequence: 5V -> 9V -> 12V -> 15V -> 20V -> 28V->5V (in turn). 2. long press the button can lock/unlock the voltage switching function. a). How to lock the voltage switching function: Press and hold the button for 2 seconds until all the indicators light up, then release the button. b). How to unlock the voltage switching function: Press and hold the button for 2 seconds in the locked state until all the indicators light up, then release the button. 3.
Voltage indication description: a).
Indicator lighting: actual output voltage shows. b).
Indicator flashing: the power supply output voltage does not support the trigger voltage. c). For example, you want to set the trigger 15V, but the power supply does not support 15V output, and if the power supply supports 12V output, the module's 12V indicator light will be lighting, and the 15V indicator light will be flashing.
Attentions: 1. The trigger board can't boost buck, it can be trigger power module output only. 2. Please know that there are not all PD power supplies can support all voltages. The max support is 28V/5A (140W), the actual output current/power is determined by your fast charging charger and load. 3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage. (If you want to trigger 12V, but your charger doesn't support 12V, it will automatically fall back to 9V)4. If you want to use more than 65W, please use the USB-C cable with E-mark. (Max current support 5A)
Package Included: 4*PD Trigger Board with Light4*DA806R- 5.0 -2PIN4*KF301-2PIN
