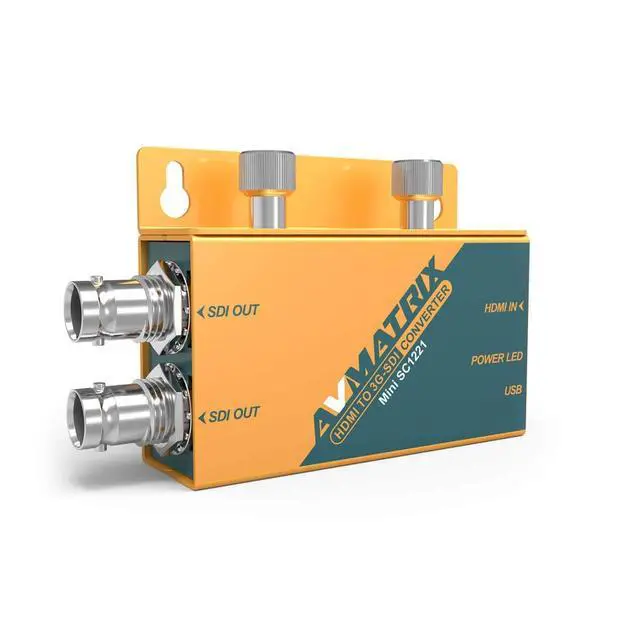

AVMATRIX Mini SC1221 Pocket-Size HDMI to 3G-SDI Broadcast Converter
- Portable Broadcast ConverterThe Mini SC1221 is a pocket-size broadcast converter, it converts HDMI input signal to SDI signal. It is very convenient for users with the full size SDI and HDMI connectors.
- Born for BroadcastAlthough it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
- Powered AnywhereFeatured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 5,000mAh power bank can supply a more than 24-hour uninterrupted working time.
- Pocket Size and Easy to MountMiniature design makes it portable for
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IntroductionMini SC1221 is an exquisite and portable SDI to HDMI converter. With micro USB power supply, convenient and detachable mounting bracket, MiniSC1221 is the best choice for indoors and outdoors. It adopts a type A HDMI input and dual 3G-SDI outputs, supporting a conversion of full HD resolution signal of 1080p60 to professional SDI signal. Different video rate of SD/HD/3G-SDI is selectable for SDI output.

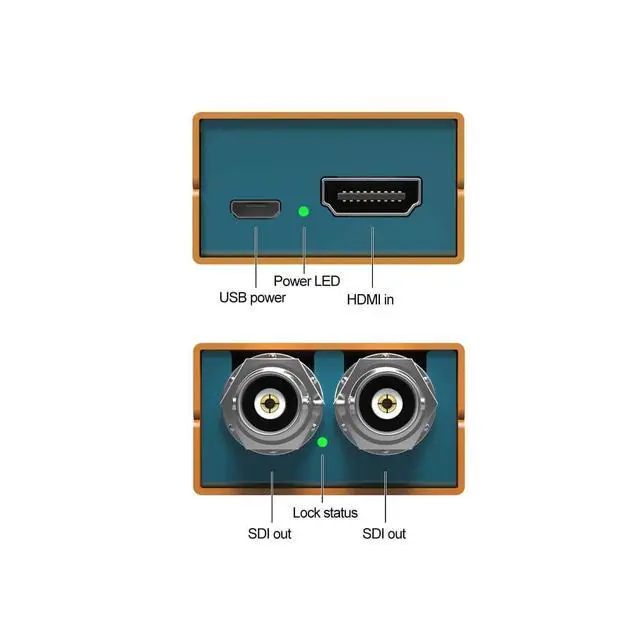

ConnectionsHDMI Video Input: 1HDMI ASDI
Video output: 2SD/HD/3G-SDI (75
BNC) Micro USB: Power and software updateSDI
LED: SDI output signal indicatorPower
LED: Power indicatorStandardsSDI
Format Support: 525i 59.94, 625i 50720p 50/ 59.94 /601080i 50/ 59.94 /601080p 23.976 / 23.98 /24/25/ 29.97 /301080p 50/ 59.94 /60SDI
Video Rate: SD/HD/3G-SDISDI Color Space and
Precision: YUV
4:2: 2SDI
Compliance: SMPTE 259MSMPTE 292MSMPTE 424MHDMI
Format Support: 480i 59.94 /60, 576i 50720p 50/ 59.94 /601080i 50/ 59.94 /601080p 23.976 / 23.98 /24/25/ 29.97 /301080p 50/ 59.94 /60HDMI Color Space and
Precision: YUV
4:2: 2/
4:4: 4, RGB
4:4:
4PowerPower: Micro
USB
Power Consumption: 2WVoltage
Range: 3.3V -5VPhysical
SpecificationsDimension: 714123mmNet
Weight: 168gGross
Weight: 500gWhat's IncludedMini SC1221Mounting Bracket5V Special Power AdapterUSB Cable
ConnectionsHDMI Video Input: 1HDMI ASDI
Video output: 2SD/HD/3G-SDI (75
BNC) Micro USB: Power and software updateSDI
LED: SDI output signal indicatorPower
LED: Power indicatorStandardsSDI
Format Support: 525i 59.94, 625i 50720p 50/ 59.94 /601080i 50/ 59.94 /601080p 23.976 / 23.98 /24/25/ 29.97 /301080p 50/ 59.94 /60SDI
Video Rate: SD/HD/3G-SDISDI Color Space and
Precision: YUV
4:2: 2SDI
Compliance: SMPTE 259MSMPTE 292MSMPTE 424MHDMI
Format Support: 480i 59.94 /60, 576i 50720p 50/ 59.94 /601080i 50/ 59.94 /601080p 23.976 / 23.98 /24/25/ 29.97 /301080p 50/ 59.94 /60HDMI Color Space and
Precision: YUV
4:2: 2/
4:4: 4, RGB
4:4:
4PowerPower: Micro
USB
Power Consumption: 2WVoltage
Range: 3.3V -5VPhysical
SpecificationsDimension: 714123mmNet
Weight: 168gGross
Weight: 500gWhat's IncludedMini SC1221Mounting Bracket5V Special Power AdapterUSB Cable
