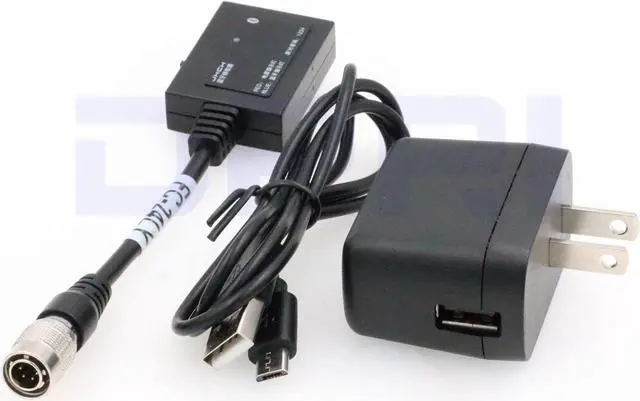

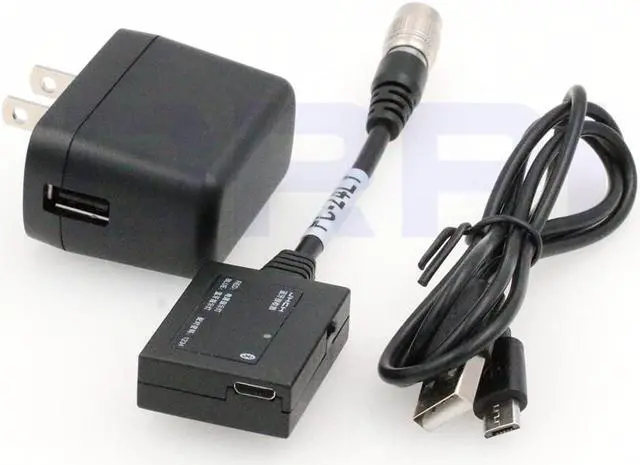

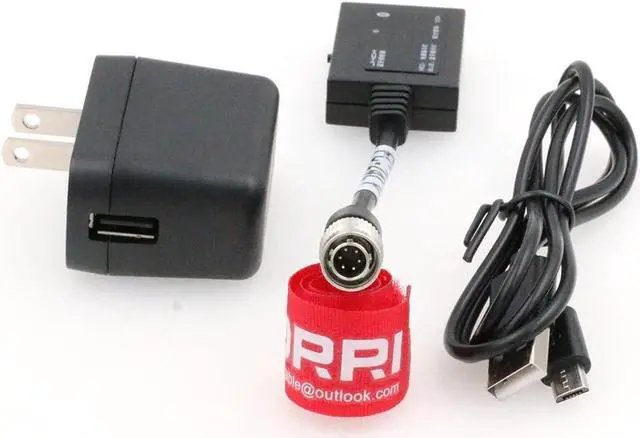

DRRI Bluetooth Adapter Cable Hiorse 6 Pin to USB for TOP-CON GTS 310 Series Sokkia Set 610 510 Total Station (FC-24LY)
- model:FC-24LY.
- Bluetooth device name BC04-B
- Hirose 6pin male to USB Bluetooth Adapter cable for TOP-CON Total Station
- Fit for Top-con total station gts 310 series,Sokkia SET 610 510,Sokkia SDL30/SDL50.
- Survey Pro level menu : serial port:com 8, parity:none , baud rat: 9600
- Cables fabricated with the highest quality components and are 100% continuity tested.
+
+
Overview
Specs
Reviews
FC-24LY Bluetooth adapter user's manual
stey 1: Connect the Bluetooth adapter to the device, and insert one end of the Bluetooth into the serial port of the instrument.
stey 2: Turn on the instrument, click the menu button, select communication settings, turn on the serial port switch, set the baud rate to 9600, and the data set to 8 bits, click OK to return to the main menu.
stey 3: Turn on the Bluetooth adapter, the light is flashing, it proves that it is not connected yet.
stey 4: Open the surveyor APP downloaded by our Android mobile phone, open the bluetooth device, select the device model we use, search for "BC04" in the "search for new device", click connect, enter
the pairing password: 1234, and then confirm pairing.
stey 5: Look at the light on the Bluetooth adapter to show a steady state, that is, the connection is successful.
DRRI as a professional in design and manufacture all kinds of special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.
Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
Furthermore, it has excellent compatibility with many leading supplier.
DRRI With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
We supply different OEM/ODM services serve as different application and requirement.
We are able to provide high quality cables which maches different environmentally friendly standards in all countries.
If you need welding cable for connector, you'd better provide paramper of the cable and the specification of the connector.
Any cables can be customized according to your requirement.
Please Recognize DRRI Original Cables. That means that you'll have the full force of the DRRI Manufacturer
stey 1: Connect the Bluetooth adapter to the device, and insert one end of the Bluetooth into the serial port of the instrument.
stey 2: Turn on the instrument, click the menu button, select communication settings, turn on the serial port switch, set the baud rate to 9600, and the data set to 8 bits, click OK to return to the main menu.
stey 3: Turn on the Bluetooth adapter, the light is flashing, it proves that it is not connected yet.
stey 4: Open the surveyor APP downloaded by our Android mobile phone, open the bluetooth device, select the device model we use, search for "BC04" in the "search for new device", click connect, enter
the pairing password: 1234, and then confirm pairing.
stey 5: Look at the light on the Bluetooth adapter to show a steady state, that is, the connection is successful.
DRRI as a professional in design and manufacture all kinds of special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.
Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
Furthermore, it has excellent compatibility with many leading supplier.
DRRI With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
We supply different OEM/ODM services serve as different application and requirement.
We are able to provide high quality cables which maches different environmentally friendly standards in all countries.
If you need welding cable for connector, you'd better provide paramper of the cable and the specification of the connector.
Any cables can be customized according to your requirement.
Please Recognize DRRI Original Cables. That means that you'll have the full force of the DRRI Manufacturer
