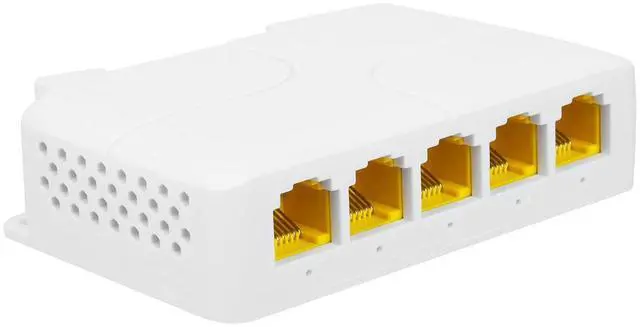

REVODATA 4 Port Gigabit 90W PoE Extender, 10/100/1000 Mbps IEEE802.3af/at/bt PoE Repeater 100/250 Meter Extend, 4 PoE Output, Plug and Play, Wall/DIN Rail Mounting PoE Amplifier (POE5006G)

Note:

1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.

2. Please don't place any heavy thing on the PoE extender;

3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;

Overview:
90W PoE Extender is a cost effective way to extend the Ethernet network range beyond 250m (max), delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 250m while complying with IEEE 802.3 af/at/BT PoE and Data standards. The 90W PoE Extender support 10/100/1000Mbps data rates and delivers 802.3 af/at/bt power levels, up to 60W and 30W, The PoE Extender does not require local power and is powered via the PoE input. Extended PoE installation range by additional 250m.

Specification:
PoE input: 1 RJ45 port
PoE output: 4 RJ45 port
Input power: 90 Watts Max
Output power: 30W and 60W (max)
Ethernet Rate: 10/100/1000Mbps
Network Medium: Cat5 or better UTP cable (less than 100m)
Repeater Mode: Store and forward
MAC Address Table: 4K
Packet Buffer Memory: 128 Byte
Switching Capacity: 8000 Mbps
PoE Standard: IEEE 802.3 af/at/BT
PoE Cable Core: 1/2+, 3/6-, Mode A, End-Span
Power Supply Type: Mode A, End-Span
Network Protocol: IEEE 802.3 i-10BASE-T, IEEE
802.3 u: 100BASE-TX, IEEE 802.3 x-Flow Control, IEEE 802.3 at/BT-Power over Ethernet
Regulation Compliance: IEEE 802.3 af/at/BT, RoHS Compliant, CE, FCC
EMC: FCC Part15, Class B
Storage Humidity: 5%~90%, No Condensation
Working humidity: MAX to 90%, non-condensation
MTBF: 100, 000h at 25
Operating temperature: -10~45
Working temperature: -35~ 75
Dimension: 81 x 51 x 23mm (L*W*H)
Weight: 60g

Package Contents:
1 x 4 Port POE Extender (POE5006G)
