$556.99
Meet Your Seller

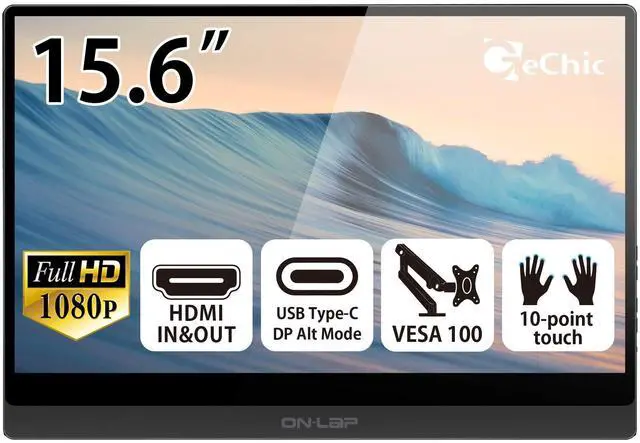

GeChic M505T 15.6 inch FHD 1080p Portable Touchscreen Monitor USB Type-C Input, HDMI Input/Output, DC-in Port, Daisy Chain Display for Conference, Factory, Industry, Gaming, Foldable Screen

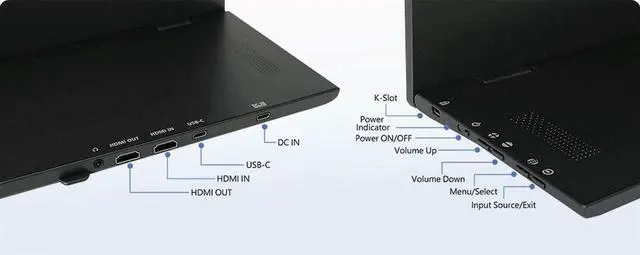

- PORTABLE TOUCH MONITOR: 15.6 FHD 1920x1080 with HDMI, USB Type-C inputs & HDMI output, DC-IN port
- SENSITIVE PROJECTIVE CAPACITIVE TOUCH SCREEN: Support ten-finger multi-touch and wet finger operation
- CUSTOM TOUCH SENSITIVITY: Adjust the sensitivity with different touch media to meet your needs
- DAISY CHAINING WITH MULTIPLE MONITORS: GeChic M505T can be looped up to 14 units through HDMI input and output
- SMART FOLDABLE DESIGN: Integrating the functions of input/output ports, OSD buttons in screen and I/O docking combined base with hinges. Supporting from 40° to 85° stepless viewing angles
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
GeChic M505T Portable
Touchscreen Monitor
Panel: 15.6 ( 16:9 ) wide
Active Area: 344mm*194mm (WxH)
Pixel Pitch: 0.179 mm (H) * 0.179 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M
Colors Brightness: 250 (cd/m²) (Typical)
Contrast: 700:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touch Input: Finger or passive stylus( Diameter of Touch Point 6.0 mm)
Operation System: Windows 10
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60Hz)
Supported resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz) 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI, USB Type-C(DP 1.2 )*1
Video Output: HDMI-A*1 (HDMI
LOOP: Up to 14 monitors) The number of monitor loop depends on different HDMI cable, HDMI Video signal and other variable factors. The actual units of the monitor loop may more or less than 14 pcs.
USB Output: No
HDCP Support: Yes USB-C
Power Delivery Support: No
Audio Output: Earphone jack ( 3.5 mm mini jack)
Speaker: 1.5W (Max. )
X2 Rating Power: 5V- 2.0A
Connectivity: HDMI-IN *1 HDMI-OUT *1 USB Type-C (DP 1.2 ) *1
Cabinet Colors:
Front: Black
Back: Black
Dimension (WxHXD): Display
top cover: 364mm*250mm* 7.2 mm
I/O Base: 364mm*135mm* 10.7 mm
Weight: 1145g (monitor)
Accessories in package: HDMI-A Video Cable( 1.2 m)*1 USB Type-C Video Cable( 1.0 m)*1 USB-A to USB-C Power and Touch Signal Cable( 1.2 m)*1 5V 2A Adapter
Touchscreen Monitor
Specifications
:Panel: 15.6 ( 16:9 ) wide
Active Area: 344mm*194mm (WxH)
Pixel Pitch: 0.179 mm (H) * 0.179 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M
Colors Brightness: 250 (cd/m²) (Typical)
Contrast: 700:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touch Input: Finger or passive stylus( Diameter of Touch Point 6.0 mm)
Operation System: Windows 10
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60Hz)
Supported resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz) 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI, USB Type-C(DP 1.2 )*1
Video Output: HDMI-A*1 (HDMI
LOOP: Up to 14 monitors) The number of monitor loop depends on different HDMI cable, HDMI Video signal and other variable factors. The actual units of the monitor loop may more or less than 14 pcs.
USB Output: No
HDCP Support: Yes USB-C
Power Delivery Support: No
Audio Output: Earphone jack ( 3.5 mm mini jack)
Speaker: 1.5W (Max. )
X2 Rating Power: 5V- 2.0A
Connectivity: HDMI-IN *1 HDMI-OUT *1 USB Type-C (DP 1.2 ) *1
Cabinet Colors:
Front: Black
Back: Black
Dimension (WxHXD): Display
top cover: 364mm*250mm* 7.2 mm
I/O Base: 364mm*135mm* 10.7 mm
Weight: 1145g (monitor)
Accessories in package: HDMI-A Video Cable( 1.2 m)*1 USB Type-C Video Cable( 1.0 m)*1 USB-A to USB-C Power and Touch Signal Cable( 1.2 m)*1 5V 2A Adapter
