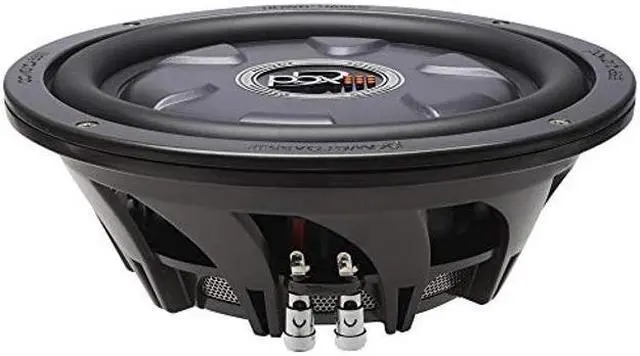

PowerBass XL-1040TD 10" DVC Shallow Mount Subwoofer

New PBX logo dust cap 10" Shallow Mount Dual 4-Ohm Subwoofer 350 Watts RMS/700 Watts Max Proprietary Single Piece Injection Molded Flat Cone Design High Roll Santoprene (r) Surround 2.0" Vented KSV Voice Coil Former Perimeter Aero-Vent Voice Coil Cooling Vents Proprietary Non Resonance Polycarbonate/Glass Fiber Basket Chrome Push Terminals Optimally Designed for Small Sealed Enclosures
Subwoofer Frequency Range: 35Hz - 500Hz
Inputs: Dual
Coil Fs: 35hz
Cutout Diameter: 9 5/16 in
BL: 14.693
Nominal Impedance: single 4-ohm
Voice Coil Size: 2 in
Material: Injection molded
Polypropylene Magnet Size: 116 oz
Sensitivity (1W / 1M): 82.9 dB
Mounting Depth: 3.4"
Xmax: 7.5 mm
Spl: 82.9 db
No: 0.123 %
Qts: 0.487
Qes: 0.577
Qms: 3.655
Mms: 164.056 g
Cms: 127.039 uM/N
Vas: 21.02
Ltr SD: 346.360 sqCM
Test Impedance: 3.2 -ohm
VC Impedance: 4-ohm
Size: 10" shallow
Sensitivity: 82.9 dB
Frequency Response: 35Hz - 500Hz
Voice Coil Size: 2"
Power Handling (RMS/Peak): 350 / 700 watts Owners Manual Cutout Template Waterproof design IPX7 Bluetooth 5.0 Chip provides 30Ft. of wireless range Dual 1500mAh Rechargeable Battery's provide 10 hours of music playback TWS True Wireless Stereo SPLIT the BT-200 into 2 speakers for Modular Stereo Sound Dual Passive Radiators for enhanced Bass Response Rubber Bumper Cover for Rugged Protection. Dual USB-A to USB-C Charge Cable included Bluetooth, Aux & USB Inputs AM/FM & Weather Band RDS Compatible Three Zone RCA Output + Dedicated Subwoofer Output User Adjustable Equalizer with Style Presets Built-in Subwoofer Crossover Built-in High Pass Crossover 3" Full Color TFT Screen 50W RMS x 4 Built-in Class D Amplifier Video input for use with back up camera (camera not included) Marine Rated Water Tight Face Works with most aftermarket dash kits for "square" mounting 6 Speaker 250 watt Amplified Bluetooth Powersports Soundbar IPX6 Rated 2 x 3.5" Square Poly Cone Woofers 2 x 3" Full Range Marine Grade Poly Cone Speakers 2 x 1" SD Mylar Tweeters Heavy Duty Extruded Aluminum Water Tight Housing LED back-lit Control Panel LED Visual Notifications Audible Power On/Off Notifications Built In DSP Processor Bluetooth and Wired RCA Inputs 2 Volt RCA Line Output Auto Turn On/Off Circuit Waterproof Wire Loom Connectors Universal L-Bracket or Stud Bolt-In Mounting System Included Universal Top or Bottom Mount Clamp Style Brackets (Sold Separately XL-SBCLAMP2, XL-SBTCLAMP, XL-SBSCLAMP) Optional Wireless Remote Control (Sold Separately XL-SBCONRF coming soon) 8 Speaker 300 watt Amplified Bluetooth Powersports Soundbar IPX6 Rated 6 x 3" Full Range Marine Grade Poly Cone Speakers 2 x 1.25" SD Mylar Tweeters Heavy Duty Extruded Aluminum Water Tight Housing LED backlit Control Panel LED Visual Notifications Audible Power On/Off Notifications Built In DSP Processor w/Distortion Limiter Bluetooth and Wired Inputs 3 Volt Line Output Auto Turn On/Off Circuit Waterproof Wire Loom Connectors Universal L-Bracket Mounting System Included Universal Top or Bottom Mount Clamp Style Brackets (Sold Separately XL-SBCLAMP, XL-SBTCLAMP, XL-SBSCLAMP) Secondary Dash Mountable Controller Pad (Sold Separately XL-SBCON) Soundbar / POD Square Clamps Perfect for Golf Cart Applications For use with the XL Soundbars Fits 0.75", 1.0", 1.25" square bars Non-corrosive black powder coating hardware included Soundbar / POD Thin Mount Clamps Perfect for Under Roof Mount Applications For use with the XL Soundbars Fits 1.5", 1.75", 2" round bars Non-corrosive black powder coating hardware included Products Forum Guides Site Map OE Series Fitment Guide Support Contact Media & Downloads Dealers News PowerBass Garage Terms Of Use Privacy Policy About Us
