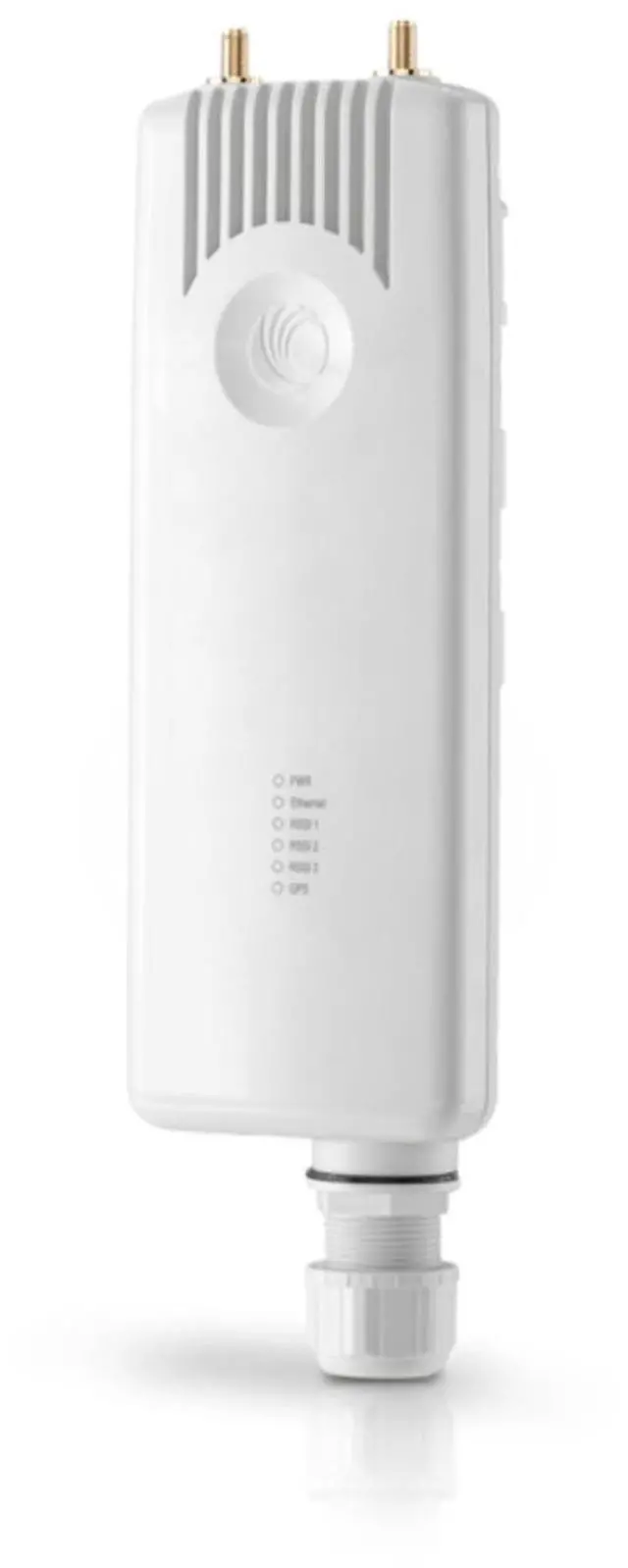

Cambium Networks - C058910C122A - ePMP Force 300 CSM Radio, 5GHz Connectorized Subscriber Module, FCC. US Power Cord

Cambium ePMP Force 300 CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data. The Force 300 CSM offers a versatile solution enabling a wide variety of deployment models including high-gain parabolic dishes. The ePMP Force 300 CSM supports channel size configurations from 20 MHz up to 80 MHz and modulations up to 256 QAM.
Product

Specifications

: Channel
Spacing: Configurable in 5 MHz
Frequency Range: Wide Band Operating 4.910 - 5.970
MHz (Note: Allowable frequencies and bands are dictated by individual country regulations
Channel Width: 20 / 40 / 80
MHz MAC Layer: Cambium
Proprietary Physical Layer: 2x2 MIMO/OFDM
Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNM
Pv2c, NTP, STP, IGMP, SSH 1Q with 802.1 p priority
ARQ: Yes Nominal Receive Sensitivity (w/FEC) @20
MHz Channel: MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @40
MHz Channel: MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @80
MHz Channel: MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Modulation Levels (adaptive): MCS0 (BPSK) to MCS9 (256QAM5/6)
Transmit Power Range: 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
Surge Suppression: 1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
Environmental Temperature:
Weight: Wind
Survival: Dimensions (Dia x Depth)
Pole Diameter Range Power Consumption: Input
Voltage: 30 Watts nominal (14 to 30V range)
Encryption: 128-bit AES (CCMP mode)
Frequency Range: 4.910 5.970 MHz
Antenna Type: Connectorized
Connectors: 2 x 50 ohm, RP-SMA (Reverse Polarity SMA) Compatible with RF-Elements TwistPort Adaptor for ePMP
