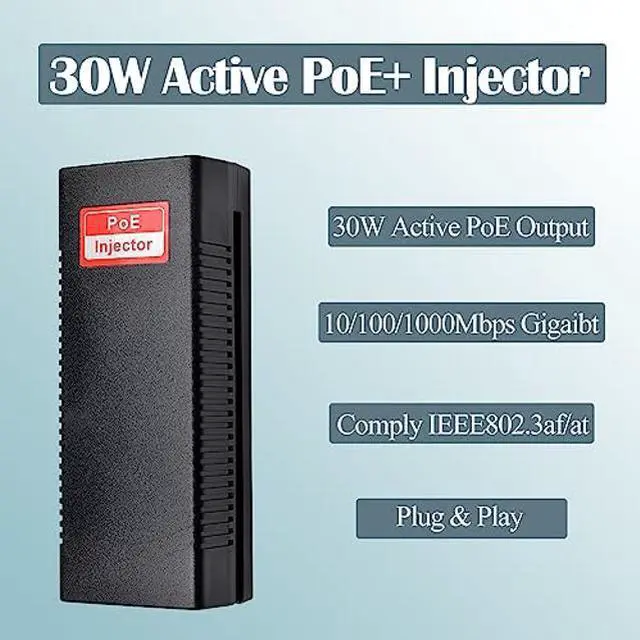

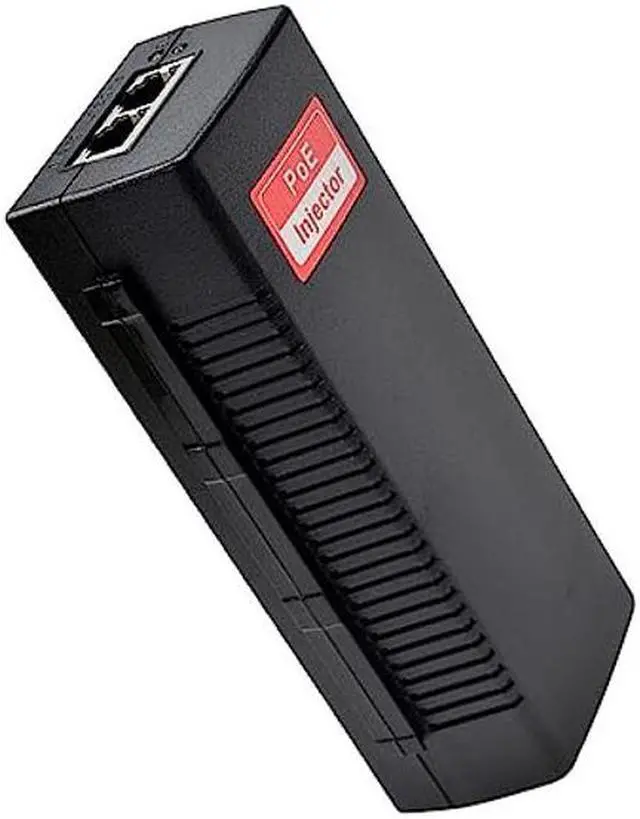

Revotech 30W PoE Injector Adapter Gigabit, IEEE 802.3 at/af 48V DC Active POE+ RJ-45 10/100/1000Mbps, up to 100 Meters (328 Feet), Plug and Play
- [(30W PoE+ Injector)] Up to 30W PoE power supply, equipped with 1 Gigabit Ethernet port input and 1 Gigabit PoE + Ethernet port output.
- [(Strong Compatibility)] Comply with IEEE 802.3at, compatible with IEEE 802.3af or traditional PoE applications, safe low-power devices only receive the power they need.

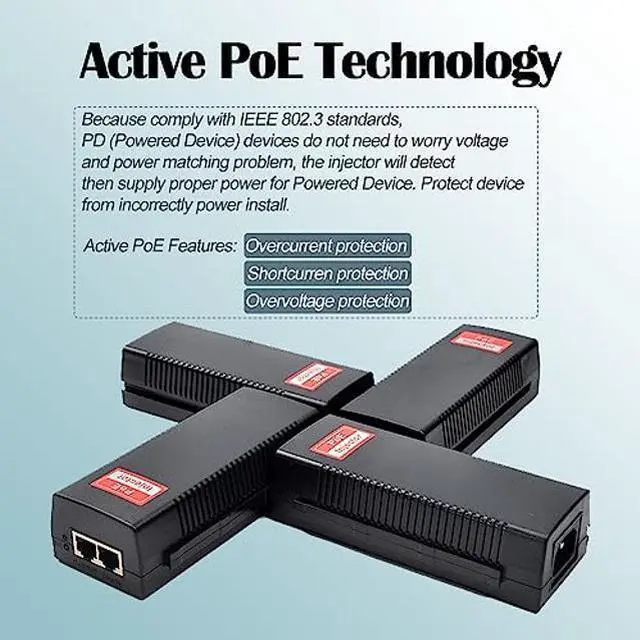

- [(Auto-sensing Technology)] Provides up to 30 watts of power for 802.3at PoE devices, and is backward compatible with 802.3af PoE devices. It can detect both POE and non-POE devices. For a POE device that conforms to the 802.3at or 802.3af standard, it will communicate with the device and provide an appropriate power source. For non-standard POE equipment, it will automatically detect and actively shut down to protect the equipment.

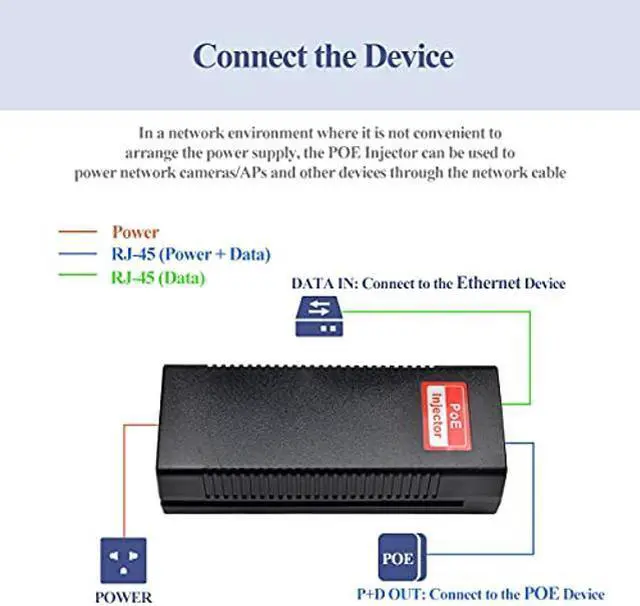

- [(Plug and Play without Setting)] Only need to connect a PoE network device, which is suitable for most installation scenarios. Whether you want to use it with an IP camera at home or at work, use a VoIP phone in a meeting room, or use it to provide
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OVERVIEW:
The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W, PSE802G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3 at PoE standard and is backwards to IEEE 802.3 af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11 n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Model: PSE802G
Standards Compliance: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u 100Base-Tx Fast Ethernet, IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over Ethernet, Connector: RJ-45 10/100/1000 Mbps
Pin Assignment and Polarity: 1/2(+), 3/6 (-)
Output Power Voltage: 54 Vdc Maximal
Power: 30 Watts Max
Input Power AC Input Voltage: 100~240 VAC
Requirements AC Input Current: 0.8A @ 100-240 VAC
AC Frequency: 50~60 Hz

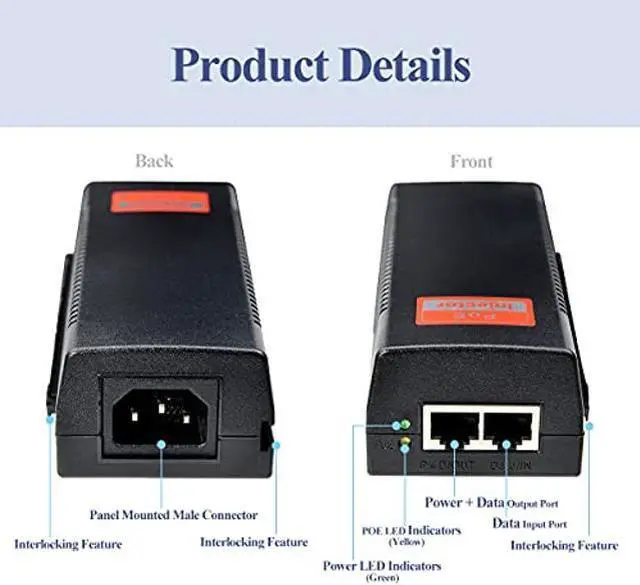

Indicators: AC Power (Orange) / PoE (Green)
Operating Temperature: -10~50degC
Storage Humidity: Maximum 95%, Non-condensing
Regulatory: RoHS Compliant, CE/FCC, Safety Approvals
Dimensions (L x W x H): 144mm x 57mm x 40mm ( 5.62 in x 2.24 in x 1.57 in)
Weight: 350g ( 0.77 lbs)
Package Content:
1 x POE Injector
1 x Power Cable
1 x Quick Installation Guide
The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W, PSE802G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3 at PoE standard and is backwards to IEEE 802.3 af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11 n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Model: PSE802G
Standards Compliance: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u 100Base-Tx Fast Ethernet, IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over Ethernet, Connector: RJ-45 10/100/1000 Mbps
Pin Assignment and Polarity: 1/2(+), 3/6 (-)
Output Power Voltage: 54 Vdc Maximal
Power: 30 Watts Max
Input Power AC Input Voltage: 100~240 VAC
Requirements AC Input Current: 0.8A @ 100-240 VAC
AC Frequency: 50~60 Hz
Indicators: AC Power (Orange) / PoE (Green)
Operating Temperature: -10~50degC
Storage Humidity: Maximum 95%, Non-condensing
Regulatory: RoHS Compliant, CE/FCC, Safety Approvals
Dimensions (L x W x H): 144mm x 57mm x 40mm ( 5.62 in x 2.24 in x 1.57 in)
Weight: 350g ( 0.77 lbs)
Package Content:
1 x POE Injector
1 x Power Cable
1 x Quick Installation Guide
