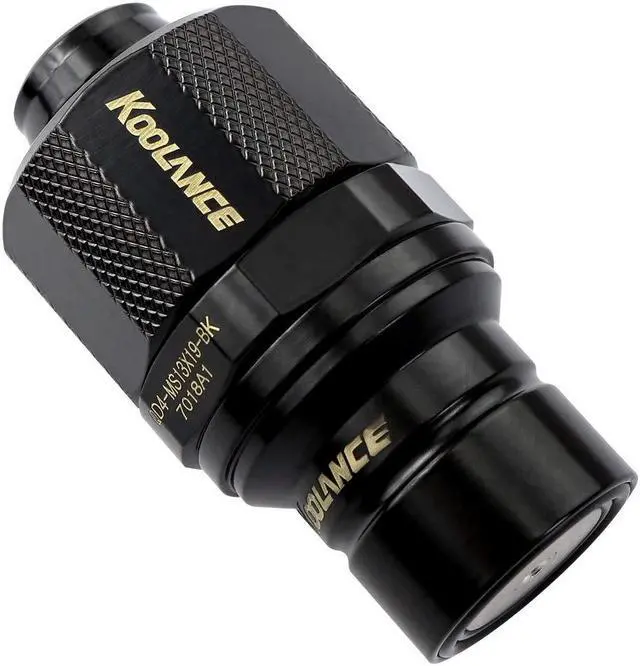

Koolance QD4-MS13X19-BK QD4 Male Quick Disconnect No-Spill Coupling, Compression for 13mm x 19mm (1/2in x 3/4in) *Black*
- Koolance patented quick disconnect no-spill coupling with automatic shutoff.
- 13mm (1/2in) ID, 19mm (3/4in) OD male straight connection with compression fitting.
- It will only fit a Koolance QD4 female quick disconnect.
- After pulling the ring on the female QDC side, the quick-disconnect fittings will separate.
- Liquid on both sides will be automatically obstructed with approximately 0.2ml freed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Koolance patented quick disconnect no-spill coupling with automatic shutoff. 13mm (1/2in) ID, 19mm (3/4in) OD male straight connection with compression fitting. It will only fit a Koolance QD4 female quick disconnect.
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2 ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5 kgf/cm2 (7psi).
Additional
Wetted Materials: Brass, Stainless Steel, EPDM
Max Temperature Tolerance: 80°C (176°F)
Max Pressure Tolerance @ 25°C: 8kgf/cm2 ( 113.8 psi)
Min Storage Temperature (*No Freezing): -20ºC (-4ºC)
Seal Material: EPDM (Water/Glycol Liquids)
Min Pressure Tolerance @ 25°C: - 1.0 kgf/cm2 (-14psi)
Max No-Spill Pressure: 0.5 kgf/cm2 (7psi)
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2 ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5 kgf/cm2 (7psi).
Additional
Specifications
Wetted Materials: Brass, Stainless Steel, EPDM
Max Temperature Tolerance: 80°C (176°F)
Max Pressure Tolerance @ 25°C: 8kgf/cm2 ( 113.8 psi)
Min Storage Temperature (*No Freezing): -20ºC (-4ºC)
Seal Material: EPDM (Water/Glycol Liquids)
Min Pressure Tolerance @ 25°C: - 1.0 kgf/cm2 (-14psi)
Max No-Spill Pressure: 0.5 kgf/cm2 (7psi)
