$306.99
Meet Your Seller

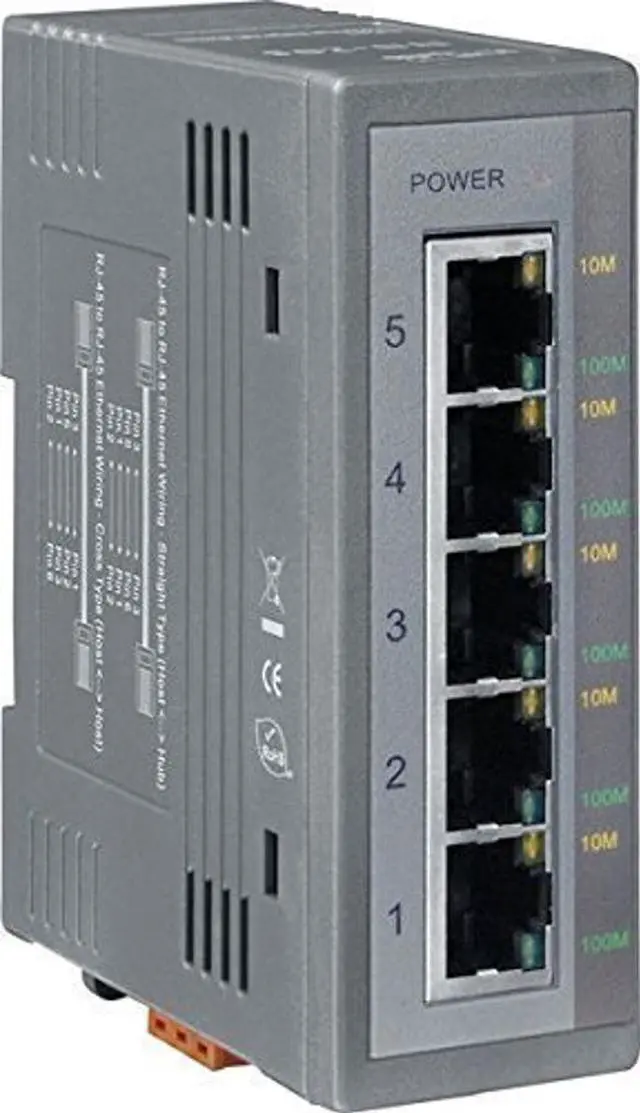

ICP DAS NS-205 10/100 Mbps speed Unmanaged 5-Port Industrial Ethernet Switch with Din Rail Mount
- EASY-TO-USE: 5-port unmanaged industrial Ethernet switch with plug-and-play and 10/100 Mbps fast speed; Each port supports speed auto negotiation. Complies with IEEE802.3, 802.3u, 802.3x
- VERY ROBUST AND DURABLE - can be used in extreme industrial environments. Supports a wide range of operating temperatures from -40C ~ +75C (-40F ~ 167F).
- SAVES SPACE - The compact size (width is only 1.3 inches) makes it perfect for use in places where space is important. Can easily fit in tight spaces like control panels.
- FAST SPEED WITH LOW POWER CONSUMPTION - Full duplex IEEE 802.3x and half duplex back pressure flow control. Integrated look-up engine with dedicated 2048 unicast MAC addresses; Reverse Polarity Protection; Power Consumption: 2.5 watts; Data Transfer Rate: 100 Megabits Per Second
- EASY INSTALLTION AND WORKS FOR EVERY APPLICATION - DIN-Rail mountable and has a terminal block for DC power. Supports input voltage range of +10 ~ +30VDC (Non-isolation).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NS-205 has 5 Ethernet switching ports that support 10/100 base-tx, with a 10/100M auto-negotiation feature and auto MDI/mdi-x function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45. It contains" soft start" function with overload protection, high-low voltage protection. The width of the NS-205 is just 33 mm, so it can be used where space is important.
