VSDISPLAY DVI VGA Audio LCD Controller Board Work for 17" 4:3 1280x960 DV170YGM-N10 DV170YGZ-N10 LVDS LCD Screen
- Fit for 17inch 1280x960 4:3 LCD:DV170YGM-N10,DV170YGZ-N10
- Can use it to DIY LCD monitor which have LCD DV170YGM-N10/ DV170YGZ-N10
- Come In Standby Model When Not Input Signal Standby Model <1W
- Request Input Power Adapter: 12Vdc 2A or More than 2A. Recommend use : VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output,Power Supply . Recommend use speaker : VSDISPLAY Speaker 8ohm 2W 70mmx33mmx15mm 4Pin Cable for LCD Controller Board M.NT68676
- Packing list: 1× VGA DVI LCD Controller Board 1× Inverter Board 1× LVDS Signal Cable 1× Keyboard With Cable 1× Screw And Nut For GND Connection (Help to notice there is no power adapter and speaker in this packing list, you can get them from VSDISPLAY store if you need)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board:

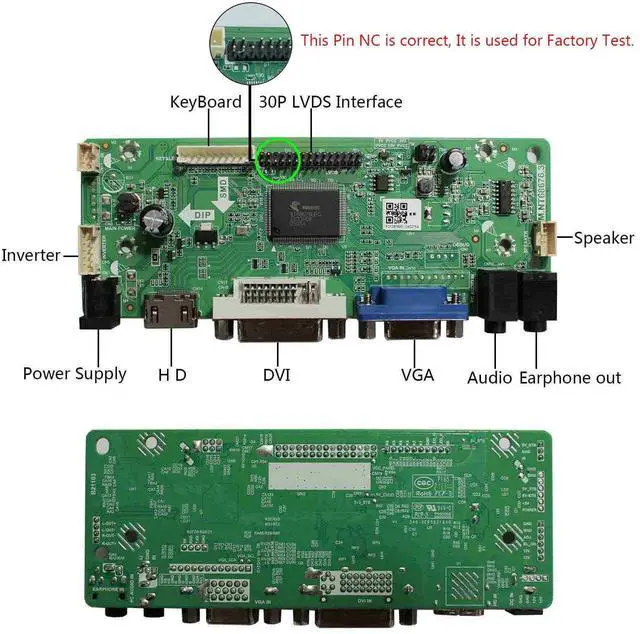

DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

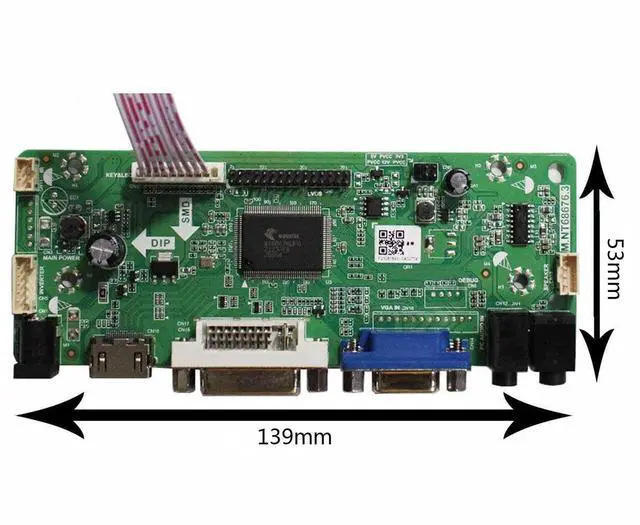

Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x960
DV170YGM-N10 /DV170YGZ-N10

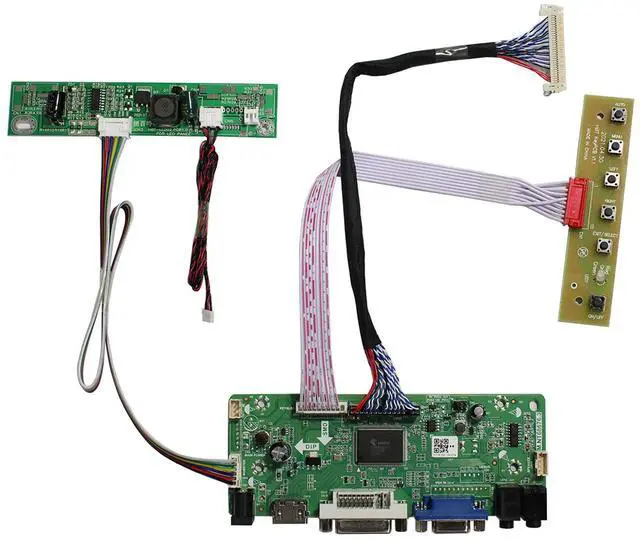

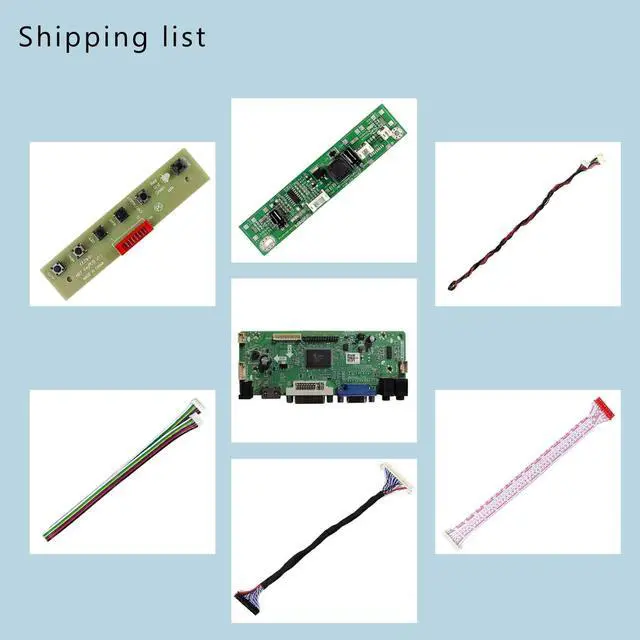

Packing list:
1× VGA DVI LCD Controller Board
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
1× Screw And Nut For GND Connection
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x960
DV170YGM-N10 /DV170YGZ-N10
Packing list:
1× VGA DVI LCD Controller Board
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
1× Screw And Nut For GND Connection
