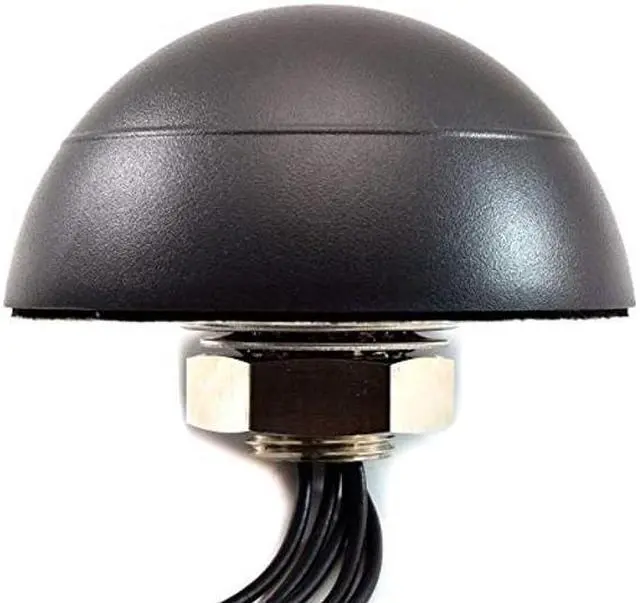

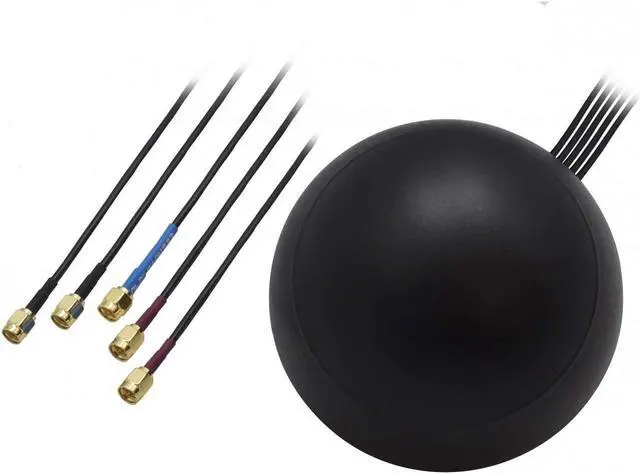

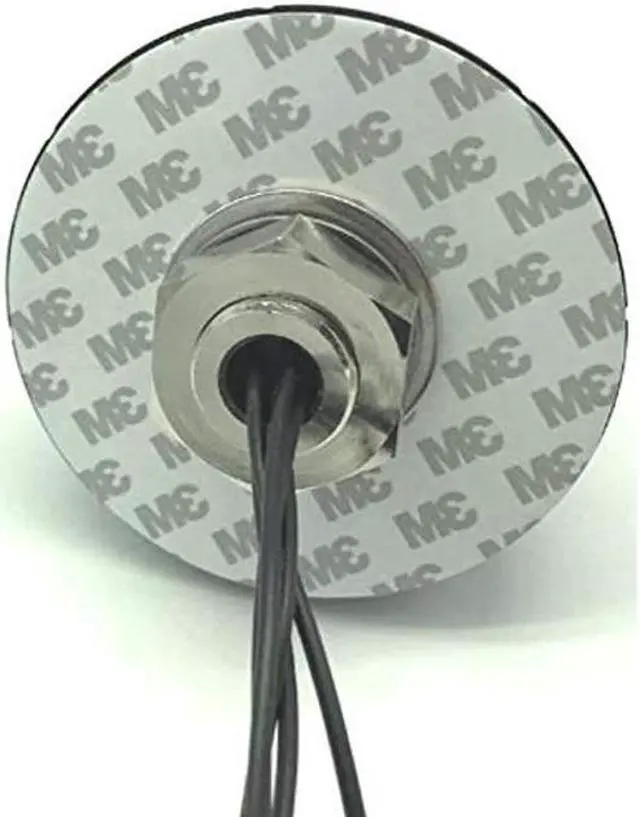

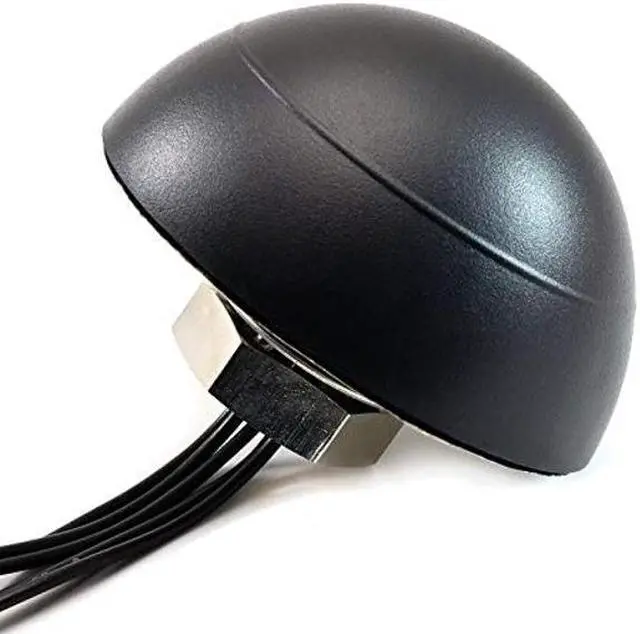

Teltonika PR1KCO28 GNSS/LTE MIMO/Wi-Fi MIMO Antenna Combo; Compatible with RUT241, RUT200, RUT240, RUT951, RUTX09, RUT955,RUT956, RUT950, RUTX11, RUTX14, RUTX12, RUTXR1, RUTX10, and RUT360 Routers
- GNSS Antenna frequency range: 1575.42-1610 MHz
- LTE MIMO Antenna frequency range: 698-960/1710-2690 MHz
- Wi-Fi Antenna frequency range: 2400-2483.5/4900-5825 MHz
- IP67 Radome Ingress Protection rating
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Teltonika PR1KCO28 GNSS/LTE MIMO/Wi-Fi MIMO Antenna Combo; Compatible with RUT241, RUT200, RUT240, RUT951, RUTX09, RUT955, RUT956, RUT950, RUTX11, RUTX14, RUTX12, RUTXR1, RUTX10, and RUT360 Routers
Key Features:
- GNSS Antenna frequency range: 1575.42 -1610 MHz
- LTE MIMO Antenna frequency range: 698-960/1710-2690 MHz
- Wi-Fi Antenna frequency range: 2400- 2483.5 /4900-5825 MHz
- IP67 Radome Ingress Protection rating
GNSS Antenna:
- Frequency Range: 1575.42 -1610 MHz
- Polarization: RHCP
- Impedance: 50
- LNA Gain: 28±2 dB
- LNA Noise Figure: <1.5 dB
LTE MIMO Antenna:
- Frequency Range: 698-960/1710-2690 MHz
- Polarization: Linear
- Gain: 3 dBi
- V. S. W.
R: <3.0
- Impedance: 50
- Connector: 2x SMA Male
WiFi MIMO Antenna:
- Frequency Range: 2400- 2483.5 /4900-5825 MHz
- Polarization: Linear
- Gain: 2 dBi
- V. S. W.
R: <2.5
- Impedance: 50
- Connector: 2x RP SMA Male
Mechanical/Environmental
- Mounting Method: Screw
- Radome Ingress Protection rating: IP67
- Radome Material: ABS
- Weight: 1.1 pounds
- Housing Dimensions: 4.3 x 2.16 (radius)
- Cable: 5x RG174 ( 9.8 feet)
Key Features:
- GNSS Antenna frequency range: 1575.42 -1610 MHz
- LTE MIMO Antenna frequency range: 698-960/1710-2690 MHz
- Wi-Fi Antenna frequency range: 2400- 2483.5 /4900-5825 MHz
- IP67 Radome Ingress Protection rating
Specifications
:GNSS Antenna:
- Frequency Range: 1575.42 -1610 MHz
- Polarization: RHCP
- Impedance: 50
- LNA Gain: 28±2 dB
- LNA Noise Figure: <1.5 dB
LTE MIMO Antenna:
- Frequency Range: 698-960/1710-2690 MHz
- Polarization: Linear
- Gain: 3 dBi
- V. S. W.
R: <3.0
- Impedance: 50
- Connector: 2x SMA Male
WiFi MIMO Antenna:
- Frequency Range: 2400- 2483.5 /4900-5825 MHz
- Polarization: Linear
- Gain: 2 dBi
- V. S. W.
R: <2.5
- Impedance: 50
- Connector: 2x RP SMA Male
Mechanical/Environmental
Specifications
:- Mounting Method: Screw
- Radome Ingress Protection rating: IP67
- Radome Material: ABS
- Weight: 1.1 pounds
- Housing Dimensions: 4.3 x 2.16 (radius)
- Cable: 5x RG174 ( 9.8 feet)
