7-Ports USB PCIe Card Super Speed (5X USB 3.0 A,2X USB-C) PCIe Card Desktop PC Internal Hub for Windows 10/11

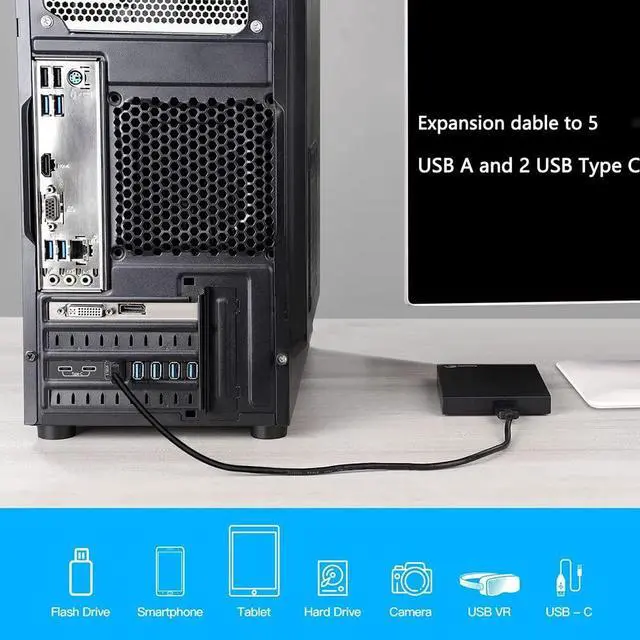

The USB PCIe Card can be upgraded from the PCIe slot inside the main unit to 7 USB 3.0 ports, providing a multi-device connectivity solution for your computer system.

Feature:

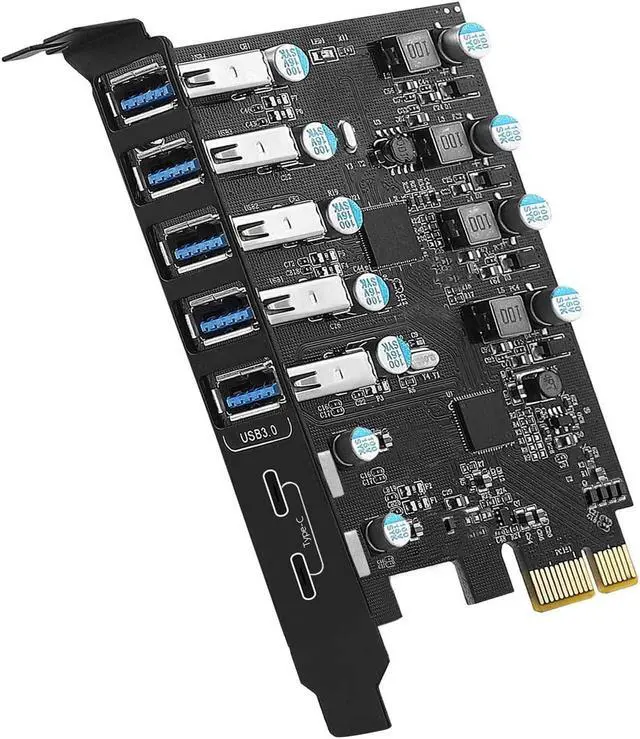

1. The card provide 5 USB Type-A and 2X USB Type-C ports.

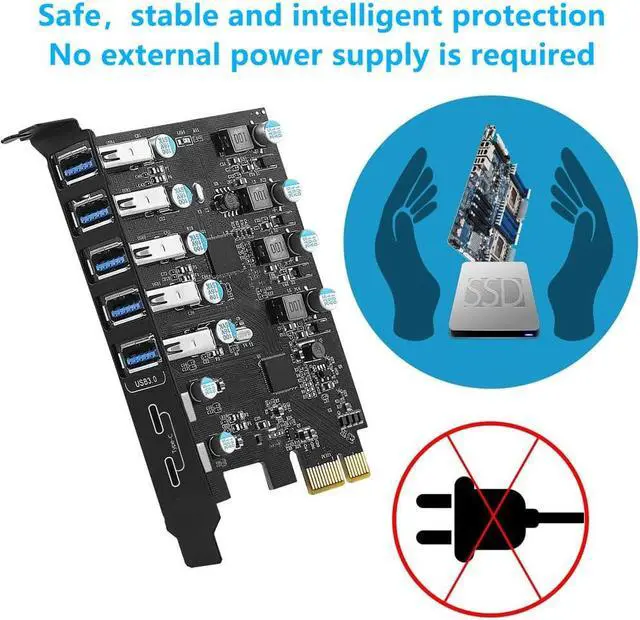

2. Get power directly from the PCI-E slot, no need to add additional power adapters

3. Support UASP, speed 70% faster than traditional USB 3.0.

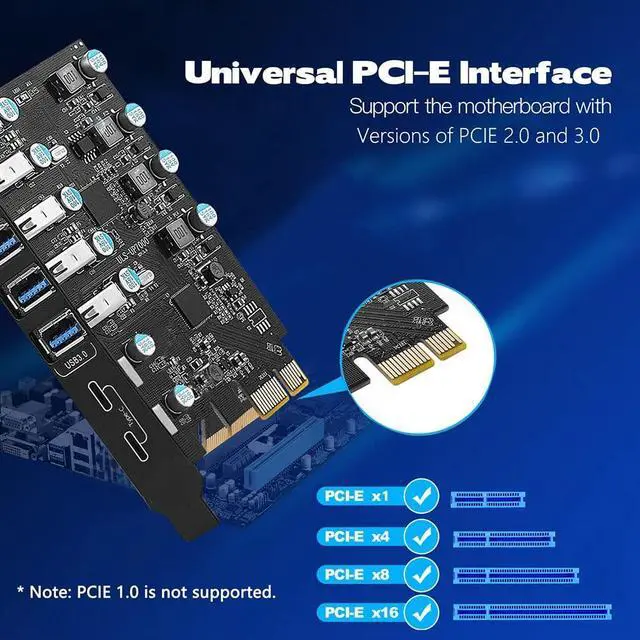

4. Compatible with pcie x1 to x16 slot.

5. The high-performance chipset Fresco Logic 1100 provides a stable and reliable USB 3.0 connection with the computer.

6. The PCIe card conforms to the USB 3.0 specification and is compatible with the USB 2.0 and 1.1 specifications. The data transfer rate of USB 3.0 at 5Gbps is 5X that of USB 2.0.

System

1. Windows XP/7/Vista/Server. CD drivers need to be installed

2. Windows 8 / 8.1 / 10/Mac OS 4.1 / 5.1 / 7.1. No driver installation is required.

Note:

1. Not compatible with old PCI.

2. Not equipped with a Low-profile bracket. Not suitable for small computer and server chassis, only for standard or larger large chassis. This PCIe USB card is only available for (width > 4.72 in, height > 0.63 in) expansion Slot on the back of the PC host. Be sure to check the height of the expansion slot on the back of the host computer before choosing. Avoiding the narrow expansion slot of the host computer makes it impossible to plug external USB devices into the port.

3. DP, HDMI, and VGA display conversion function is not supported. ( Displays)

4. To ensure that the card works, it is recommended that you power off the computer before inserting it into the PCI Express slot.

Package Contain

1x pcie usb 3.0 card

1x CD Driver

1x Mounting Screw

1x User Manual
