Uninterruptible Power Supply UPS HAT for Raspberry Pi 5/4B/3B+/3B, Support Power Supply Charge and Power Output at The Same Time, Provides Power Supply via Pogo Pins, with 5V USB Output
- for Raspberry Pi: Uninterruptible Power Supply UPS HAT for Raspberry Pi 4B/3B+/3B. Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi. 5V USB output, convenient for powering other boards

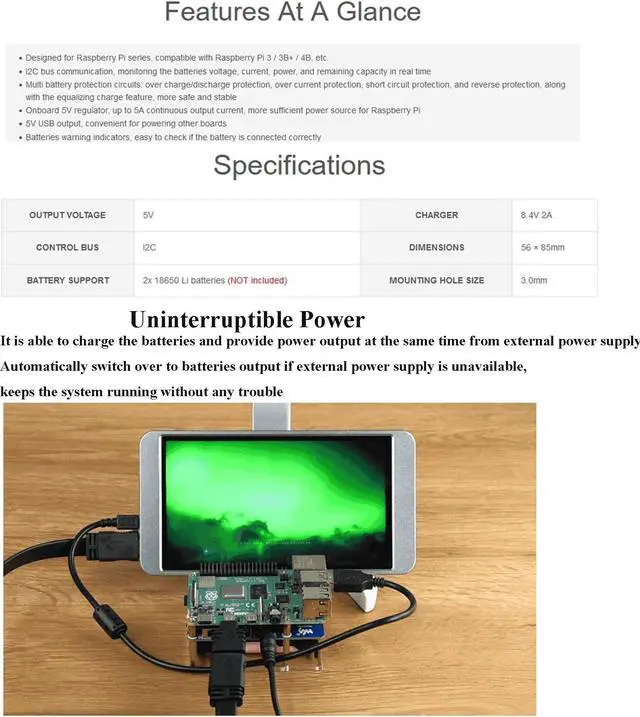

- Uninterruptible Power: It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
- Powering the Raspberry Pi via Pogo Pins: Powering the Raspberry Pi via pogo pins, without using any GPIO resource, compatible with Raspberry Pi 4B / 3B+, etc.

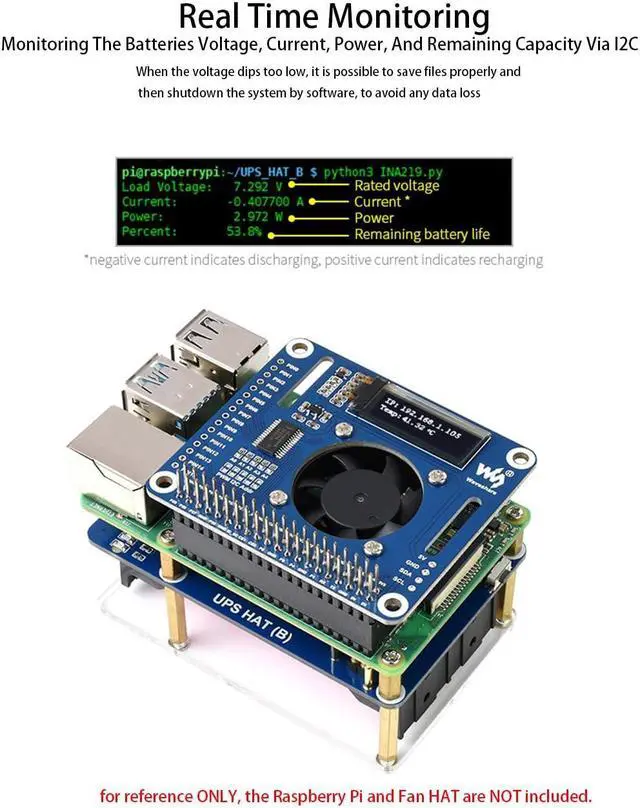

- Real time monitoring: I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time. When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
- Safe and stable circuit design: Protection circuits f
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UPS HAT (B) is compatible with Raspberry Pi 4B/ 3B+, 5A high current, Powering the Raspberry Pi via pogo pins, without using any GPIO resource.

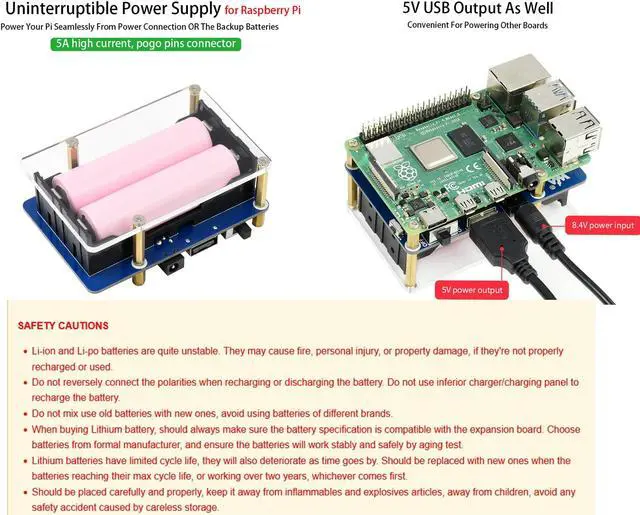

Power your Pi seamlessly from power connection OR the backup batteries
Features
Designed for Raspberry Pi series, compatible with Raspberry Pi 4B/ 3B+, etc.
I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
5V USB output, convenient for powering other boards
Batteries warning indicators, easy to check if the battery is connected correctly
Comes with Online Development Resources and Manual, Please send us Amazon message to get it if necessary.
Powering the Raspberry Pi via Pogo Pins
Powering the Raspberry Pi via pogo pins, without using any GPIO resource, compatible with Raspberry Pi 5 / 4B / 3B+, etc.
Output voltage: 5V
Charger: 8.4V 2A
Control bus: I2C
Battery supported: 18650 Li batteries (NOT included)
Dimensions: 56 × 85mm
Mounting hole: 3.0 mm
Note:
1. The 18650 batteries are NOT included
2. Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported.

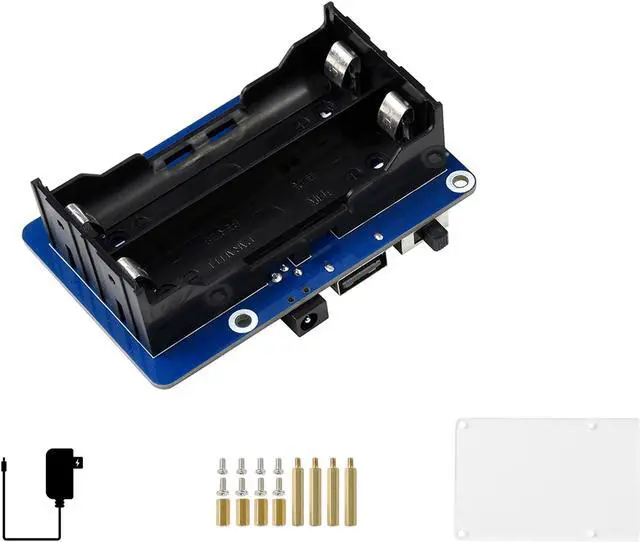

Package Content
UPS HAT (B) x1
8.4V battery charger x1
Acrylic protection panel x1
Screws pack x1
Power your Pi seamlessly from power connection OR the backup batteries
Features
Designed for Raspberry Pi series, compatible with Raspberry Pi 4B/ 3B+, etc.
I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
5V USB output, convenient for powering other boards
Batteries warning indicators, easy to check if the battery is connected correctly
Comes with Online Development Resources and Manual, Please send us Amazon message to get it if necessary.
Powering the Raspberry Pi via Pogo Pins
Powering the Raspberry Pi via pogo pins, without using any GPIO resource, compatible with Raspberry Pi 5 / 4B / 3B+, etc.
Specifications
Output voltage: 5V
Charger: 8.4V 2A
Control bus: I2C
Battery supported: 18650 Li batteries (NOT included)
Dimensions: 56 × 85mm
Mounting hole: 3.0 mm
Note:
1. The 18650 batteries are NOT included
2. Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported.
Package Content
UPS HAT (B) x1
8.4V battery charger x1
Acrylic protection panel x1
Screws pack x1
