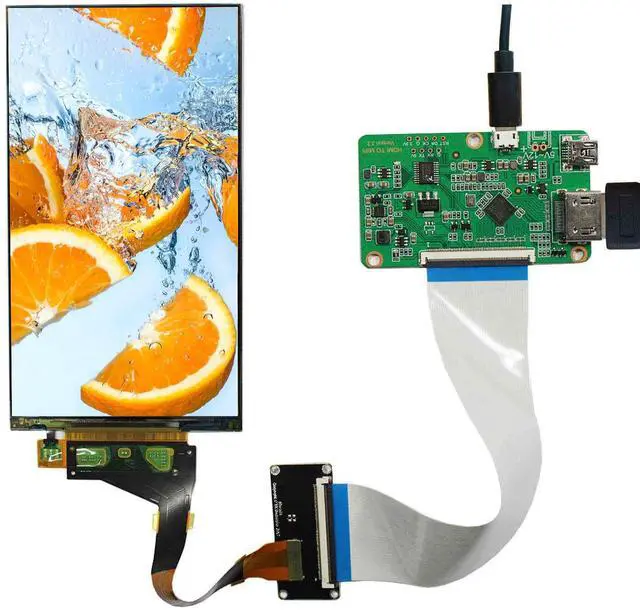

VSDISPLAY 5.5 Inch 1440x2560 LCD Screen 2K LS055R1SX04 with MIPI LCD Controller Board VS-CXMIPI-V1,Fit for AR/VR/HMD/3D Printing 5.5'' Replacement Display Panel
- Specification5.5 inch 1440x2560 2k LCD screen LS055R1SX04;Outline size:70.94 ×128.49×1.45(H×V×D)mm;68.04(W)×120.96(H) mm
- Feature2k LCD screen with 1440x2560 high resolution,small lightweight and it's easy to install
- Widely UsageFit for DIY projects,compatible 3D Printers,usually for 3D printers replacement screen.It also fit for pc rpi,HMD,AR VR etc.
- ServiceAll the products are tested before package and shipment,if any problem of product,please feel free to contact us
- Packing list1× To Mipi LCD Controller Board VS-CXMIPI-V1;1× 5.5inch LS055R1SX04 1440X2560 LCD Screen;1× Signal Cable;1× Converter Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

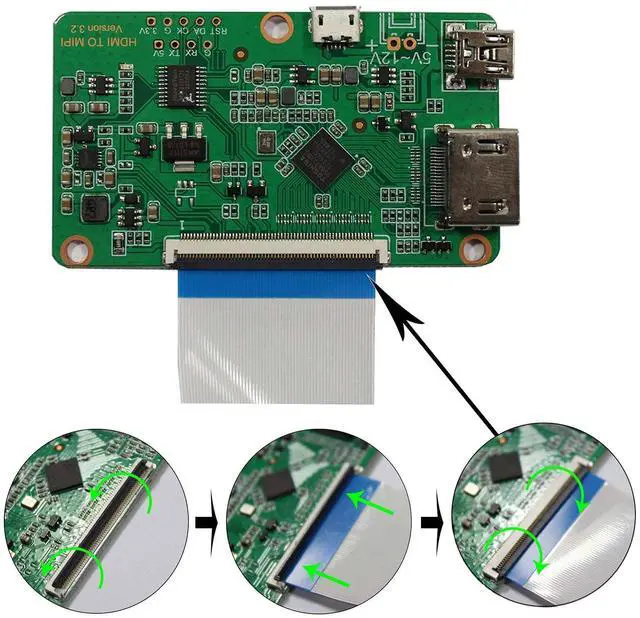

LCD Controller Board:
Board Work for 60Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input:
Audio Output: Speaker Earphone
Apply toPC

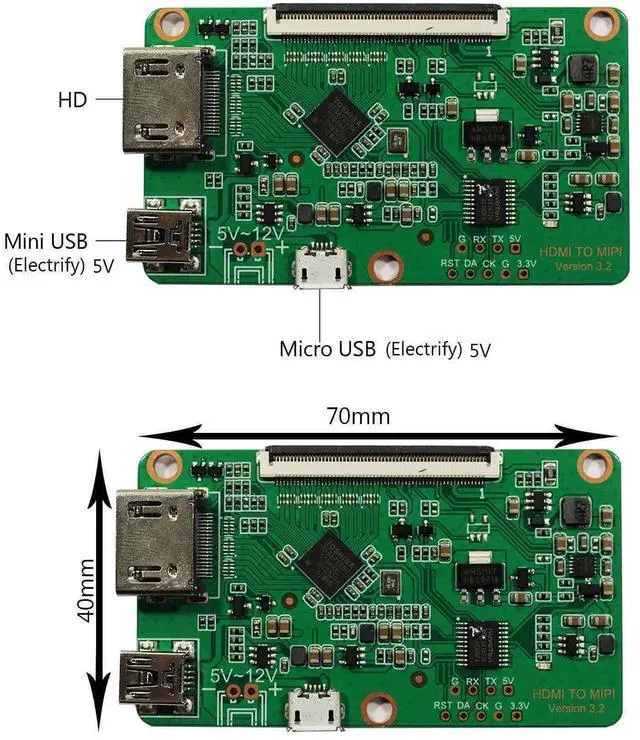

Board Size: 70mm x 40mm x 5mm
5.5" LS055R1SX04 1440X2560 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1440 (RGB) ×2560
Outline Size 70.94 × 128.49 × 1.45 (H×V×D)
Display Area 68.04 × 120.96 (H×V)
Brightness 450 cd/m² (Typ. )
Contrast Ratio 1300:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes), 50 pins, Connector
Backlight WLED
Input Voltage 1.8 / 5.75 /- 5.75V (Typ. )(IOVCC/VSP/VSN)
Note:
This lcd screen (with VS-CXMIPI-V1 Controller Board) can only run at 50hz refresh rate, which can not run at 60hz.

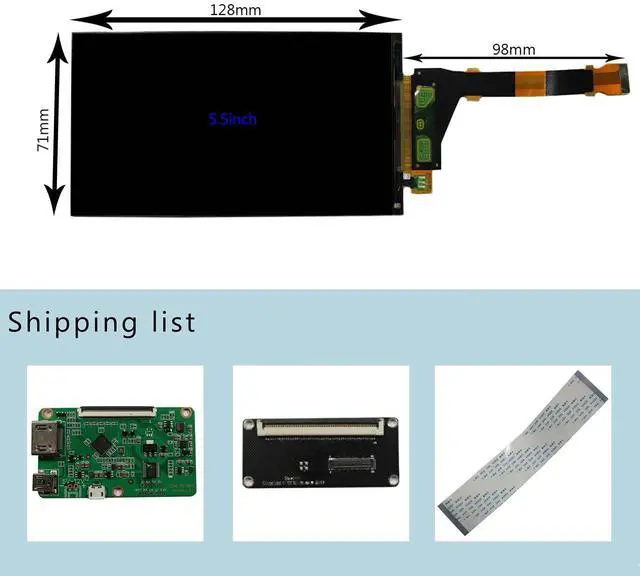

Packing list:
1× To Mipi LCD Controller Board VS-CXMIPI-V1
1× 5.5 inch LS055R1SX04 1440X2560 LCD Screen
1× Signal Cable
1× Converter Board
Board Work for 60Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input:
Audio Output: Speaker Earphone
Apply toPC
Board Size: 70mm x 40mm x 5mm
5.5" LS055R1SX04 1440X2560 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1440 (RGB) ×2560
Outline Size 70.94 × 128.49 × 1.45 (H×V×D)
Display Area 68.04 × 120.96 (H×V)
Brightness 450 cd/m² (Typ. )
Contrast Ratio 1300:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes), 50 pins, Connector
Backlight WLED
Input Voltage 1.8 / 5.75 /- 5.75V (Typ. )(IOVCC/VSP/VSN)
Note:
This lcd screen (with VS-CXMIPI-V1 Controller Board) can only run at 50hz refresh rate, which can not run at 60hz.
Packing list:
1× To Mipi LCD Controller Board VS-CXMIPI-V1
1× 5.5 inch LS055R1SX04 1440X2560 LCD Screen
1× Signal Cable
1× Converter Board
