MakerFocus Wireless Tracker Supports GPS Galileo Multi-System Joint Positioning ESP32-S3 WiFi Bluetooth SX1262 UC6580 with 3000mAh Battery, 915MHz LoRa Antenna, 0.96-inch LCD Display for Meshtastic

About Wireless Tracker:
Wireless Tracker is a development kit based on ESP32-S3FN8. Integrates SX1262 LoRa chipset and UC6580 GNSS chipset to provide fast GNSS solution for IoT. It can track any object and upload the data wirelessly by WiFi, Bluetooth, LoRa

Wireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc

Feature:
1. ESP32-S3FN8+SX1262+UC6580 chipset, supports WiFi, LoRa, Bluetooth, GNSS

2. Low power design of dual frequency multi system based on 22nm technology

3. Support L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning

4. Support Ar duino development environment

5. Onboard WiFi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa and GNSS use

6. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures

7. Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching)

8. Onboard 0.96 -inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information

Parameter:
Master Chip: ESP32-S3FN8
LoRa Chipset: SX1262
GNSS Chipset: UC6580
Frequency: 863-923MHz
Max TX Power: 21 ± 1dBm
Receiving Sensitivity: -139dBm
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Interface: Type-C USB; SH 1.25 lithium battery interface; 2 * IPEX (U. FL) interface
Battery: 3.7V lithium battery power supply
Operating Temperature: -20-70
Dimension: 65.48 * 28.06 * 13.52 mm
-----------------------------------------------------------------------

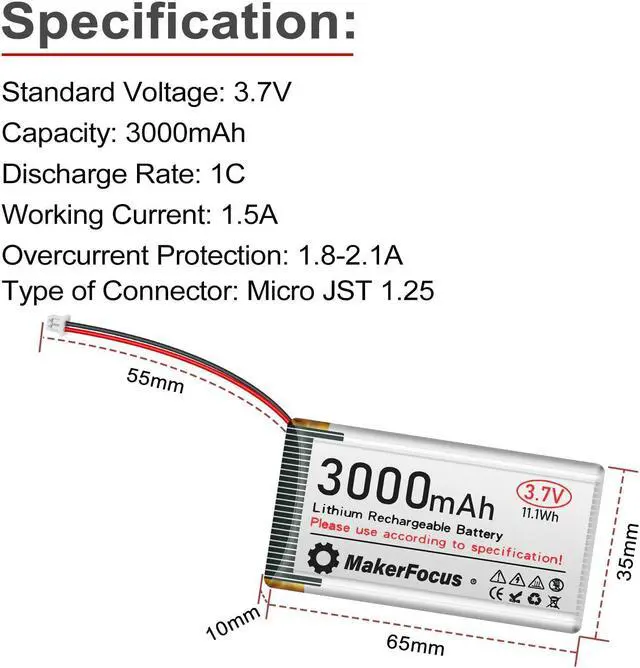

About 3000mAh Battery with Micro JST 1.25 Plug:
Specification:
Standard Voltage: 3.7V
Capacity: 3000mAh
Weight: 194g (4PCS), 48.5 g/1unit
Dimensions(±2mm): 65 * 36 * 10 mm / 2.56 * 1.42 * 0.39 inch (L*W*H)
Discharge Rate: 1C
Working Current: 1.5A
The maximum discharging current: 3C
Overcurrent Protection: 1.8 - 2.1A
Type of Connector: Micro JST 1.25

Standard Charging Method:
Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current 0.05C
-----------------------------------------------------------------------

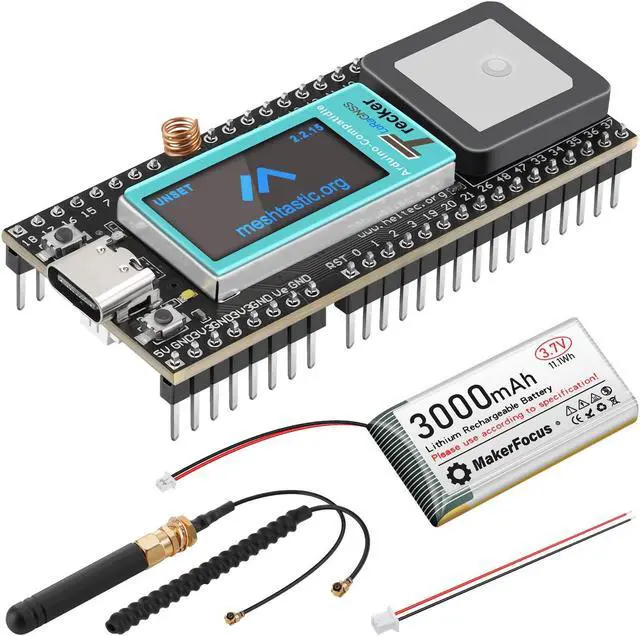

Package Content:
1 * Wireless Tracker
4 * Pin Headers
1 * Antenna
2 * Power Cord
1 * 3000mAh Battery with Micro JST 1.25 Plug
