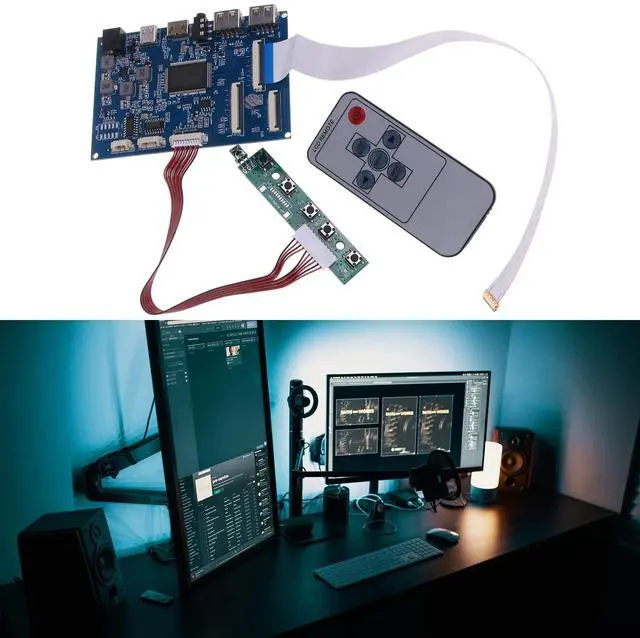

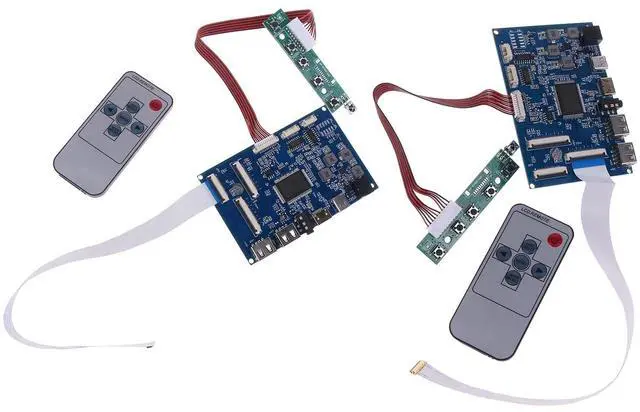

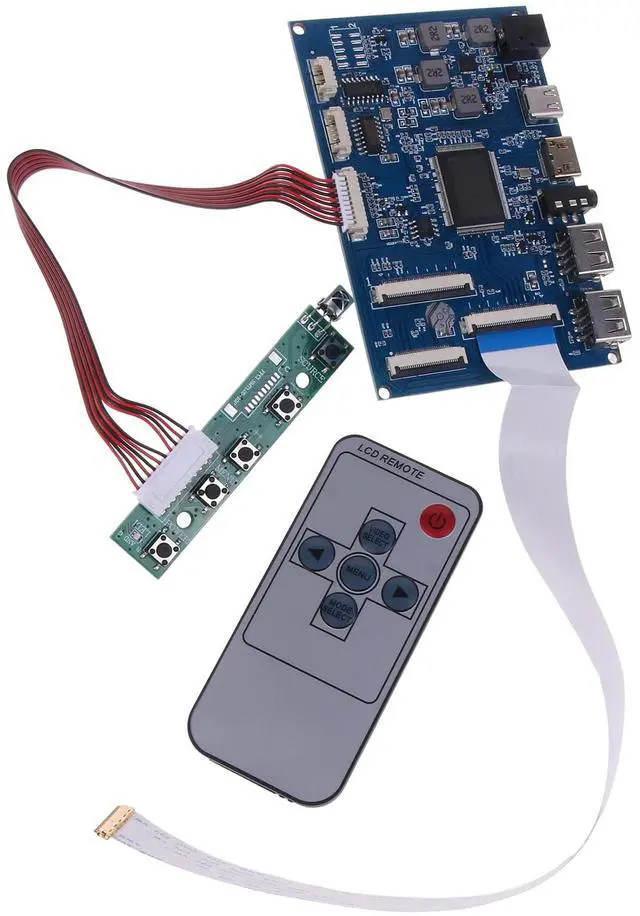

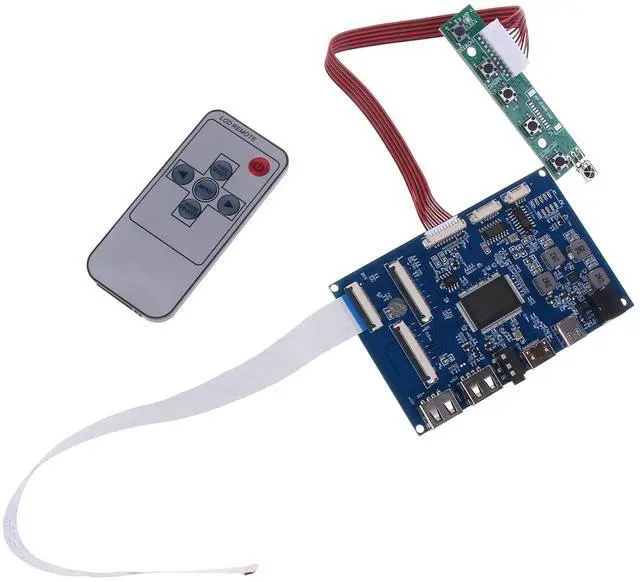

Yuly 30pin/ 40pin LVDS EDP LCD Display Driver Board Panel LVDS Laptop Display Panel Support Hdmi-Compatible Input Driving Board

30pin/ 40pin LVDS EDP LCD Display Driver Board Panel LVDS Laptop Display Panel Support Hdmi-compatible Input driving board
Features:
This driver board is suitable for 12V standard voltages input, with a minimum input of 12V and a of no more than 15V. Exceeding the specified voltages may damage the circuit board and components, so please carefully confirm power input voltages.
It supports input, which is HDMI-compatible 1.4;
It supports one TYPE-C input, which can support terminals such as computers and phones, and only supports 5V power output, which can reverse the phone, up to1A.
The LCD screen interface is EDP30PIN, EDP40PIN, and LVDS40PIN, and the output interface needs to be confirmed through software upgraded;
This driver board, and TYPE-C, automatically recognizes and converts;

Specifications

:
Material: ABS

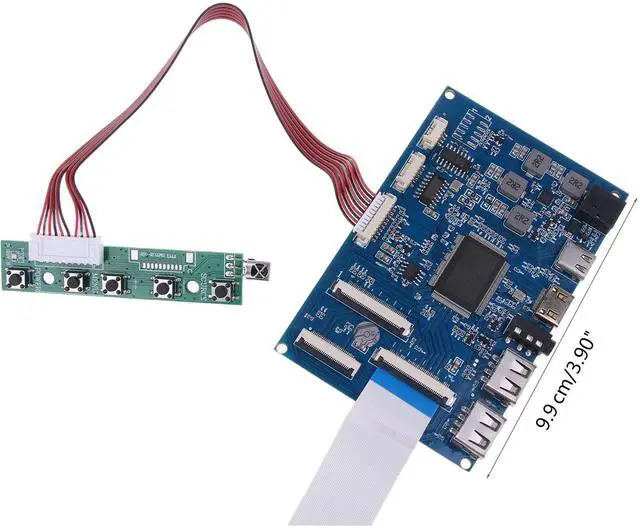

Length: Approx. 9.9 cm/ 3.9 in
Edp 30pin Supports Edp Resolutions Below1920x1200
Edp 40pin Supports Resolutions up to 2560x1440
Power Output: 2x2w

Package Includes:
1xLcd Driver Board

Note:
Please allow 1-2cm errors due to manual measurement, please make sure that you do not mind before you order.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
