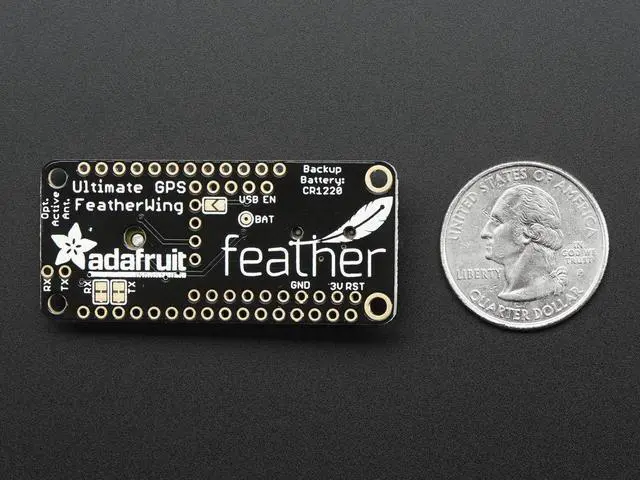

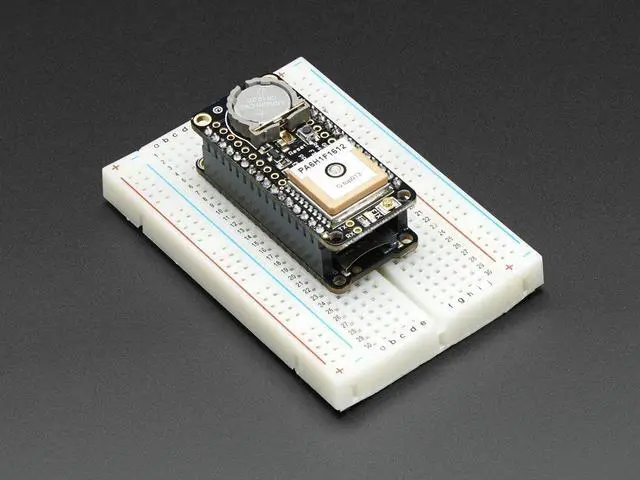

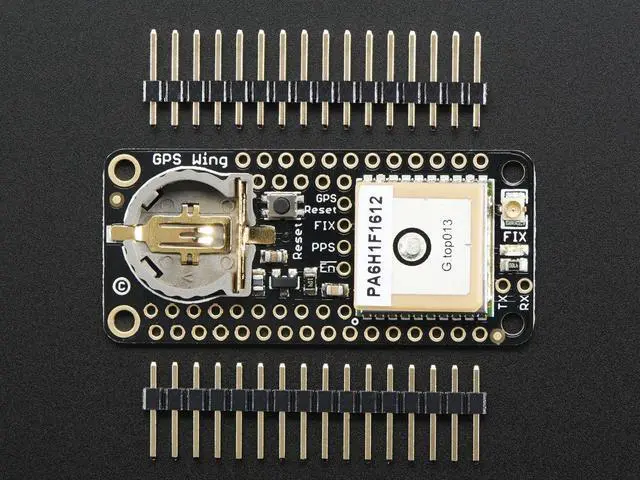

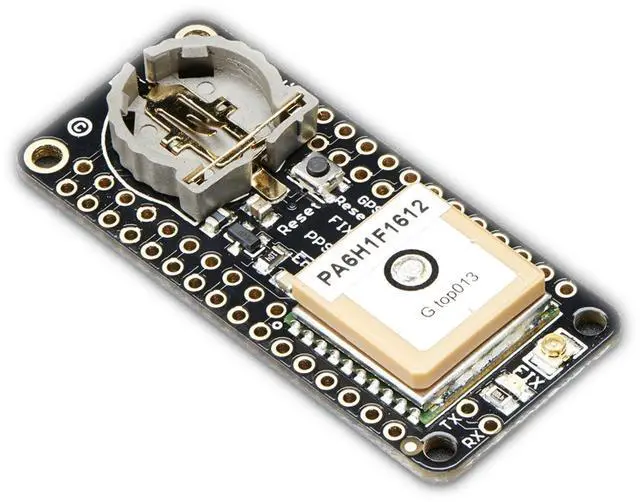

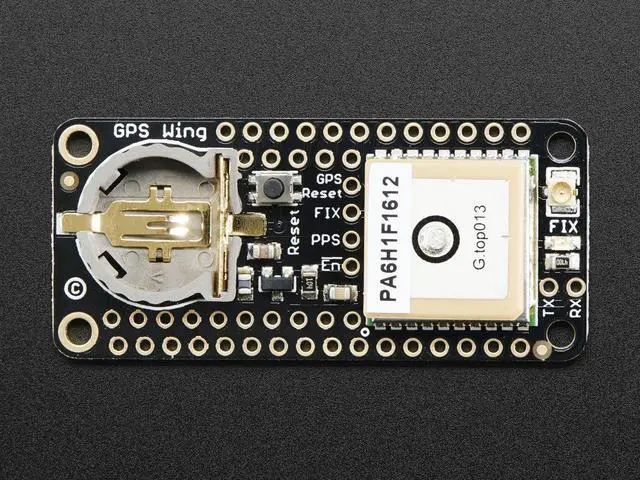

Adafruit Ultimate GPS FeatherWing
- This FeatherWing plugs right into your Feather board and gives it a precise, sensitive, and low power GPS module for location identifcation anywhere in the world. As a bonus, the GPS can also keep track of time once it is synced with the satellites.
- The Wing is built around the MTK3339 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 20 mA during navigation.
- The MTK3339-based module has external antenna functionality. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over!
- We added some extra g
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Satellites: 22 tracking, 66 searching Patch
Antenna Size: 15mm x 15mm x 4mm
Update rate: 1 to 10 Hz
Position Accuracy: <3 meters (all GPS technology has about 3m accuracy)
Velocity Accuracy: 0.1 meters/s
Warm/cold start: 34 seconds
Acquisition sensitivity: -145 dBm
Tracking sensitivity: -165 dBm
Maximum Velocity: 515m/s
MTK3339 Operating current: 25mA tracking, 20 mA current draw during navigation
Output: NMEA 0183, 9600 baud default DGPS/WAAS/EGNOS supported FCC E911 compliance and
AGPS support (Offline mode: EPO valid up to 14 days ) Up to 210 PRN channels Jammer detection and reduction Multi-path detection and compensation
Breakout board details: Weight (not including coin cell battery): 8.8 g
Dimensions: 22.9 mm x 51.2 mm x 6.7 mm / 0.90" x 2.02" x 0.26"
Antenna Size: 15mm x 15mm x 4mm
Update rate: 1 to 10 Hz
Position Accuracy: <3 meters (all GPS technology has about 3m accuracy)
Velocity Accuracy: 0.1 meters/s
Warm/cold start: 34 seconds
Acquisition sensitivity: -145 dBm
Tracking sensitivity: -165 dBm
Maximum Velocity: 515m/s
MTK3339 Operating current: 25mA tracking, 20 mA current draw during navigation
Output: NMEA 0183, 9600 baud default DGPS/WAAS/EGNOS supported FCC E911 compliance and
AGPS support (Offline mode: EPO valid up to 14 days ) Up to 210 PRN channels Jammer detection and reduction Multi-path detection and compensation
Breakout board details: Weight (not including coin cell battery): 8.8 g
Dimensions: 22.9 mm x 51.2 mm x 6.7 mm / 0.90" x 2.02" x 0.26"
