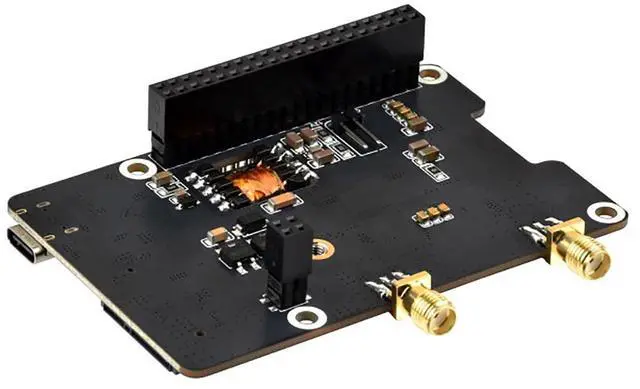

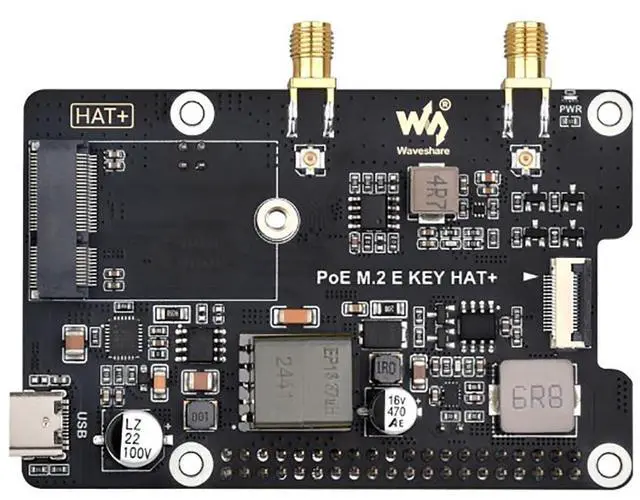

PoE M.2 E Key HAT+ for Raspberry Pi 5, PCIe to M.2 E Key Adapter with PoE, Supports NGFF (M.2 E Key) Wireless NIC, USB Bluetooth, SMA Antenna, 16-Pin PCIe & 40-Pin GPIO, 5V/12V Output
- M.2 E Key & A/E Key Wireless NIC Support Compatible with NGFF (M.2 E Key and A/E Key) wireless NIC modules, making it an ideal Pi 5 PCIe adapter for Wi-Fi and Bluetooth expansion.
- PoE Power Supply for Raspberry Pi 5This PCIe to M.2 E Key HAT+ supports Power over Ethernet (PoE), providing both network connectivity and stable power via a single Ethernet cable.
- 5V & 12V Power Output for Extra DevicesOnboard 5V/12V power headers deliver up to 4.5A (25W max total output), ensuring stable power for Raspberry Pi 5 and external devices.
- USB Bluetooth & SMA Antenna SupportFeatures USB Bluetooth connectivity (when a wireless NIC module is installed) and an SMA female antenna connector for enhanced wireless signal reception.
- 16-Pin PCIe & 40-Pin GPIO ConnectivityConnects to the Raspberry Pi 5 PCIe interface via a 16-pin cable and features a 40-pin GPIO stackable header, allowing additional HAT+ modules to be connected.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This PCIe To M. 2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M. 2 E Key) Wireless NIC, Onboard SMA female antenna connector supports USB Bluetooth connection, PoE power supply.
PoE power input: 37V ~ 57V DC in
Power output: GPIO
header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions: 56.0 × 85.0 (mm)
Network standard: IEEE 802.3 af/at PoE
M. 2
Slot: M. 2 E Key

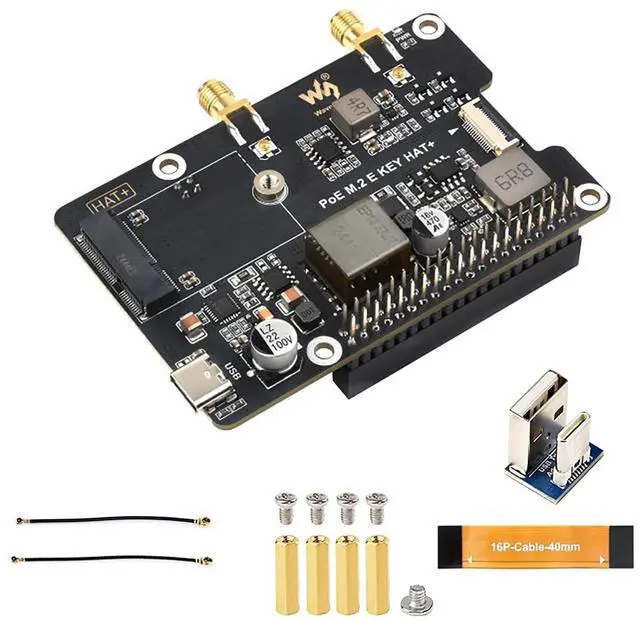

Packing List
PoE M. 2 E KEY HAT+ x1
USB Type-C Adapter (E) x1
IPEX 1 to IPEX 4 adapter cable ~6cm x2
16P-Cable-40mm x1
Screws pack x1
Resources & Services
Wiki: www. waveshare. com/wiki/PoE_M. 2_E_KEY_HAT+
This PCIe To M. 2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M. 2 E Key) Wireless NIC, Onboard SMA female antenna connector supports USB Bluetooth connection, PoE power supply.

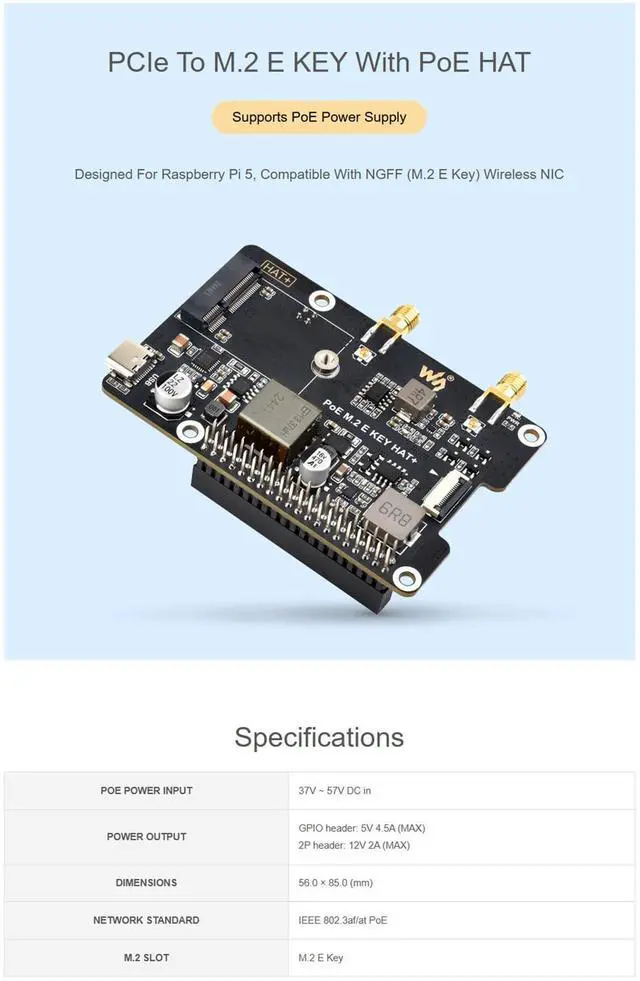

Specifications
PoE power input: 37V ~ 57V DC in
Power output: GPIO
header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions: 56.0 × 85.0 (mm)
Network standard: IEEE 802.3 af/at PoE
M. 2
Slot: M. 2 E Key
Packing List
PoE M. 2 E KEY HAT+ x1
USB Type-C Adapter (E) x1
IPEX 1 to IPEX 4 adapter cable ~6cm x2
16P-Cable-40mm x1
Screws pack x1
Resources & Services
Wiki: www. waveshare. com/wiki/PoE_M. 2_E_KEY_HAT+
