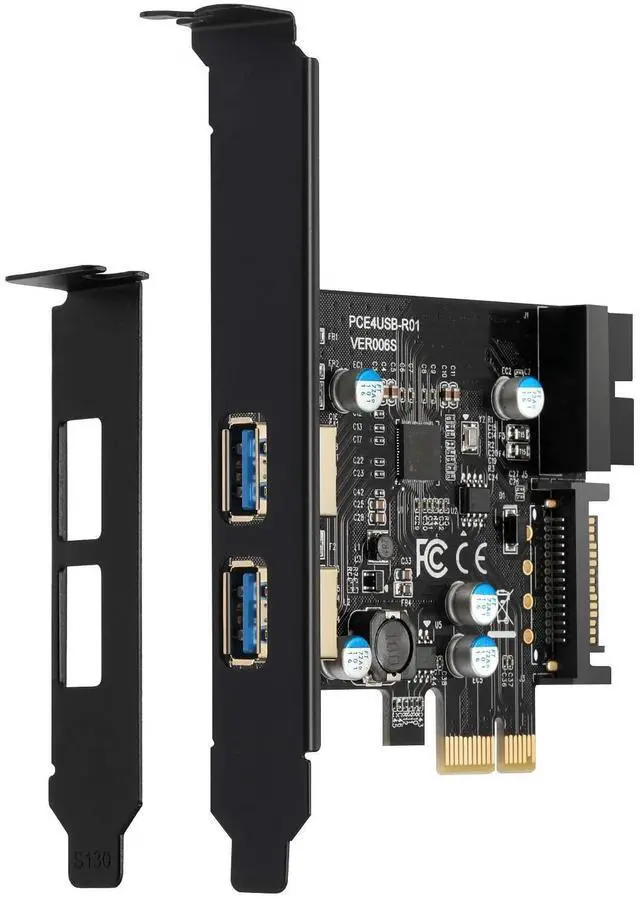

YBBOTT PCI E USB 3.0 Card PCI Express 1X 2 Ports with Internal 19 Pin USB 3.0 Connector Superspeed 5Gbps PCI E USBIII Expansion Card Controller Adapter Support Windows 10, 8, 7, XP

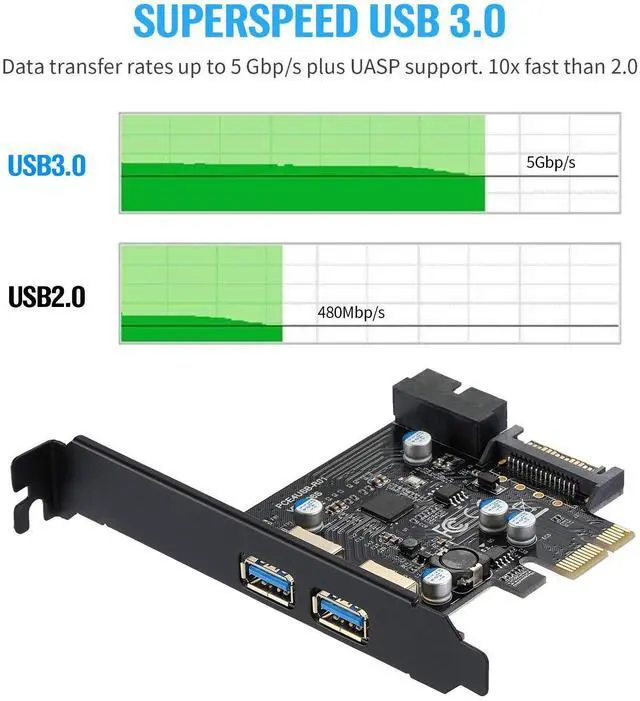

TANSFER RATE: SuperSpeed USB 3.0 supports transfer rates up to 5 Gbit, if it is backward compatible with USB2.0, USB1.1, USB1.0 actual transfer rate is limited by the settings of the connected device

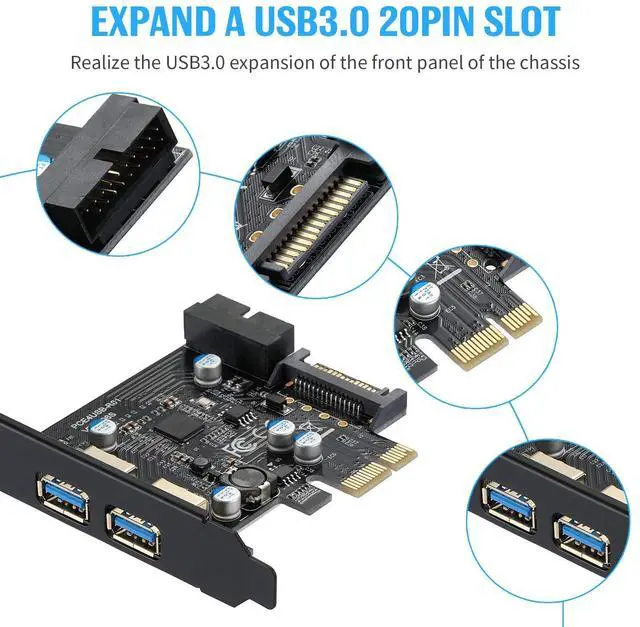

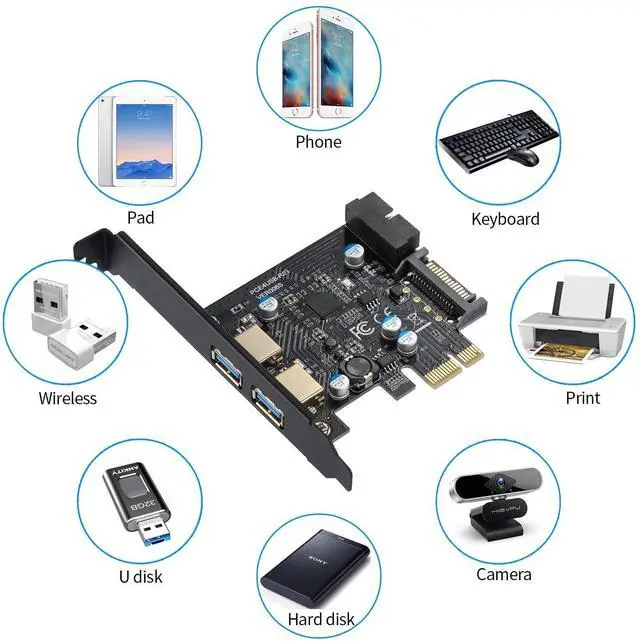

PCIE USB 3.0 CARD: Offers two external USB 3.0 ports for direct connection to USB 3.0 U hard drives, mobile hard drives and other devices; An internal USB 3.0 20PIN connector for attaching front USB 3.0 ports as well
SAFE AND STABLE: USB3.0 interface provides 5V 2A super power supply and sufficient and stable power supply to ensure stable operation of the device; Built in SATA extended power interface, support for hot swap

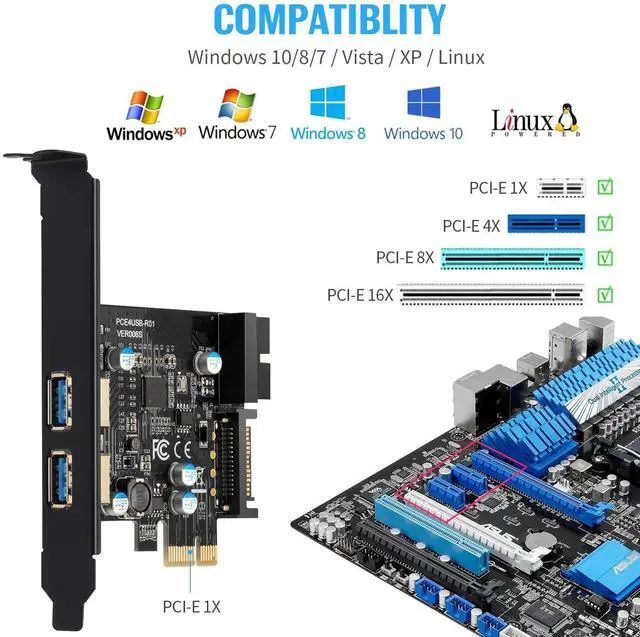

SUPPORT SYSTEM: Compatible with Windows XP, 2003, Vista , Win7, Win8, Win10 systems
Corresponds to PCI Express 2.0 specification, SuperSpeed USB 3.0 1.0 specification and adopts NEC third generation D720201 master; Supports small computer enclosures

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications

: Apply to all PCI E slotsSupports USB hot plug functionBuilt-in
SATA extended power interfaceTransfer rate: 5000, 480, 12, 1.5 Mbit / sComply with xHCI specification version 1.0M ain chip: UPD720201 chipset from
RenesaUSB output: up to 5 V 2 A increased current typeBackward compatible with USB 2.0, USB 1.1, USB 1.0C ompatible with PCI Express specification version 2.0S upports Windows XP, 2003, Vista, win7, win8, win10Compatible with the SuperSpeed USB 3.0 specification version 1.0M aximum transfer rate is up to 5 Gbit/s, which is much higher than 480 Mbit/s from USB 2.0, which is up to 10 timesHardware requirements: It also determines if the slot is blocked by the graphics cardThe PCI slot cannot be installed and used; Never install the expansion card in the PCI slotThis product is a desktop PCI E expansion card that requires a free PCI E slot on the motherboard for installation and usePackaging accessories:
A: Driver
CD x 1B: Low
profile bracket x 1C: USB 3.0 expansion card x 1D: Molex to SATA 4PIN power cable x 1
