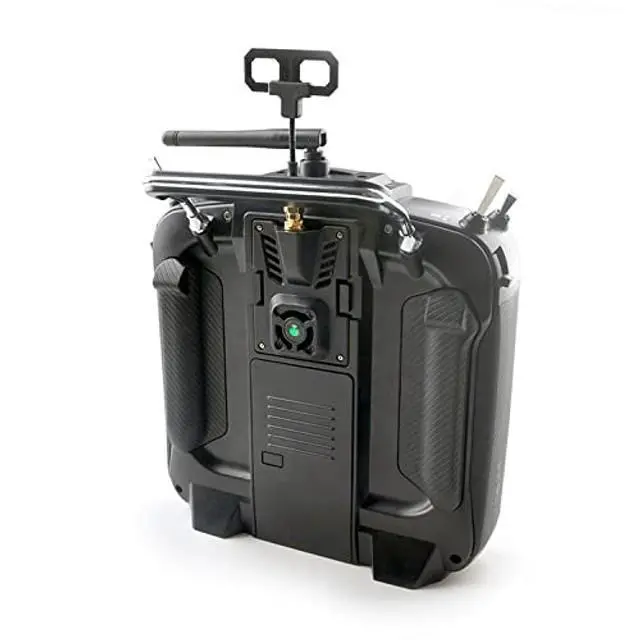

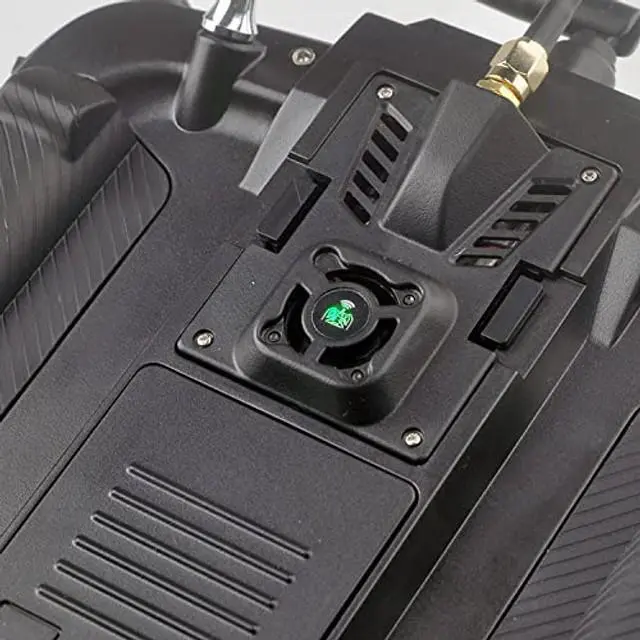

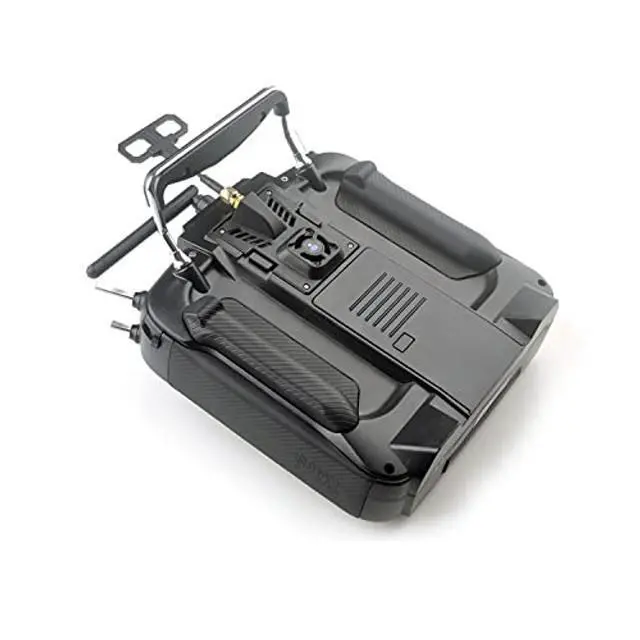

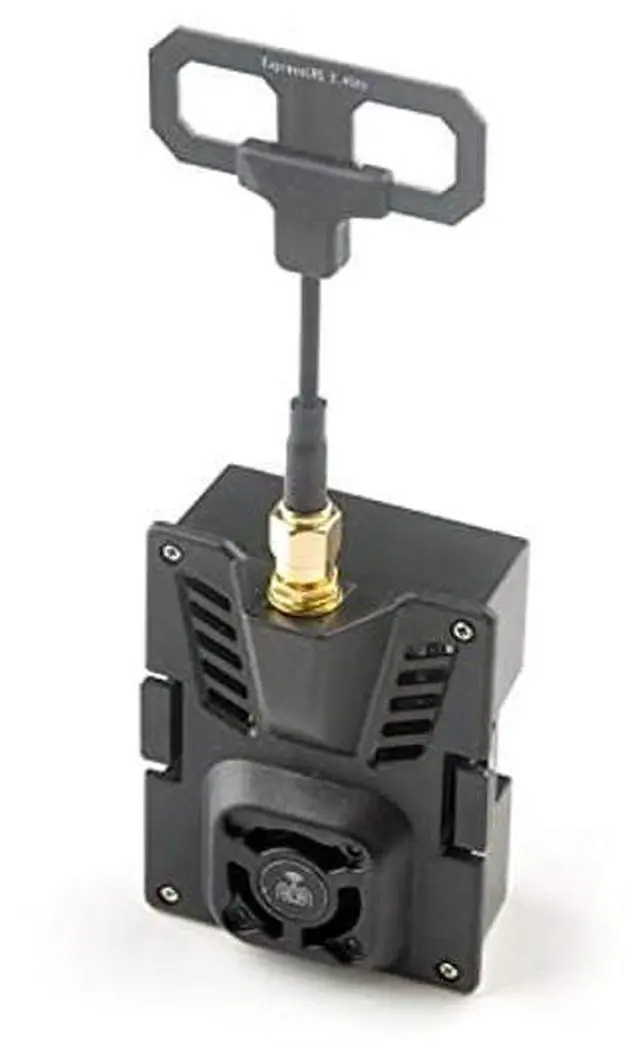

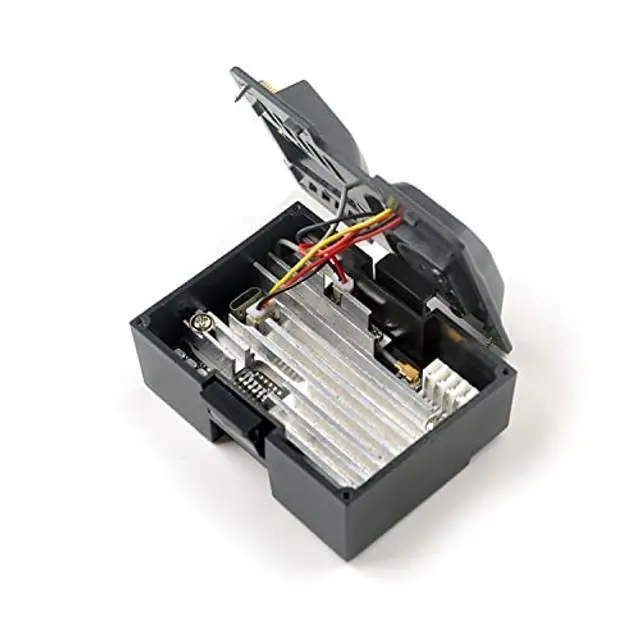

HAPPYMODEL ES24TX Pro ELRS Micro TX Module 2.4G 1000mW with Cooling Fan RGB LED for FPV Drones
- Upgraded Version?This ES24TX Pro Module is the upgraded version of ELRS Micro TX Module, it`s plug and play
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: RegulatoryDomain: ISM2400
MCU: ESP32 (main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT JR standard 5pin socket
Frequency Range: 2400 MHz to 2500
MHz Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz RF
Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram (without antenna)
Dimension: 70mm*49mm* 32.5 mm
Antenna gain: 4.18 dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
Package include: ES24TX Pro *1 Happymodel 2.4GH z Moxon antenna *1
