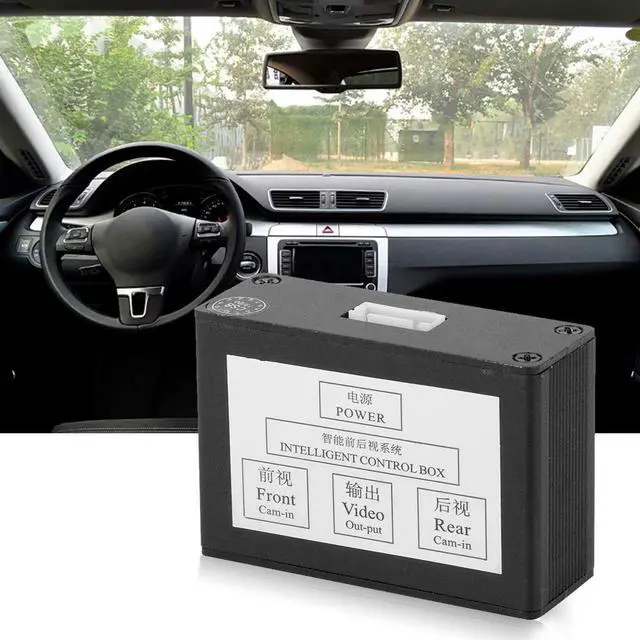

Reverse Camera for Truck,Dash Cam Front and Rear Car Camera Switch Control Box Vehicle Backup Cameras Smart Car Parking Camera Converter Front Rear View Video Switch Channel

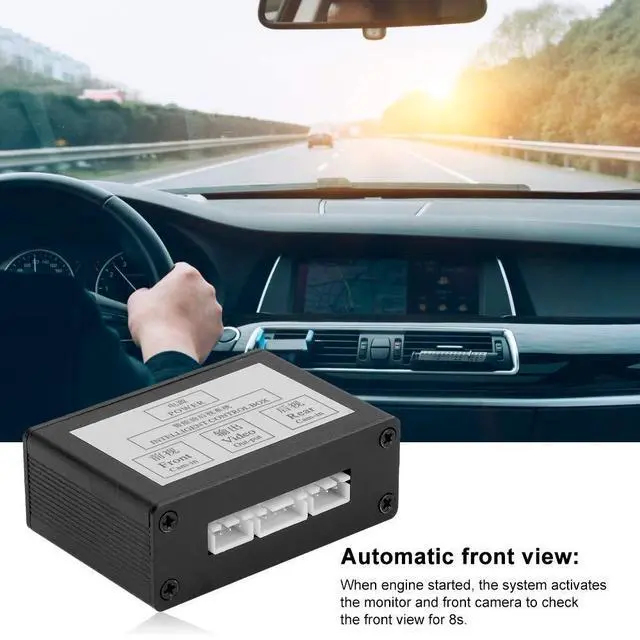

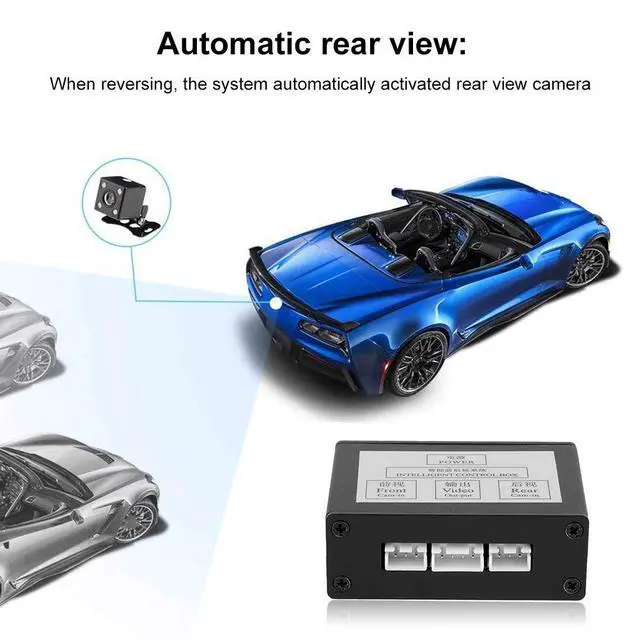

1. When the engine is started, the system activates the monitor and the front camera to check the front view for 8 seconds, then turn it off. 2. When reversing, the system automatically activated rear view camera, and switches to the front view of the video camera in 15 seconds, then stops. 3. Push the control switch to enter the front mode, in this mode, the system will monitor and activate the front of the camera at all times. Exit the mode by pressing the control switch again.

4. Widely used, suitable for vehicles with monitor and reversing camera, it has no impact to oringal monitor. 5. Simple installation, no complicated tools required, it is convenient to use.
Specification:
Condition: Brand
NewItem Type: Camera
ConverterMaterial: Zinc
AlloyColor: As picture shownOperating
Voltage: 9-16VOperating
Current: Operating
Temperature: -10 - 70Relative
Humidity: 95%Voltage
Output: DC12VWiring

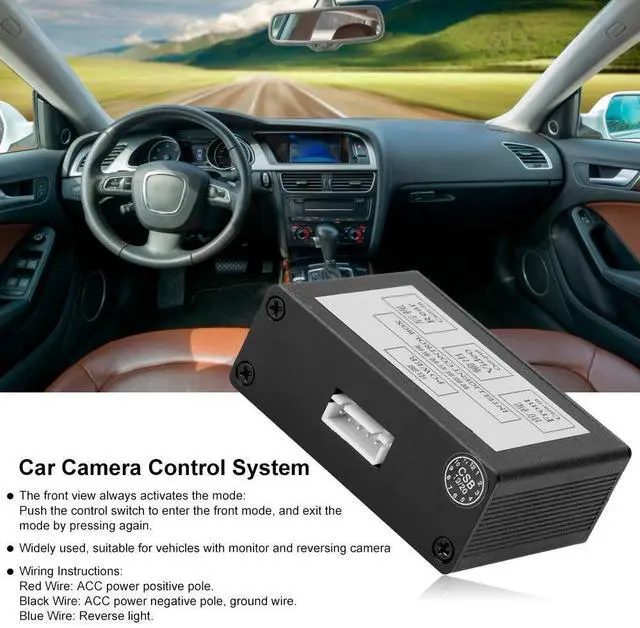

Instructions: Red
Wire: ACC power positive pole.
Black Wire: ACC power negative pole, ground wire.
Blue Wire: Reverse light.
Application: As long as the car with a display (such as for android navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera input, after installing the switcher can be an additional front camera input, it had no effect on the original screen.

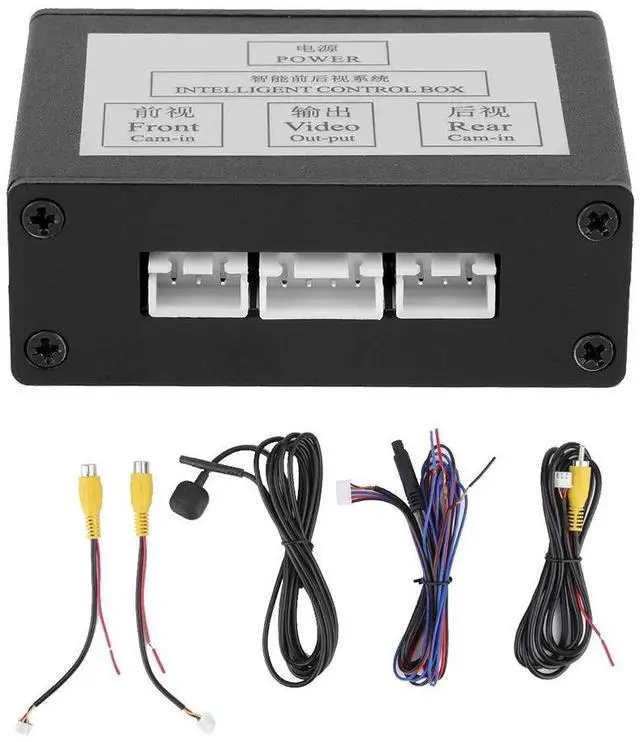

Package List: 1 x Camera Converter4 x Power Cable1 x
InsructionNote: 1. The small red wire at the temporary input port of the camera video is connected to the positive pole of the front and rear camera power supply respectively. 2. The small red wire of the output port is connected to the wire of the display screen. If the original line of the display screen is connected to the inverted headlight, it should be
