ZHONGPXY 9 Port Gigabit Industrial Ethernet PoE Switch, 8 PoE+ Ports IEEE802.3af/at with 1 Gigabit SFP Fiber Port, Plug & Play Unmanaged DIN Rail Ethernet Switch, 48-57V DC, -40~80C

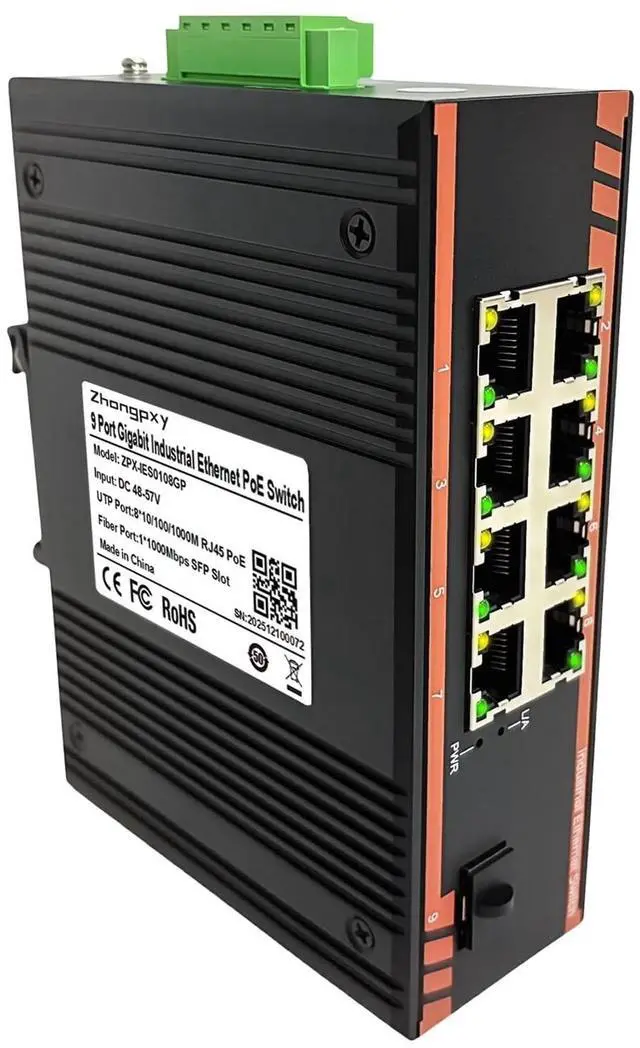

- 1 SFP + 8 RJ45 Industrial PoE Switch: This 9 port industrial PoE switch features 8Gigabit RJ45 PoE ports and 1Gigabit SFP slot, delivering power, data, and flexible fiber uplink for industrial Ethernet networks

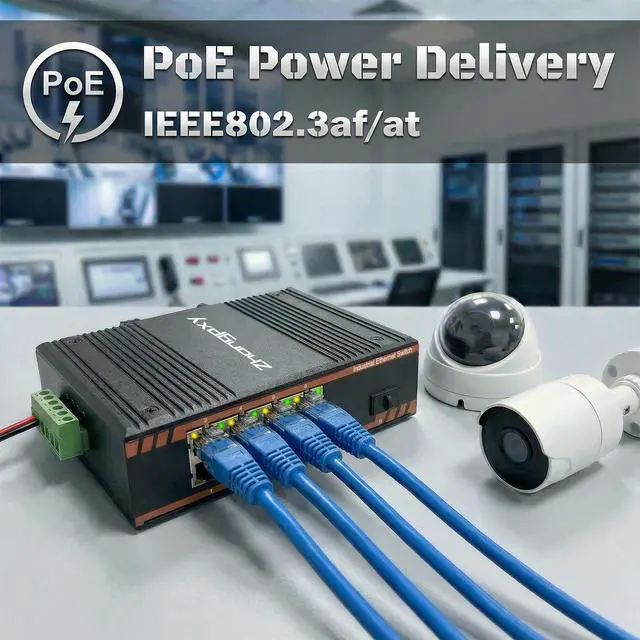

- IEEE 802.3af/at PoE Output: This PoE+ ethernet switch supports IEEE 802.3af/at devices with up to 30W per PoE port, helping power compatible IP cameras, wireless access points, VoIP phones, and edge devices

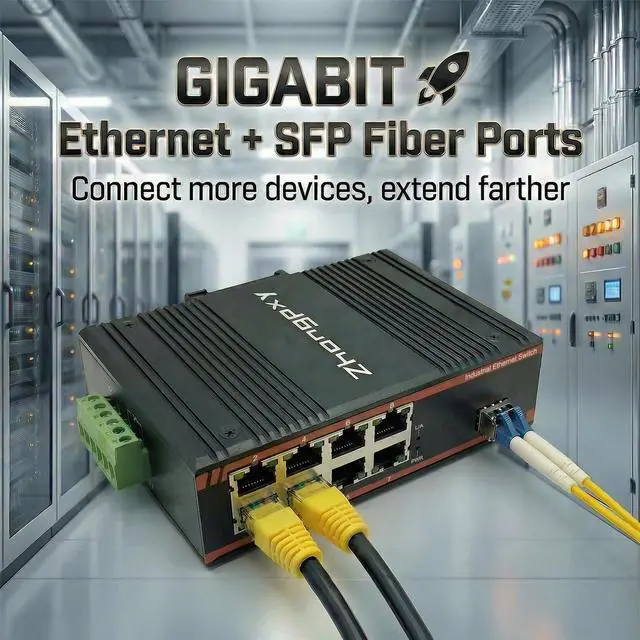

- Flexible SFP Fiber Uplink: The built-in Gigabit SFP slot makes this SFP PoE switch suitable for long-distance fiber connections between control rooms, remote equipment, surveillance networks, and field devices
- Unmanaged DIN Rail Installation: This unmanaged PoE switch requires no software configuration, while the compact DIN rail PoE switch design allows quick installation in control cabinets, equipment boxes, and industrial panels
- For Surveillance & Automation Networks: Ideal as a PoE switch for IP cameras, surveillance PoE switch, or factory automation Po
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewThis industrial PoE Ethernet switch offers eight Gigabit RJ45 ports with IEEE 802.3 af/at power output and one Gigabit SFP fiber uplink, delivering stable long-distance communication for demanding industrial networks. With an IP40 aluminum enclosure, dual-redundant 4857V DC power input, and a wide -40C to 80C operating temperature range, it ensures reliable performance for surveillance systems, automation networks, transportation infrastructure, and power utility applications. Features1. 8Gigabit RJ45 + 1SFP Fiber Uplink Supports flexible long-distance fiber networking using SFP modules for high-speed industrial communication. 2. IEEE 802.3 af/at PoE Output Provides up to 30W per port, powering IP cameras, wireless APs, VoIP phones, and industrial terminals.

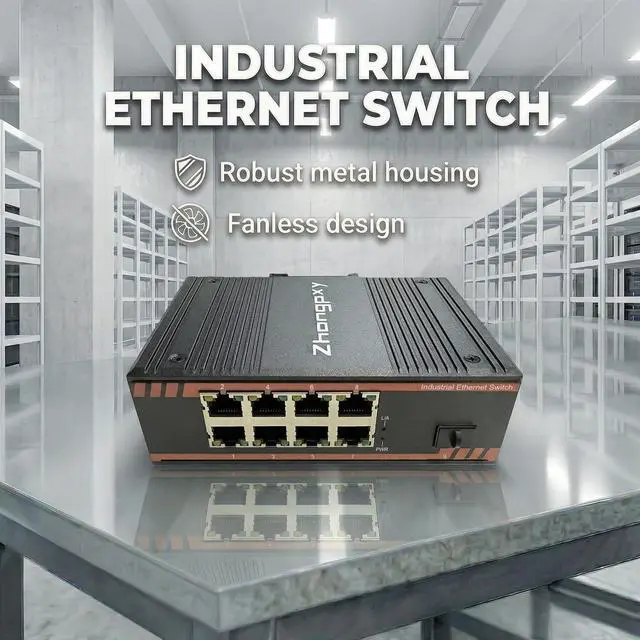

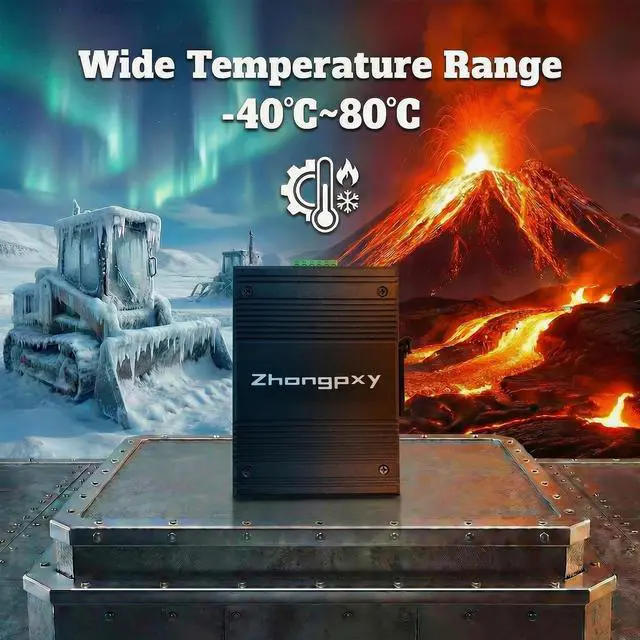

3. IP40 Aluminum Housing Durable metal enclosure resists dust, impact, and vibration for stable operation in harsh industrial environments. 4. -40C to 80C Temperature Range Ensures dependable functionality in extreme hot and cold temperatures suitable for outdoor and remote installations. 5. Dual-Redundant 4857V DC Input Maintains uninterrupted operation for high-availability industrial applications. 6. DIN-Rail Installation Compact design allows flexible mounting in industrial control cabinets and automation equipment racks. Specifications1.
Ports: 810/100/1000Base-T RJ45 (PoE), 11000Base-X SFP2.
PoE Standard: IEEE 802.3 af/at, up to 30W per port3.
Switching Capacity: 20Gbps4.
Forwarding Rate: 15Mpps5.
Packet Buffer: 2Mbit6.
MAC Address Table: 8K7.
Maximum Frame Size: 9000 bytes8.
Flow Control: IEEE 802.3 x (full-duplex), back pressure (half-duplex)9.
Power Input: 4857V DC, dual-redundant10.
Power Consumption: <3W (device only) 11.
Protection: 6kV ESD, 6kV EFT, 4kV surge12.
Housing: IP40 aluminum13.
Installation: DIN-rail mount14.
Operating Temperature: -40C to 80C15.
Humidity: 5%95% (non-condensing)16.
Dimensions: 143.7 103.8 47.7 mm17.
Weight: 0.56 kgApplications1. Industrial Automation Supports PLC networks, robotic systems, and factory Ethernet communication. 2. Security & Surveillance Provides PoE power and fiber uplink for IP cameras and NVR systems. 3. Transportation Systems Suitable for traffic control, metro/rail communication, and intelligent transportation. 4. Energy & Utility Networks Ensures stable networking in substations, smart grid systems, and SCADA communication. 5. Outdoor & Harsh Environments Reliable for roadside cabinets, mining areas, energy stations, and remote industrial installations.
3. IP40 Aluminum Housing Durable metal enclosure resists dust, impact, and vibration for stable operation in harsh industrial environments. 4. -40C to 80C Temperature Range Ensures dependable functionality in extreme hot and cold temperatures suitable for outdoor and remote installations. 5. Dual-Redundant 4857V DC Input Maintains uninterrupted operation for high-availability industrial applications. 6. DIN-Rail Installation Compact design allows flexible mounting in industrial control cabinets and automation equipment racks. Specifications1.
Ports: 810/100/1000Base-T RJ45 (PoE), 11000Base-X SFP2.
PoE Standard: IEEE 802.3 af/at, up to 30W per port3.
Switching Capacity: 20Gbps4.
Forwarding Rate: 15Mpps5.
Packet Buffer: 2Mbit6.
MAC Address Table: 8K7.
Maximum Frame Size: 9000 bytes8.
Flow Control: IEEE 802.3 x (full-duplex), back pressure (half-duplex)9.
Power Input: 4857V DC, dual-redundant10.
Power Consumption: <3W (device only) 11.
Protection: 6kV ESD, 6kV EFT, 4kV surge12.
Housing: IP40 aluminum13.
Installation: DIN-rail mount14.
Operating Temperature: -40C to 80C15.
Humidity: 5%95% (non-condensing)16.
Dimensions: 143.7 103.8 47.7 mm17.
Weight: 0.56 kgApplications1. Industrial Automation Supports PLC networks, robotic systems, and factory Ethernet communication. 2. Security & Surveillance Provides PoE power and fiber uplink for IP cameras and NVR systems. 3. Transportation Systems Suitable for traffic control, metro/rail communication, and intelligent transportation. 4. Energy & Utility Networks Ensures stable networking in substations, smart grid systems, and SCADA communication. 5. Outdoor & Harsh Environments Reliable for roadside cabinets, mining areas, energy stations, and remote industrial installations.
