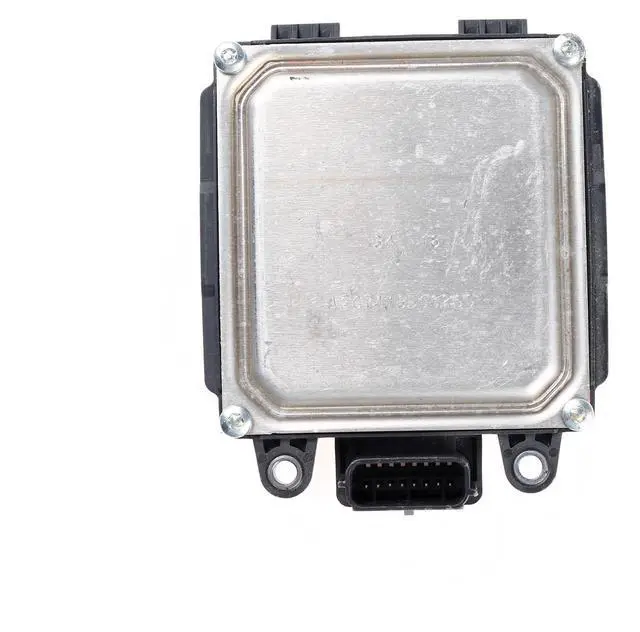

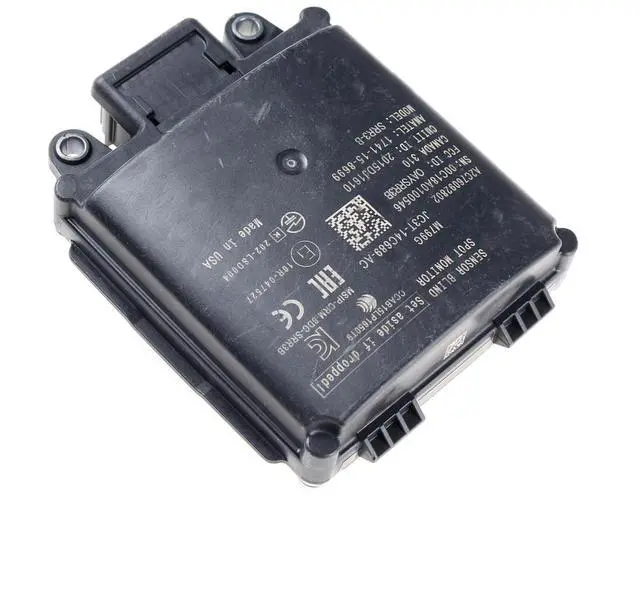

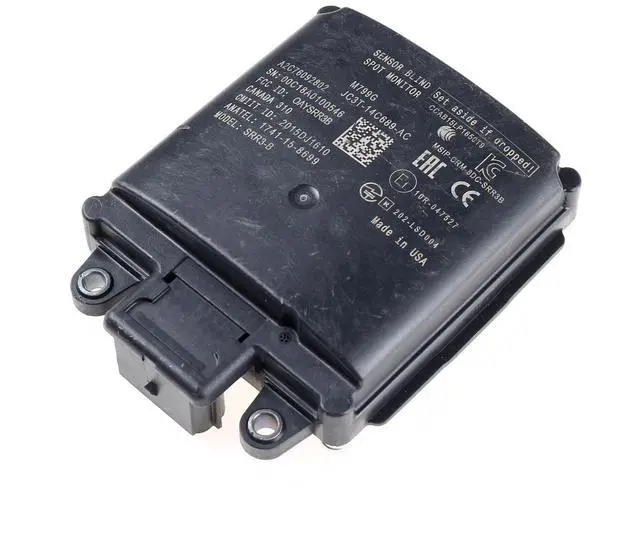

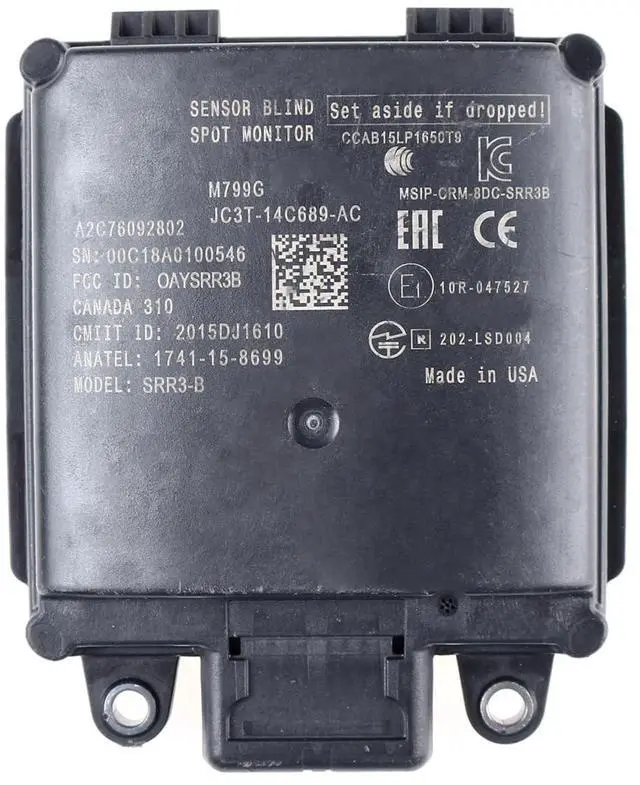

YAOPEI Blind Spot Monitor Alert Radar Sensor JC3T14C689AC Compatible for Compatible with Ford F-150 F-250 F-350 Transit Connect Replace JC3Z14C689A
- Compatible with: 2018-2020 F-150, 2017 & 2021-2022 F-250 Super Duty, 2017-2019 F-350 Super Duty, 2019-2023 Transit Connect.
- Directly replace OE numbers JC3T14C689AC, JC3T14C689AA, JC3T14C689AB, JC3Z14C689A. Match original connector and mounting position.
- Installation & Calibration Instructions: 1. Park your vehicle on a flat, level surface. Securely fasten the ACC unit in place using the provided clips to ensure a stable fit. 2. Use a mobile calibration app or spirit level to adjust the ACC sensor vertically, aligning it precisely with the top-left screw position for optimal performance.
- 3. Utilize calipers or a comparable precision tool to measure and adjust the distance between both sides of the ACC unit and the vehicle body. Ensure perfect symmetry to guarantee accurate functionality. 4. Complete the calibration process with ODIS service software. For maximum accuracy and reliability, we recommend repeating the calibration once to eliminate any potential discrepancies.
- I
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible Vehicles: For Ford F-15020182020including RaptorFor Ford F-250 Super Duty201702/20 up2018202020212022For Ford F-350 Super Duty201702/20 up2018202020212022For Ford Transit Connect20192023Replace
Part Numbers: JC3T-14C689-AC, JC3T-14C689-AA, JC3T-14C689-AB, JC3Z-14C689-AFeatures: Rear tail light blind spot radar sensor moduleOEM fit and functionHigh reliability
& long lifespanPlug-and-play installationNote: Fits rear tail light mounted blind spot monitor only. Please confirm your OE number before ordering. Our product is manufactured to strict OE standards, with no defects in hardware, connectors, or performance all units pass rigorous pre-shipment inspections to ensure reliability. The 8-pin waterproof connector ensures a secure, weather-resistant fit, and the left/right universal design simplifies installation.
Important Installation Notes: -
Installation Position: Inner side of each rear taillight (left and right universal).
- Programming Requirement: Must be programmed with Ford IDS or J2534 diagnostic tool after installation this step is mandatory to avoid fault codes and ensure normal operation.
- Compatibility Precondition: Only applicable for vehicles with factory-installed BLIS (Blind Spot Information System). Step-by-Step Installation Guide1.
Prepare Tools & Materials: Gather a screwdriver (Phillips/flat-head, match your taillight fasteners), a clean cloth, and a Ford IDS/J2534 diagnostic tool (required for programming). Park the vehicle on a flat surface, turn off the engine, and remove the ignition key to avoid electrical risks. 2.
Remove the Rear Taillight: Locate the rear taillight (left/right, same steps for both). Use the screwdriver to remove the securing screws/clips. Gently pull the taillight outward (avoid damaging the wiring harness connected to it). 3.
Access the Installation Position: With the taillight removed, find the sensor mounting position (inner side of the taillight assembly, near the vehicle center). Clean the surface with a cloth to remove dust/debris for a secure fit. 4.
Install the Sensor: Align the JC3Z14C689A sensor with the mounting holes. Secure it with original or included screws. Ensure its firm (wobbling affects performance). 5.
Connect the Connector: Plug the sensors 8-pin waterproof connector into the vehicles corresponding wiring harness. Ensure its fully seated and locked (prevents water ingress/fault codes). 6.
Reinstall the Rear Taillight: Reposition the taillight, align with mounting holes, and reattach screws/clips. Double-check alignment (no gaps between taillight and vehicle body). 7.
Mandatory Programming (Critical Step): Turn on ignition (dont start the engine). Connect Ford IDS/J2534 tool to the OBD-II port (under the dashboard). Follow tool instructions to program/match the sensor to the vehicles module. Skipping this step causes fault codes and sensor failure. 8.
Test the Sensor: After programming, start the vehicle. Drive at 20 mph (32 km/h) and check if the blind spot indicator (side mirrors) works when a vehicle enters the blind spot. If not, recheck the connector/programming or contact our after-sales team.
Part Numbers: JC3T-14C689-AC, JC3T-14C689-AA, JC3T-14C689-AB, JC3Z-14C689-AFeatures: Rear tail light blind spot radar sensor moduleOEM fit and functionHigh reliability
& long lifespanPlug-and-play installationNote: Fits rear tail light mounted blind spot monitor only. Please confirm your OE number before ordering. Our product is manufactured to strict OE standards, with no defects in hardware, connectors, or performance all units pass rigorous pre-shipment inspections to ensure reliability. The 8-pin waterproof connector ensures a secure, weather-resistant fit, and the left/right universal design simplifies installation.
Important Installation Notes: -
Installation Position: Inner side of each rear taillight (left and right universal).
- Programming Requirement: Must be programmed with Ford IDS or J2534 diagnostic tool after installation this step is mandatory to avoid fault codes and ensure normal operation.
- Compatibility Precondition: Only applicable for vehicles with factory-installed BLIS (Blind Spot Information System). Step-by-Step Installation Guide1.
Prepare Tools & Materials: Gather a screwdriver (Phillips/flat-head, match your taillight fasteners), a clean cloth, and a Ford IDS/J2534 diagnostic tool (required for programming). Park the vehicle on a flat surface, turn off the engine, and remove the ignition key to avoid electrical risks. 2.
Remove the Rear Taillight: Locate the rear taillight (left/right, same steps for both). Use the screwdriver to remove the securing screws/clips. Gently pull the taillight outward (avoid damaging the wiring harness connected to it). 3.
Access the Installation Position: With the taillight removed, find the sensor mounting position (inner side of the taillight assembly, near the vehicle center). Clean the surface with a cloth to remove dust/debris for a secure fit. 4.
Install the Sensor: Align the JC3Z14C689A sensor with the mounting holes. Secure it with original or included screws. Ensure its firm (wobbling affects performance). 5.
Connect the Connector: Plug the sensors 8-pin waterproof connector into the vehicles corresponding wiring harness. Ensure its fully seated and locked (prevents water ingress/fault codes). 6.
Reinstall the Rear Taillight: Reposition the taillight, align with mounting holes, and reattach screws/clips. Double-check alignment (no gaps between taillight and vehicle body). 7.
Mandatory Programming (Critical Step): Turn on ignition (dont start the engine). Connect Ford IDS/J2534 tool to the OBD-II port (under the dashboard). Follow tool instructions to program/match the sensor to the vehicles module. Skipping this step causes fault codes and sensor failure. 8.
Test the Sensor: After programming, start the vehicle. Drive at 20 mph (32 km/h) and check if the blind spot indicator (side mirrors) works when a vehicle enters the blind spot. If not, recheck the connector/programming or contact our after-sales team.
