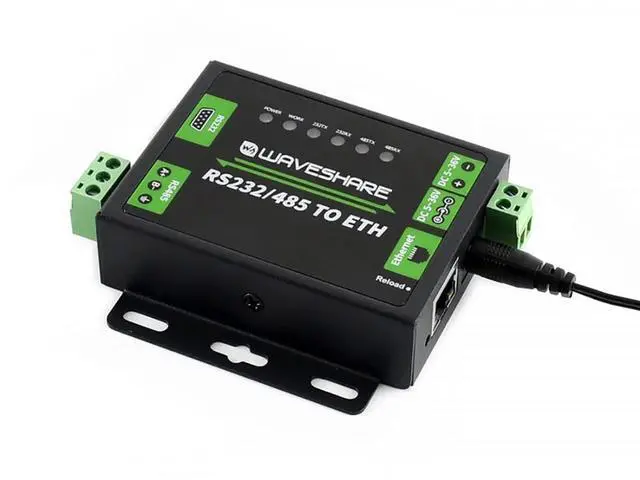

Coolwell Waveshare RS485 to Ethernet Converter Industrial RS232/RS485 to RJ45 Converer Dual Serial Ports Bi-Directional Rransparent Data Transmission
- Industrial RS232 to RJ45 converter, with M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
- Industrial RS485 to RJ45 converter, 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
- Industrial RS232/RS485 to ethernet converter, both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
- The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc, feel free to contact us if you need our help, we will always be ready to help.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
Configurable baudrate (600bps~ 230.4K bps), supports
five parity check options: None, Odd, Even, Mark, Space
Multi indicators, for monitoring communicating and working status
Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
Supports Modbus, suit for industrial application
Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
Supports customized webpage, allows user to customize the module configuration page
Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc. ) may change
KeepAlive mechanism, detects broken connection, auto re-connecting
Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
Supports DNS domain name resolution, configurable DNS server
Supports DHCP, auto-obtained IP or static IP
Firmware is upgradable via the network
Restore to factory settings via software and/or hardware
Comes with default MAC address, which is customizable
Provided software: module configuration software, TCP/UDP testing
M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
Configurable baudrate (600bps~ 230.4K bps), supports
five parity check options: None, Odd, Even, Mark, Space
Multi indicators, for monitoring communicating and working status
Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
Supports Modbus, suit for industrial application
Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
Supports customized webpage, allows user to customize the module configuration page
Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc. ) may change
KeepAlive mechanism, detects broken connection, auto re-connecting
Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
Supports DNS domain name resolution, configurable DNS server
Supports DHCP, auto-obtained IP or static IP
Firmware is upgradable via the network
Restore to factory settings via software and/or hardware
Comes with default MAC address, which is customizable
Provided software: module configuration software, TCP/UDP testing
