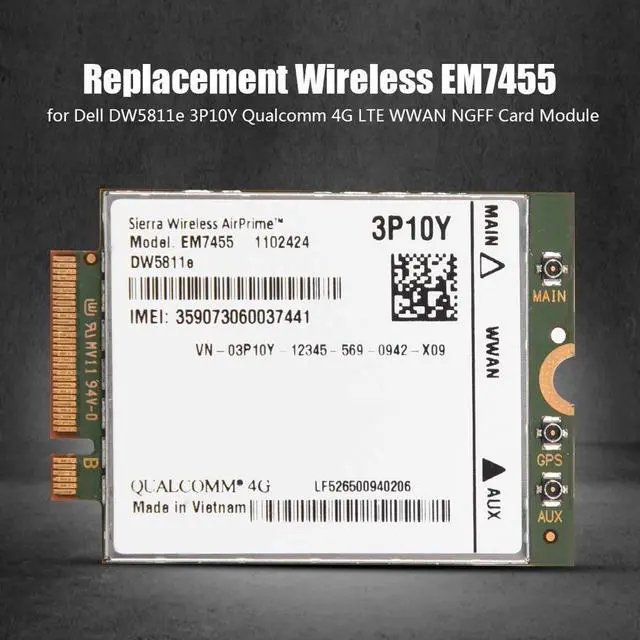

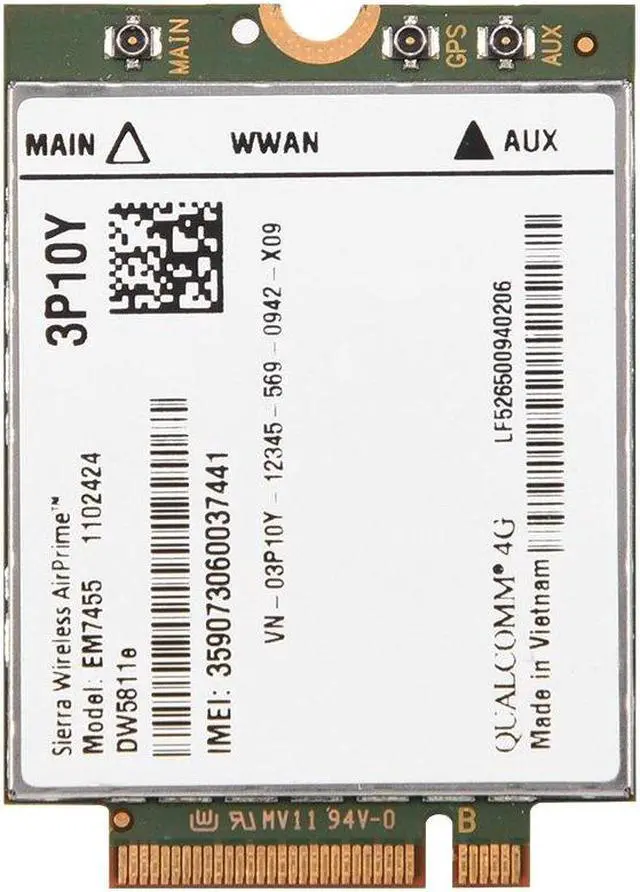

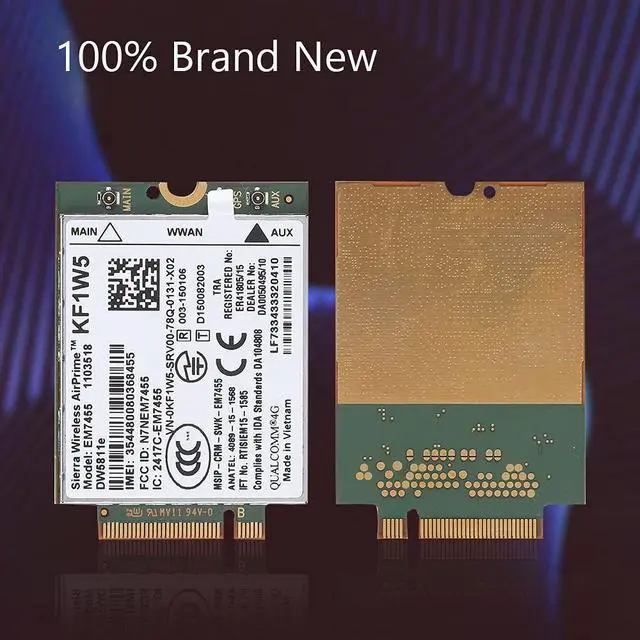

    EM7455 4G Module Network Card, PCIe M.2 Replacement EM7455 Network Card for DW5811e 3P10Y 300 Mbps 4G LTE WWAN NGFF Card Module Fit for PC Laptops

    • Replacement Module Card This is a 4G module card , replacing a broken , damaged , faulty module card. Including the main radio disabled , GNSS disabled , flash LED output , WAN wake up , reset and other interfaces.

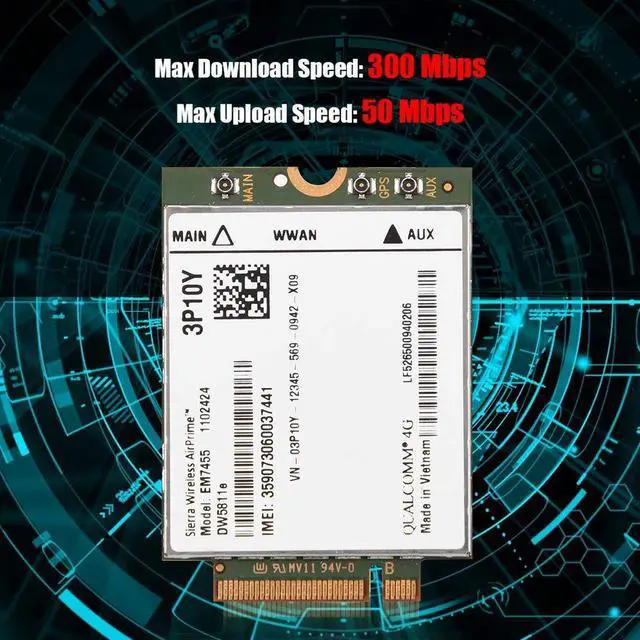

    • Transfer Speed The maximum download speed supported by this module is 300 Mbps and the maximum upload speed is 50 Mbps. Uploading and downloading files is quick and easy. Support USB 3.0 , USB 2.0 high speed interface , PCM , I2S audio.
    • Applicable Frequency Band The applicable frequency bands of LTE FDD are frequency bands B1 B5 , B7 , B12 , B13 , B17 , B20 , B25 , B26 , B29 , B30 , and B41. UMTS , HSPA + is applicable to B1 , B2 , B3 , B4 , B5 , B8.
    • Best replacement for your cracked / damaged / faulted Module Card.
    • Installation instruction is not included and professional installation is recommended.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Specifications

    :
    Category: 4G Module
    Chipset: Qual comm
    Form Factor: PCIe M. 2
    Pins: 52pin
    Frequency bands:
    - LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30, B41
    - UMTS/HSPA+: B1, B2, B3, B4, B5, B8
    Technologies: UMTS, HSDPA, HSPA+, LTE
    Download Speed: 300 Mbps
    Upload Speed: 50 Mbps
    Temperature: -10? to 55?
    Certifications/Regulatory:
    Planned: FCC, IC, CE, NCC, GCF, PTCRB
    Carriers Approved:
    Planned: AT&T, Verizon, Sprint, Vodafone, Telefonica, Orange
    Connectors: Main, Aux/GNSS, GNSS
    Satellite Systems: GPS, Glonass, Beidou, Galileo
    Modes: Standalone, SUPL 2.0, XTRA 3.0
    Control Options: APIs, AT Commands
    Voltage: 1.8V
    Active Antenna Control: 4 pin
    Dynamic Power Control: 1 pin
    Interfaces: USB 3.0, USB 2.0 High Speed
    SIM interface: 2 x 1.8V or 3V
    Audio: PCM/I2S
    Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset

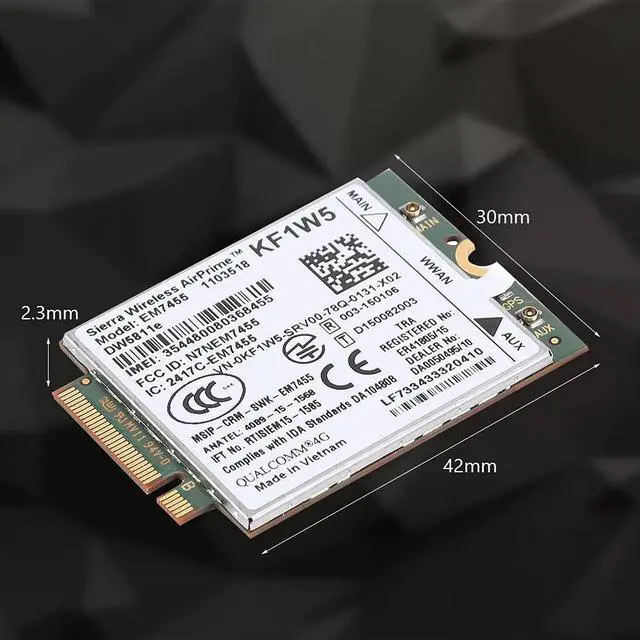

    Dimensions: 42 x 30 x 2.3 mm
    Package Weight: About 7g

    Compatible for 2016:
    For Latitude 14 7000 Series E7470
    For Latitude 12 7000 Series E7270
    For Latitude 13 7000 Series E7370
    For Latitude 15 5000 Series E5570
    For Latitude 14 5000 Series E5470

    Package List:
    1 * EM7455 4G LTE Module
