VSDISPLAY VGA DVI Audio LCD Controller Board Kit for ltm184hl01 c01 1920x1080 15.6 17.3 inch Panel Screen B156HW01 V0 V4 V7 B156HW02 LP156WF1 N156HGE LP173WF1 N173HGE HSD173UHW1 B173HW01

Compatible Work With:

15.6 inch1920x1080
B156HW01 V. 0 B156HW01 V. 4 B156HW01 V. 7 B156HW02 LP156WF1 N156HGE-L11
17.3 inch1920x1080
LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1
B173HW01 CLAA173UA01A

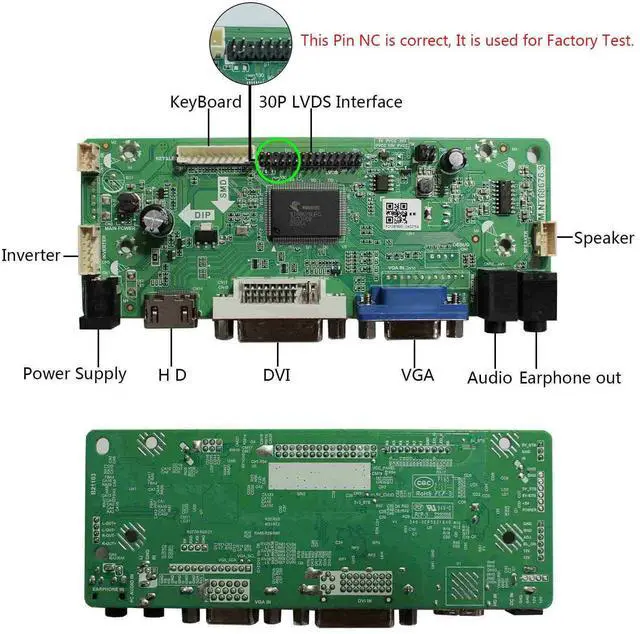

LCD Controller Board:

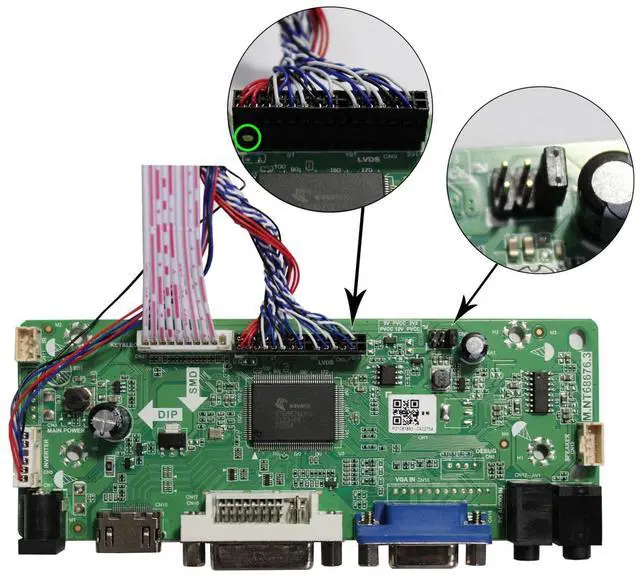

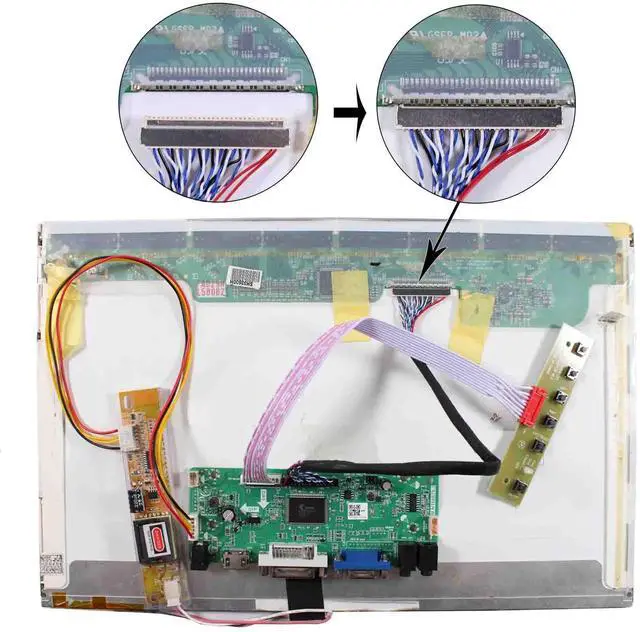

DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal.
The board will power on and say no signal for about 5 seconds then the control board light will turn red and the screen will turn off.
It's nomal, which means the LCD screen come in standby model when there is no input signal. It only need to plug in the input siganl, then the LCD screen will display normally.
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

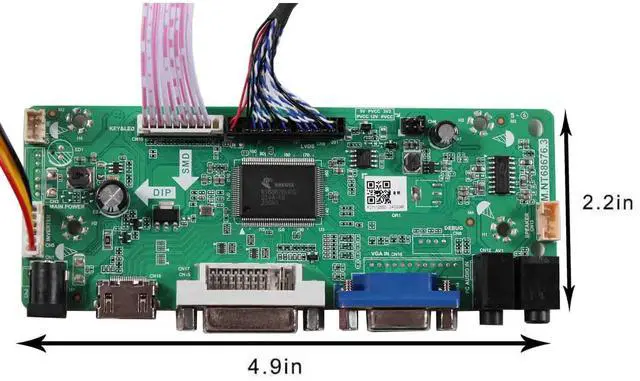

Board Size: 139mm x 53mm x 17mm

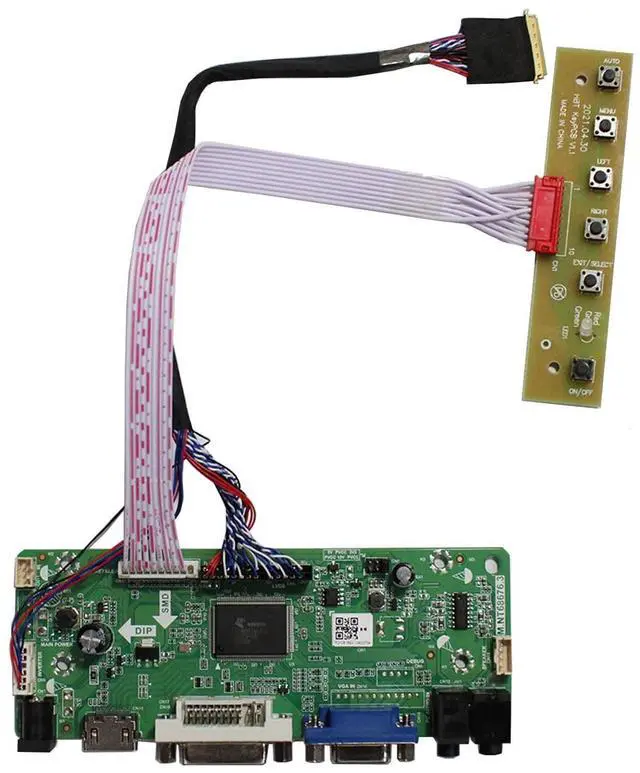

Packing list:

1× VGA DVI LCD Controller Board M. NT 68676.3 (new version)
1× 40Pin Signal Cable
1× Keyboard With Cable
