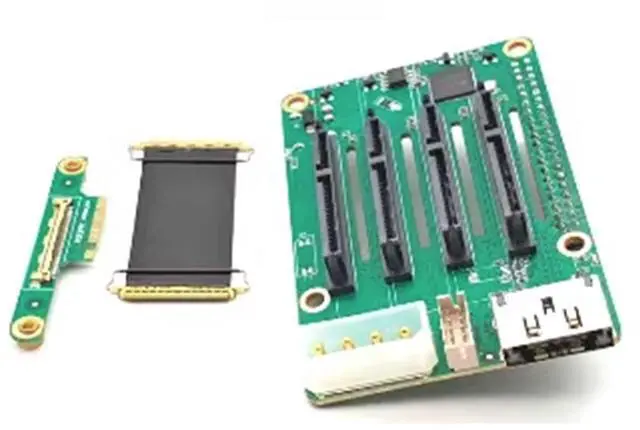

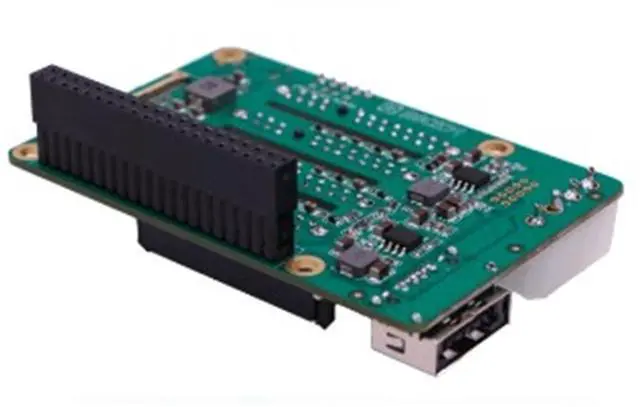

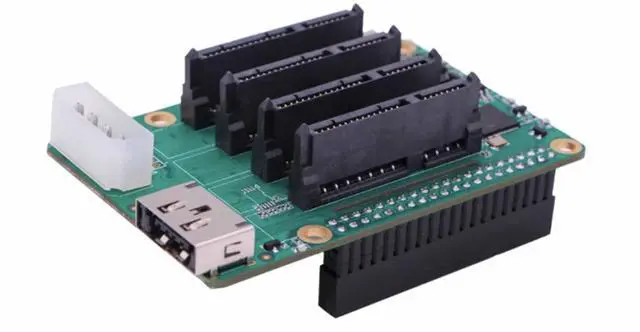

PENTA SATA HAT Expansion Board for ROCK PI 4 Development Board
- Package: 1pcs* PENTA SATA HAT Expansion Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction
Build your NAS based on Rock Pi 4 with up to 5 HDD/SSD and up to 100TB capacity.
The Penta SATA HAT utilizes the M. 2/PCIe interface on Rock Pi 4 to provide up to 5 SATA ports. This HAT works only with Rock Pi 4 mounted on the heat sink.
The concept of 4 internal SATA and one eSATAp design was chosen because it makes the setup more flexible for the use of external disks.
Features
-Up to 5x HDD/SSD, 2.5 inch and 3.5 inch storage is supported, max storage 100TB
-4x SATA
-1x eSATA with power
-utilizes two lanes of the PCIe 2.1 bus on Rock Pi 4
-DC power input with support for both 2.5 inch drives and ROCK Pi 4
-External standard ATX power supply support for 3.5 inch HDD
-HDD suspend mode support
-Software RAID 0/1/5 support
-Optional PWM control fan for HDD heat management
-Optional OLED display for IP / Store information
-PLEASE NOTE: You need to order the heat-sink with the Rock Pi 4 otherwise the Penta HAT can not be mounted on top!
Build your NAS based on Rock Pi 4 with up to 5 HDD/SSD and up to 100TB capacity.
The Penta SATA HAT utilizes the M. 2/PCIe interface on Rock Pi 4 to provide up to 5 SATA ports. This HAT works only with Rock Pi 4 mounted on the heat sink.
The concept of 4 internal SATA and one eSATAp design was chosen because it makes the setup more flexible for the use of external disks.
Features
-Up to 5x HDD/SSD, 2.5 inch and 3.5 inch storage is supported, max storage 100TB
-4x SATA
-1x eSATA with power
-utilizes two lanes of the PCIe 2.1 bus on Rock Pi 4
-DC power input with support for both 2.5 inch drives and ROCK Pi 4
-External standard ATX power supply support for 3.5 inch HDD
-HDD suspend mode support
-Software RAID 0/1/5 support
-Optional PWM control fan for HDD heat management
-Optional OLED display for IP / Store information
-PLEASE NOTE: You need to order the heat-sink with the Rock Pi 4 otherwise the Penta HAT can not be mounted on top!
