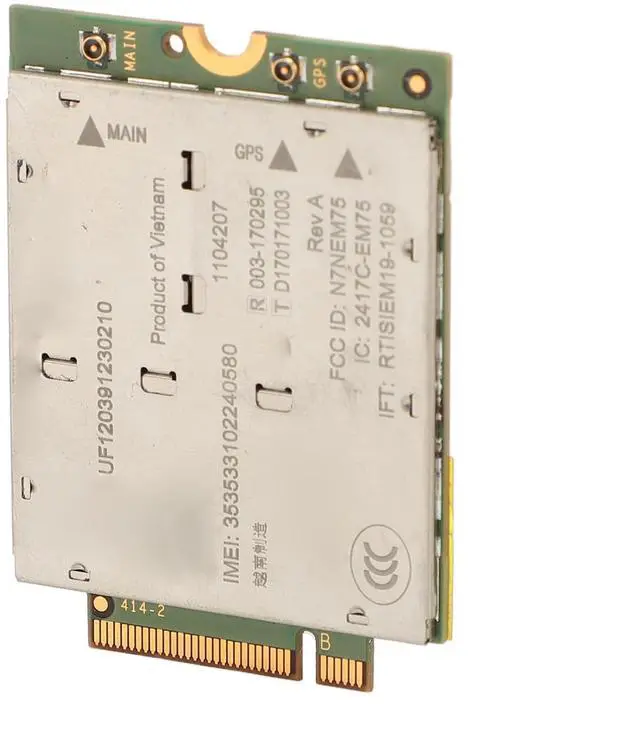

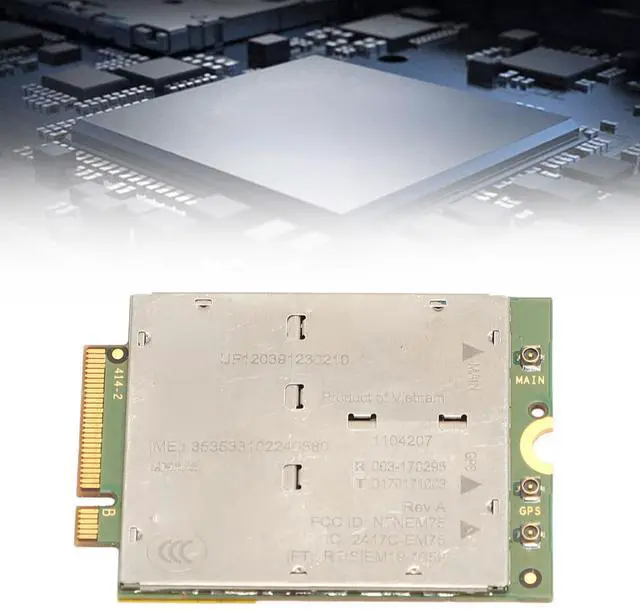

4G Module, EM7565 1104207 PCI Express M.2 Cat 12 4G LTE Network Card, with NGFF M.2 Interface, Global Coverage, 24 LTE Bands
- High Speed And Global Coverage: Global LTE Advanced Pro cellular module supporting high downlink speeds and global 4G coverage. Suitable for laptops with NGFF M2 interface.

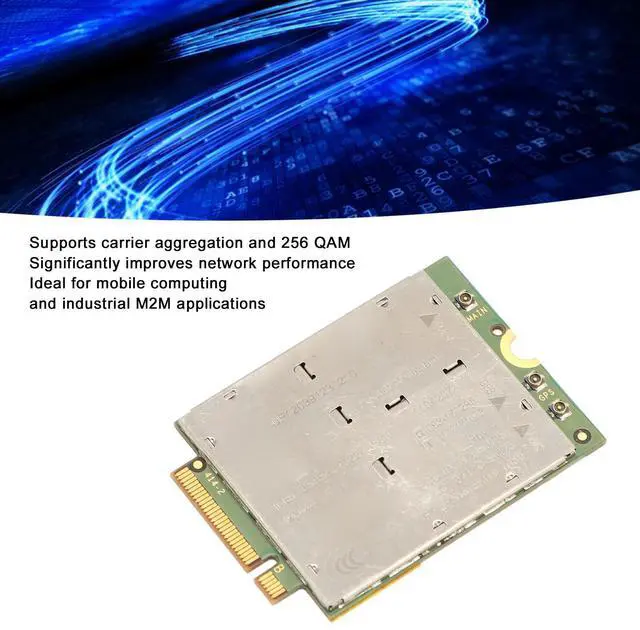

- Applications: This 4G module supports carrier aggregation and 256 QAM to significantly improve network performance for mobile computing and industrial M2M applications.

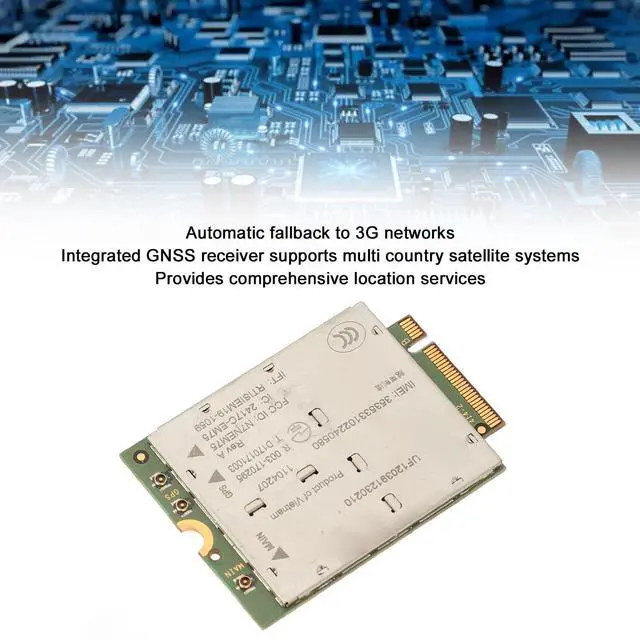

- GNSS Receiver: Supports automatic to 3G networks, and the integrated GNSS receiver supports multi country satellite systems for comprehensive location services.

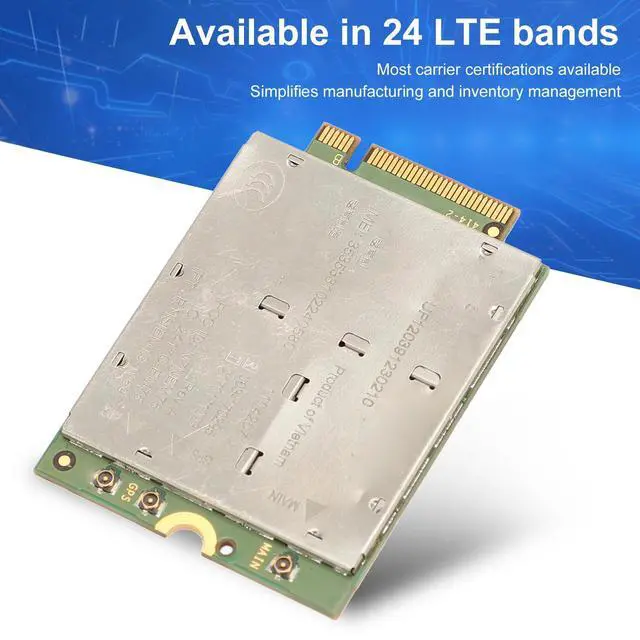

- 24 LTE Bands: Our 4G LTE module is available in 24 LTE bands with the most carrier approvals, simplifying manufacturing and inventory management to fully meet your usage requirements.
- Multi Function: This 4G module network card has a PCI Express M.2 form factor, supports secure firmware updates, flexible network switching capabilities, and multiple cloud services.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Specification:
Item Type: 4G Module
Material: PCB
Form Factor: PCI Express M. 2
Category: LTE Cat. 12
Chipset,
Processor: For Qualcomm MDM9250
Support LTE Bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Support 3G Bands: B1, B2, B3, B4, B5, B6, B8, B9
Data Rate: Peak Download Rate up to 600Mbps, Peak Upload Rate up to 150Mbps
Satellite Systems: for Galileo, for GLONASS, GPS, for eiDou
Interfaces: USB 3.0, USB 2.0 High Speed, SIM Interface x 1 ( 1.8V, 3V)
Antennae: Diversity, MIMO, GNSS Bias
Antennae Connectors: Main, Aux GNSS, GNSS
Temperature Range: -30°C, +70°C
System Drivers: For
Linux Drivers: Standard ECM, for Android RIL
How to Use:
Plug and play.
packing list:
1 x 4G Module
Specification:
Item Type: 4G Module
Material: PCB
Form Factor: PCI Express M. 2
Category: LTE Cat. 12
Chipset,
Processor: For Qualcomm MDM9250
Support LTE Bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Support 3G Bands: B1, B2, B3, B4, B5, B6, B8, B9
Data Rate: Peak Download Rate up to 600Mbps, Peak Upload Rate up to 150Mbps
Satellite Systems: for Galileo, for GLONASS, GPS, for eiDou
Interfaces: USB 3.0, USB 2.0 High Speed, SIM Interface x 1 ( 1.8V, 3V)
Antennae: Diversity, MIMO, GNSS Bias
Antennae Connectors: Main, Aux GNSS, GNSS
Temperature Range: -30°C, +70°C
System Drivers: For
Linux Drivers: Standard ECM, for Android RIL
How to Use:
Plug and play.
packing list:
1 x 4G Module
