UMLIFE 6pcs TEC1-12710 12V 10A 92W 40MMX40MM Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
- Chip model: TEC1-12710
- Dimensions: 40x40x3.4mm component logarithm 127
- Widely applications from CPU coolers to alternate power sources
- Umax (V): 15.4V; I max (A): 10A; Tmax (degree Celsius): 67; Max. power consumption: 154WButton Function: Long press the reset button for fast timing, and clear the capacity.
- Easy to install and use. Semiconductor material is sandwiched between the ceramic plates
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

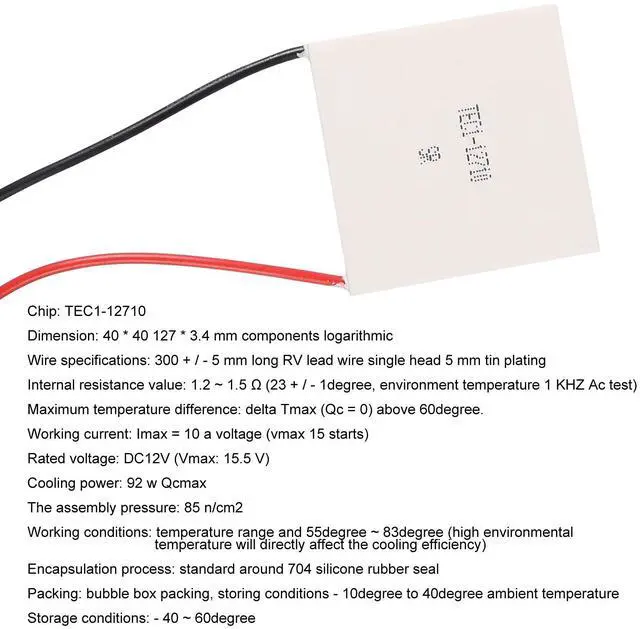

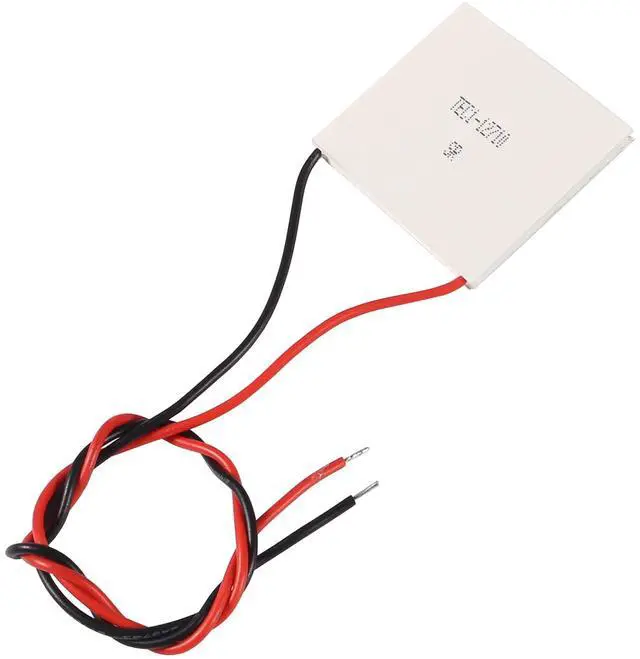

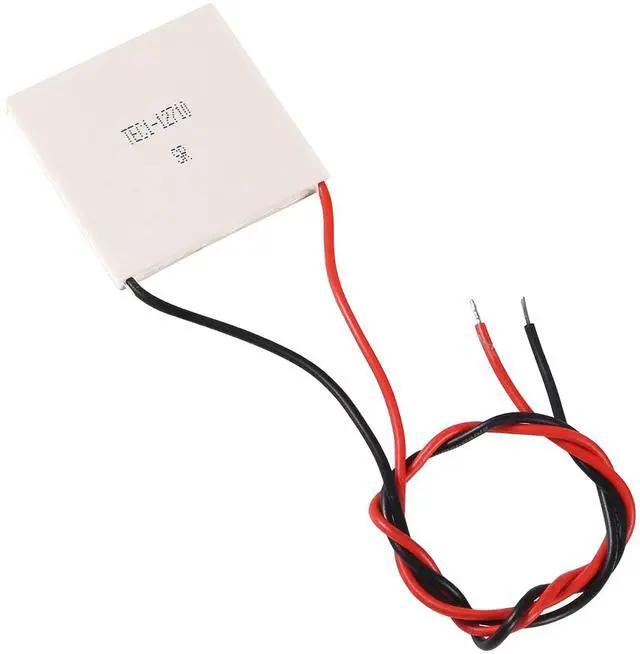

6PCS TEC1-12710 TEC Thermoelectric Heatsink Cooler Cooling Peltier Plate Module
Description:
Voltage: 12V
Vmax (V): 15.5V
Imax (A): 10A
Qmax (W): 92W

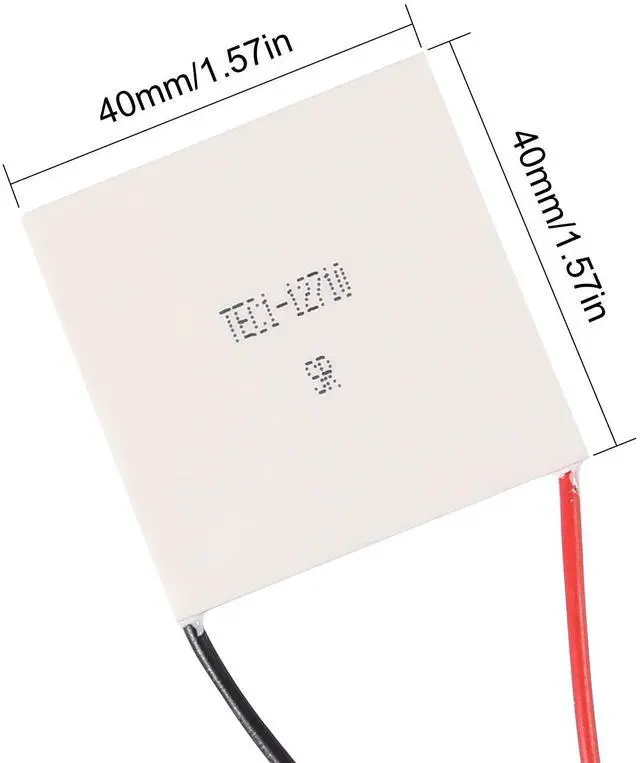

Dimensions: 40mm x 40mm x 3.4 mm
Power cord: 150mm
It can be used in CUP's/ Picnic cooler/ Drinks coolers/ Ice boxes/ Laser diodes/ CCD cameras and others.
Note: heat side requires heat sink all the time.
Testing which side is hot without heat sink can be done by connecting +12V or less and disconnect very fast in less then 2 seconds; otherwise, the tile will be burnt inside.
Package included:

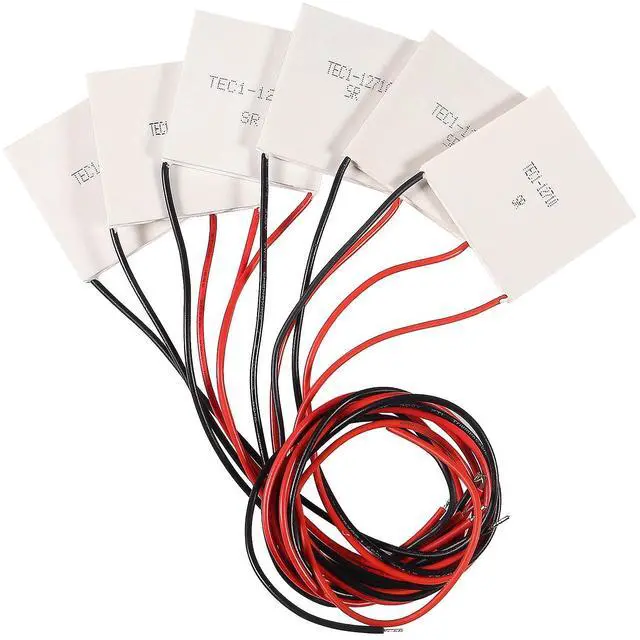

6pcs X TEC1-12710 Thermoelectric Cooler Peltier 12V
Description:
Voltage: 12V
Vmax (V): 15.5V
Imax (A): 10A
Qmax (W): 92W
Dimensions: 40mm x 40mm x 3.4 mm
Power cord: 150mm
It can be used in CUP's/ Picnic cooler/ Drinks coolers/ Ice boxes/ Laser diodes/ CCD cameras and others.
Note: heat side requires heat sink all the time.
Testing which side is hot without heat sink can be done by connecting +12V or less and disconnect very fast in less then 2 seconds; otherwise, the tile will be burnt inside.
Package included:
6pcs X TEC1-12710 Thermoelectric Cooler Peltier 12V
