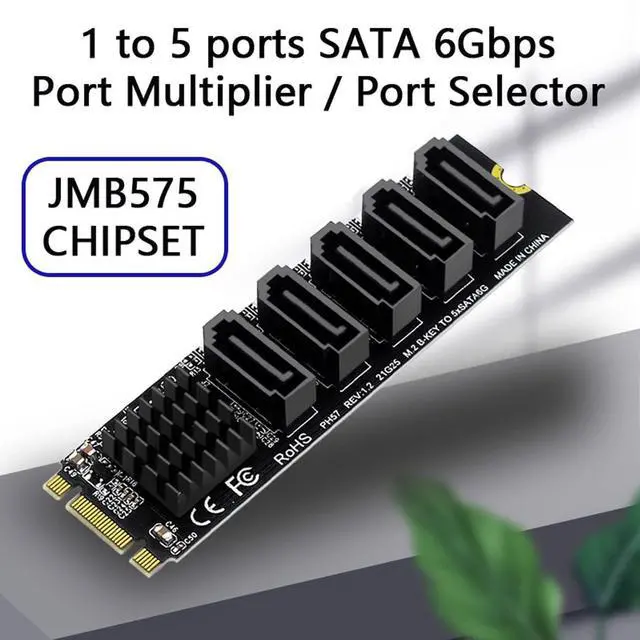

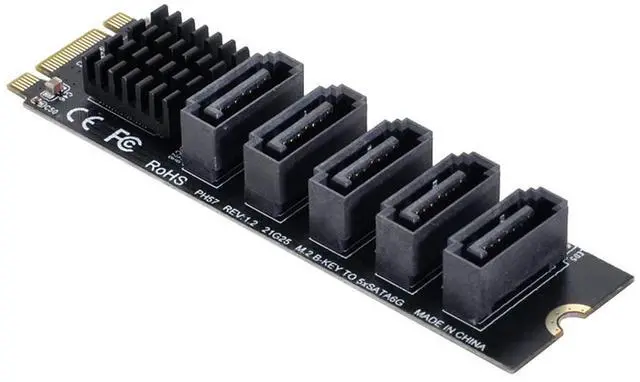

cablecc NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port JMB575 2280
- JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port .
- JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
- Key Features ·Comply with Serial ATA Port Spec. Revision 1.2 ·Comply with Serial ATA Port Spec. Revision 1.0 ·Support 6 port SATA 6Gbps interface ·Supports BIST and loopback mode ·Support command-based and FIS-based switching ·Support PM aware and non-PM aware host
- Main control chip: JMB575. Interface: 5 * SATA3.0 interface. Applicable slot: NGFF Key B+M.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port JMB575
JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port Selector.
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features
Comply with Serial ATA Port Spec. Revision 1.2
Comply with Serial ATA Port Spec. Revision 1.0
Support 6 port SATA 6Gbps interface
Supports BIST and loopback mode
Support command-based and FIS-based switching
Support PM aware and non-PM aware host

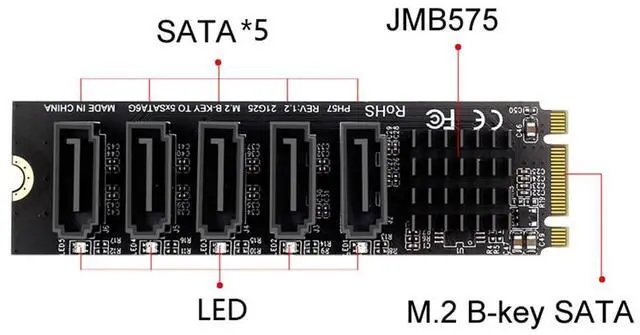

Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port Selector.
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features
Comply with Serial ATA Port Spec. Revision 1.2
Comply with Serial ATA Port Spec. Revision 1.0
Support 6 port SATA 6Gbps interface
Supports BIST and loopback mode
Support command-based and FIS-based switching
Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
