REVODATA 10G 90W PoE Injector, Convert Non-PoE to PoE++ Adapter, IEEE802.3af/at/bt Standard, 1/2.5/5/10Gbps Network via RJ45, Up to 100M Distance, Plug&Play (PSE90BT-10G)
- Multi-Gigabit PoE++ InjectorThis injector include 1× 10G Ethernet Input Port, and 1× 10G Ethernet Output port with PoE power, supports multi-speed Ethernet (1/2.5/5/10Gbps), output carry max 90W power supply distance up to 100 meter(328ft)
- Non-PoE to PoEConvert non-PoE to PoE by using this PoE Injector. It will convert a non-PoE Gigabit Ethernet port to a PoE Gigabit port that comply IEEE802.3af(15.4W)/at(30W)/bt(60-90W).
- Plug and PlayDon't need any manual configuration, just connect the injector with your PoE device(PoE Camera/AP/PTZ, etc.), your device will received PoE power and network.

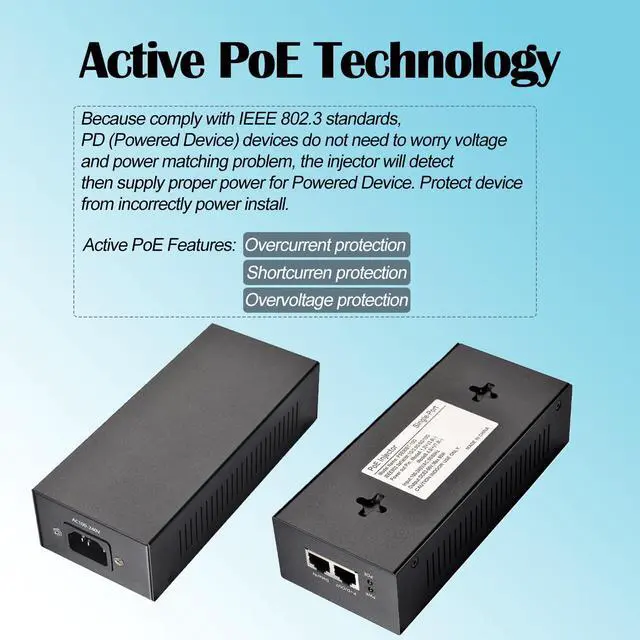

- Auto-Sensing Technology This PoE injector will auto detect the connected device. For PoE device that meets PoE standard, it will provide proper power supply up to 90W. For device that can't meet PoE standard, it will shut down to protect both equipment.
- Multiple ProtectionsSupport overcurrent protection, overcharge protection, overvoltage protection and anti-interfere
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OVERVIEW:

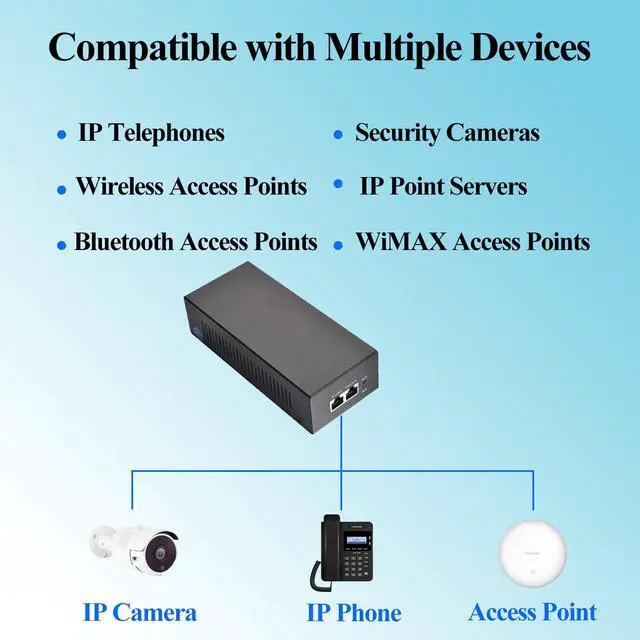

The PSE90BT-10G is a 1/ 2.5 /5/10Gbps Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE90BT-10G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones.
It complies with IEEE 802.3 bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11 n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators dont need to use AC power adapters anymore. For all the function featured in PSE90BT-10G, people can get the benefit of flexible network installation at lower cost, less downtime.
Model: PSE90BT-10G
Technical
IEEE 802.3 10Base-T Ethernet
IEEE 802.3 u 100Base-Tx Fast Ethernet
IEEE 802.3 af/at/bt Power over Ethernet
Connector: RJ-45 1/ 2.5 /5/10Gbps
Pin Assignment and Polarity: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Output Power Voltage: 54-57 VDC
Power: Mode-A+Mode-B 90 Watts Max.
Input Power AC Input Voltage: 100~240VAC
Requirements AC Input Current: 1.5A @ 100~240 VAC

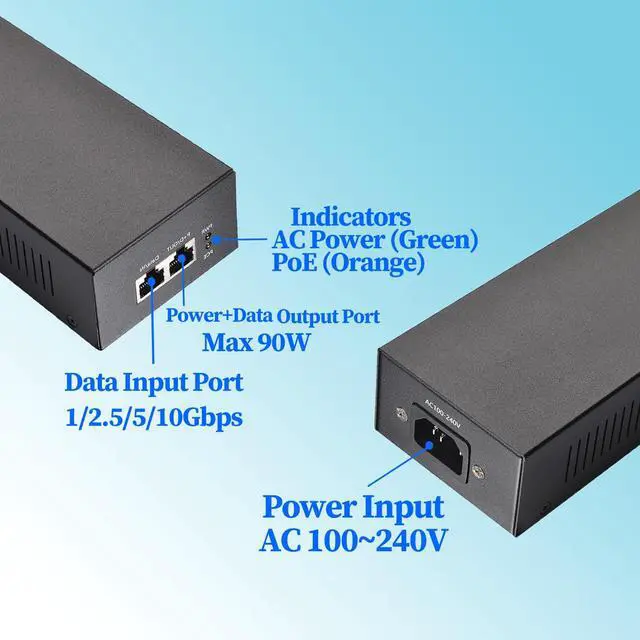

Indicators
AC Power (Green)
PoE (Orange)
Environmental Conditions
Operating Temperature: -20 ~55°C
Storage Temperature: -25 ~ 70°C
Storage Humidity: Maximum 95%, Non-condensing
Dimensions (L x W x H): 172mm x 76mm x 44mm ( 6.77 in x 2.99 in x 1.73 in)
Weight: 0.63 kg ( 1.39 lbs)
Package Content:
1 x PSE90BT-10G POE Injector
1 x Power Cable
The PSE90BT-10G is a 1/ 2.5 /5/10Gbps Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE90BT-10G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones.
It complies with IEEE 802.3 bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11 n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators dont need to use AC power adapters anymore. For all the function featured in PSE90BT-10G, people can get the benefit of flexible network installation at lower cost, less downtime.
Model: PSE90BT-10G
Technical
Specifications
Standards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3 u 100Base-Tx Fast Ethernet
IEEE 802.3 af/at/bt Power over Ethernet
Connector: RJ-45 1/ 2.5 /5/10Gbps
Pin Assignment and Polarity: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Output Power Voltage: 54-57 VDC
Power: Mode-A+Mode-B 90 Watts Max.
Input Power AC Input Voltage: 100~240VAC
Requirements AC Input Current: 1.5A @ 100~240 VAC
Indicators
AC Power (Green)
PoE (Orange)
Environmental Conditions
Operating Temperature: -20 ~55°C
Storage Temperature: -25 ~ 70°C
Storage Humidity: Maximum 95%, Non-condensing
Dimensions (L x W x H): 172mm x 76mm x 44mm ( 6.77 in x 2.99 in x 1.73 in)
Weight: 0.63 kg ( 1.39 lbs)
Package Content:
1 x PSE90BT-10G POE Injector
1 x Power Cable
