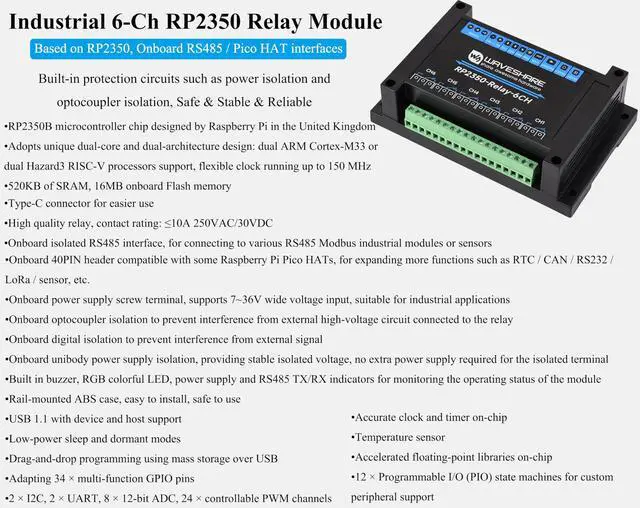

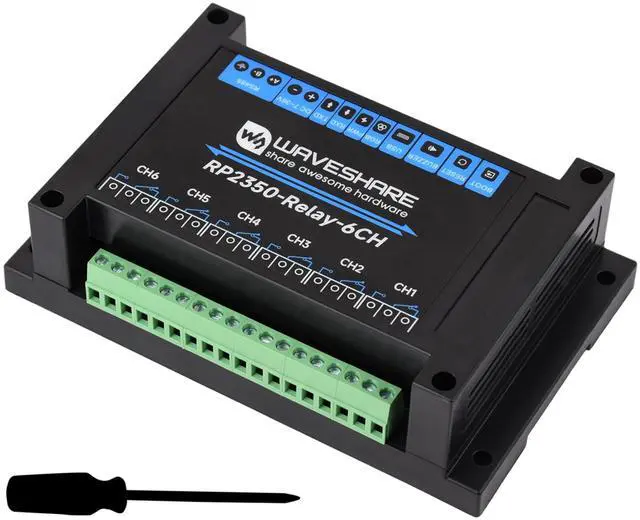

Industrial 6-Channel RP2350 Relay Module, Onboard RS485/Pico HAT Interfaces, Compatible with Raspberry Pi Pico Hats, Expanding RTC/CAN / RS232 / LoRa/Sensor, RS485,etc. Multi Protection Circuits

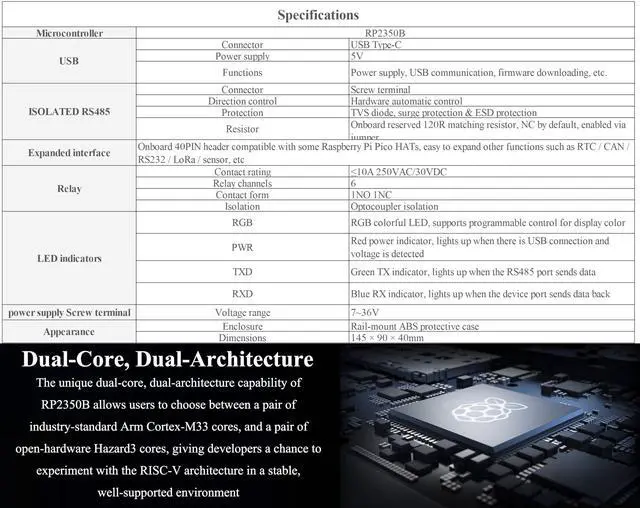

- RP2350B Microcontroller Chip: Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz. 520KB of SRAM, 16MB onboard Flash memory.

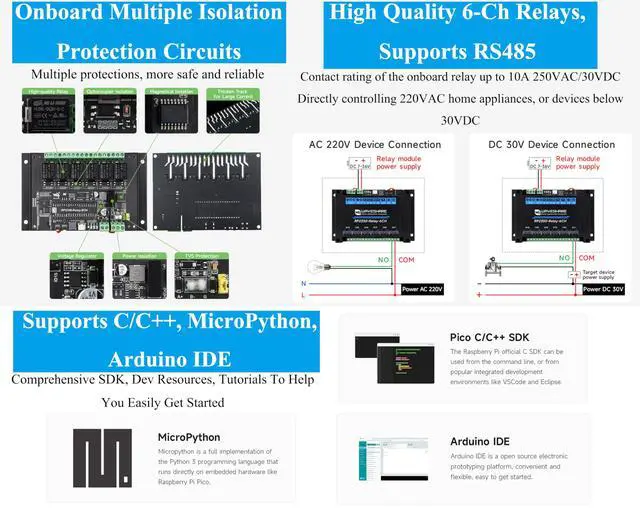

- 6-Ch Relays Features: High quality 6-Ch relays, supports RS485. Contact rating of the onboard relay up to 10A 250VAC/30VDC. Directly controlling 220VAC home appliances, or devices below 30VDC.

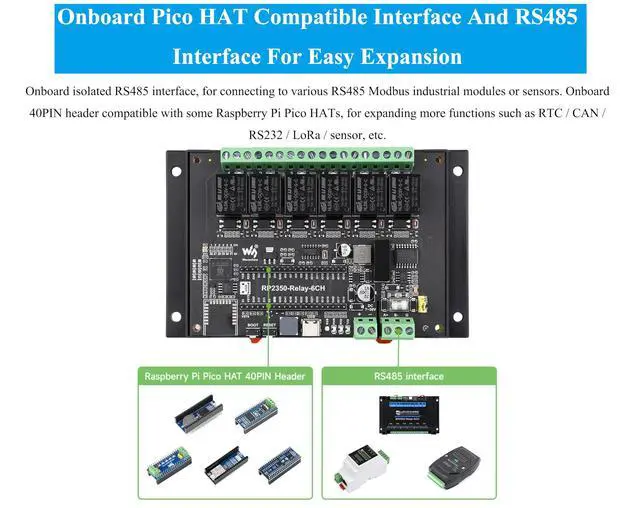

- Multi Interfafces: Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with Raspberry Pi Pico HATs, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc. Type-C connector for easier use. Drag-and-drop programming using mass storage over USB.
- Power Management: Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications. Onboard unibody power supply isolation, providing stable isolated voltage, no extra
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial 6-Channel RP2350 Relay Module, Onboard RS485/Pico HAT Interfaces, Compatible with Raspberry Pi Pico Hats, Expanding RTC/CAN / RS232 / LoRa/Sensor, RS485, etc. Multi Protection Circuits
