VGA Audio Controller Board for 1920x1080 LM215WF4-TLE9 LM230WF5-TLD1 M236HGE-L10 30Pins LVDs LCD Screen 21.5" 23" 23.6"
- DVI VGA AUDIO LCD Board Work for 21.5" 23" 23.6" 1920x1080 LVDS Interface LCD Screen. Video Input: DVI VGA. .Power adapter:12Vdc more than 2A. port size :5.5x2.1mm,Pls prepared by yourself.
- Compatible screen model no.:LM215WF4-TLE9 LM215WF4-TLE7 LM215WF4-TLE8 LM215WF3-SLC1 LM215WF3-SLC5 LC230EUE-TDA1 LM230WF5-TLD1 LM230WF5-TLD2 LM230WF3-SLB2 LM230WF5-TLD5 M236HGE-L10 M236HGE-L20
- Compatible parts: Speaker: Speaker 8ohm 2W 4Pin PH2.0 connection; Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case
- Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.If you can't make sure ,Pls confirm with us via Amazon message
- Any question during using just keep us informed via Amazon message ,and pls provide your screen model no. and cable connecting pictures ,then we will check and give you best solution in 12hours
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board:
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input: H/D
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

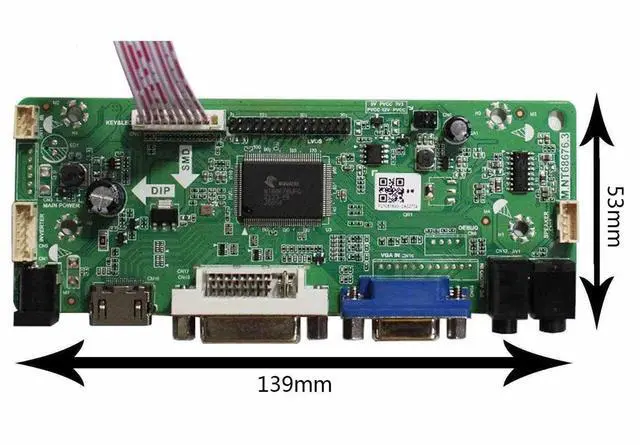

Board Size: 139mm x 53mm x 17mm
Compatible Work With:
21.5 inch 1920x1080:
LM215WF4-TLE9 LM215WF4-TLE7 LM215WF4-TLE8 LM215WF3-SLC1 LM215WF3-SLC5
23inch 1920x1080:
LC230EUE-TDA1 LM230WF5-TLD1 LM230WF5-TLD2 LM230WF3-SLB2 LM230WF5-TLD5
23.6 inch 1920x1080:
M236HGE-L10 M236HGE-L20

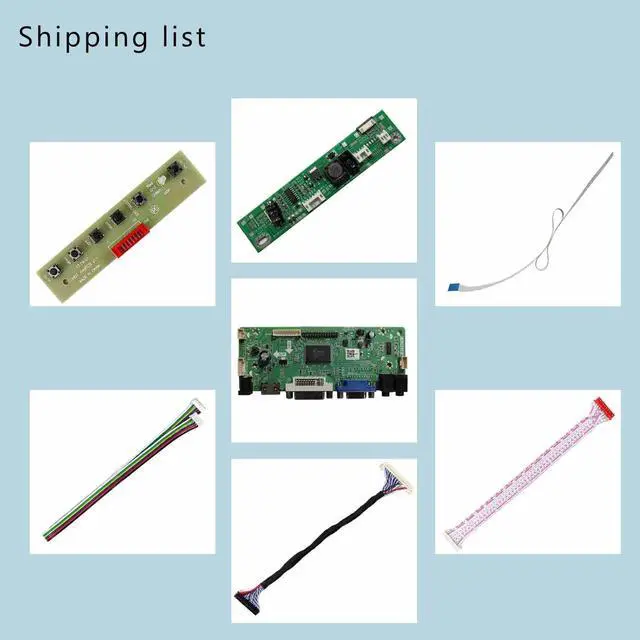

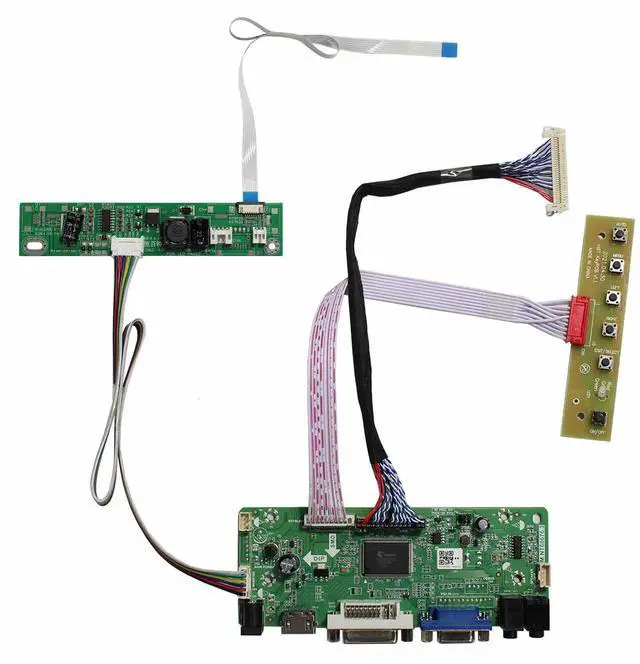

Packing list:
1× VGA DVI LCD Controller Board
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input: H/D
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
21.5 inch 1920x1080:
LM215WF4-TLE9 LM215WF4-TLE7 LM215WF4-TLE8 LM215WF3-SLC1 LM215WF3-SLC5
23inch 1920x1080:
LC230EUE-TDA1 LM230WF5-TLD1 LM230WF5-TLD2 LM230WF3-SLB2 LM230WF5-TLD5
23.6 inch 1920x1080:
M236HGE-L10 M236HGE-L20
Packing list:
1× VGA DVI LCD Controller Board
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
