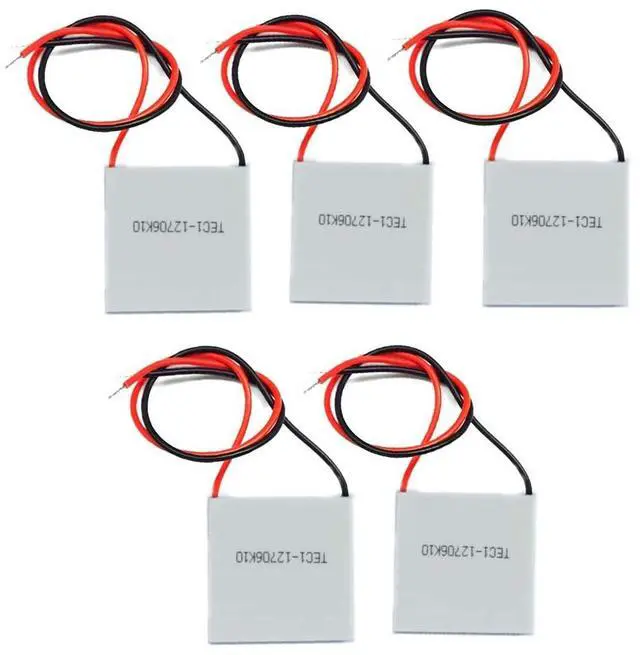

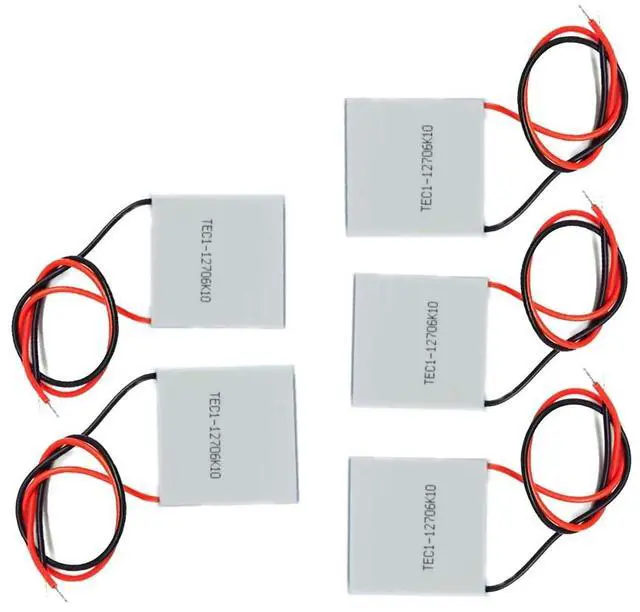

Kiro&Seeu 5pcs TEC1-12706 Heatsink Semiconductor Refrigeration Tablets 5.8A 12 Volt 60W Watt Thermoelectric Cooler Cooling Peltier Plate Module 40x40MM, (EC112706-MD-5pcs)
- Model: TEC1-12706
- Size: 40mm x 40mm x 3.6mm
- Working current: 4.3-4.6 A (rated 12 v), Imax: 4.5A
- Rated voltage: DC12V (Vmax: 15 v starting current 5.8 A)
- Refrigeration power: Qcmax 50-60W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Color: w/Thermal
Conductive PadDescription: External
dimensions: 1.6 x 1.6 x 0.1IN
Internal resistance: 2.1 ~ 2.4OHM (ambient temperature of 23 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc 0) above 59 'C.
Working current: Imax 4.3 - 4.6A (rated at 12V)
Rated voltage: 12V
(Vmax: 15V starting current 5.8A )
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency
Thermal Conductive Pad Description:
Size: 1.57 x 1.57 x 0.02 inch (40x40x 0.5 mm). Can be applied for thermal interface of 40mm heat sink with stepper motors of 3D printers, NEMA 17, TEC1-12706 Thermoelectric Peltier Cooler etc
Package Included: 2 x TEC1-12706 Thermoelectric Cooler 5 x Thermal Conductive Pad
Conductive PadDescription: External
dimensions: 1.6 x 1.6 x 0.1IN
Internal resistance: 2.1 ~ 2.4OHM (ambient temperature of 23 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc 0) above 59 'C.
Working current: Imax 4.3 - 4.6A (rated at 12V)
Rated voltage: 12V
(Vmax: 15V starting current 5.8A )
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency
Thermal Conductive Pad Description:
Size: 1.57 x 1.57 x 0.02 inch (40x40x 0.5 mm). Can be applied for thermal interface of 40mm heat sink with stepper motors of 3D printers, NEMA 17, TEC1-12706 Thermoelectric Peltier Cooler etc
Package Included: 2 x TEC1-12706 Thermoelectric Cooler 5 x Thermal Conductive Pad
