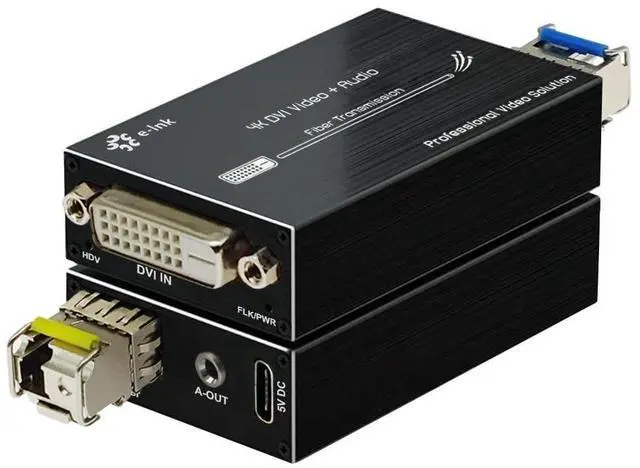

4K DVI Fiber Extender - DVI to Fiber Converter, Ultra HD DVI Video Optical Transceiver, Up to 20km over Single-Mode DVI Fiber Extender with External Stereo Audio

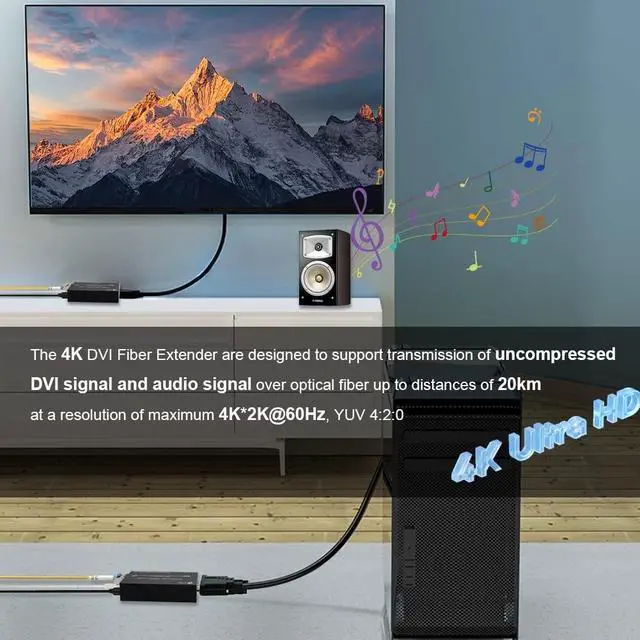

Overview: The fiber extender provides extension of DVI signals, audio via single fiber optic cable, high resolution up to 4k*2k@60Hz, which can be used for a wide range of applications requiring long distance stable transmission of high resolution real time video. The device has the ability of anti-interference to ensure the stability of the signal, is ideal for large-screen display, conferencing systems and home entertainment and so on.
Features: -- Transmits DVI video signals, audio up to 20km over a single fiber optic cable-- Uncompressed transmission, no delay, no losses-- Support external stereo audio transmission-- Support video resolution up to 4k*2k@60Hz, YUV
4:2: 0-- Hot-Pluggable, EMI/RFI Resistant-- Compliance with DVI 1.0 and HDCP 1.2 standard-- High compatibility, can auto-match source and display device-- Support EDID, DDC and
HPDT signalSpecifications:

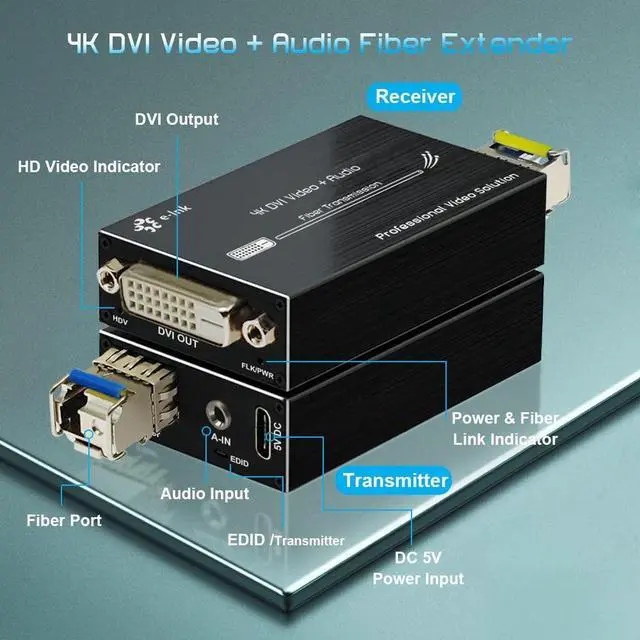

Connector: DVI -DAudio
Interface: 3.5MM external stereo audioFiber
Connector: SFP/LCPower
Input: 5V DC,
USB Type-CBandwidth: 10.2G bpsTransmission
Distance: Up to 20km (Over
Single-mode Fiber)Power Dissipation: <5WSignal
Support: DVI 1.0 format standard and HDCP compliantAudio
Support: Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)Video
Support: Up to 720P/960P/1080p@60Hz, 4K*2K@60HzChroma
Subsampling: Max
3840*2160@60Hz ( 4:2: 0)Max
3840*2160@30Hz ( 4:4: 4, 4:2:
2)EDID: Bi-Directional (Forward +
Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learnSingle-Directional (Forward)
Transmission: Support

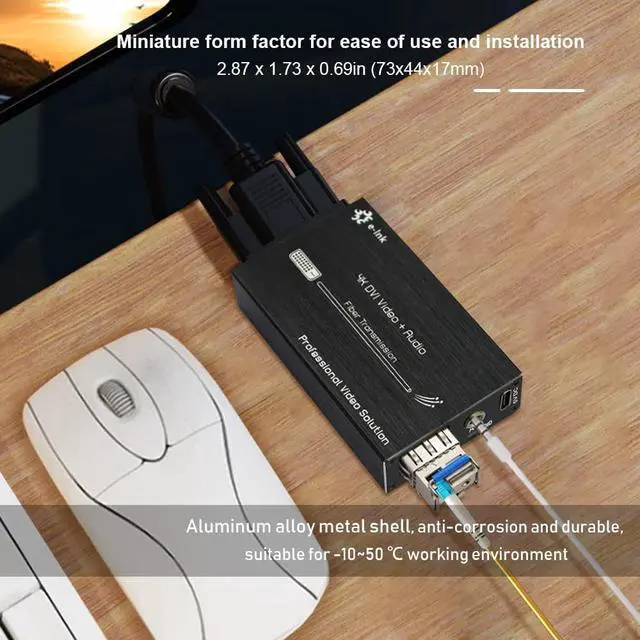

EDID learning manuallyDimensions (LxWxH): 2.87 x 1.73 x 0.69 in (73x44x17mm)
Operating Temperature: -10~50C
