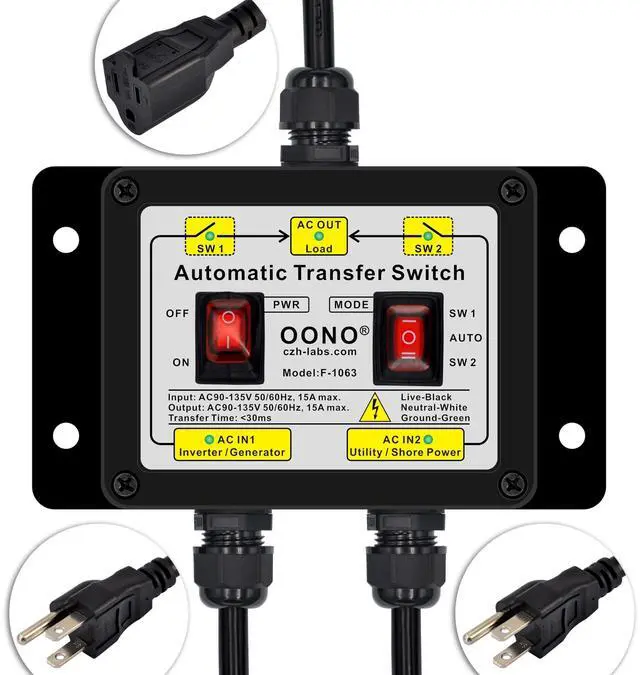

Manual and Automatic Transfer Switch, AC120V 15A ATS Auto Transfer Switch (NEMA 5-15P + 5-15R)

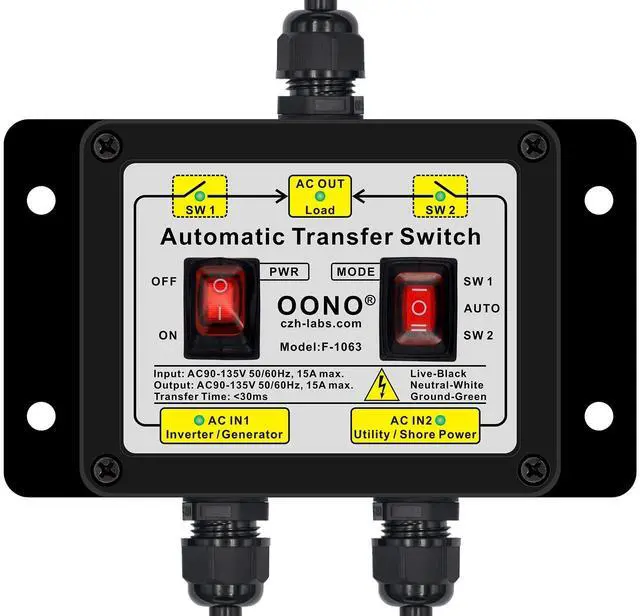

OONO F-1063B Manual and automatic transfer switch, an easy to mount 15 Amp inline transfer module provides switching between AC IN1 (Inverter or Generator) and AC IN2 (Utility or Shore Power) AC source. With input and output and switch status indicators. It has a manual power switch function, which can quickly control the on and off of the output. With the function of automatic and manual working mode, the product can work in automatic mode, and the input source can also be selected manually. ^^ Automatic mode (MODE switch set to
AUTO): when AC IN2 (Utility or Shore Power) is powered, the load power will be switched to AC IN2, when AC IN2 is powered off, the load power will be switched to AC IN1 (Inverter or Generator). Manual mode (MODE switch set to SW1 or

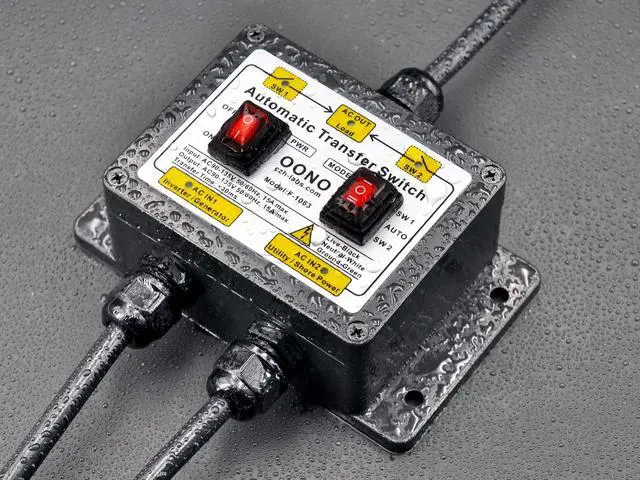

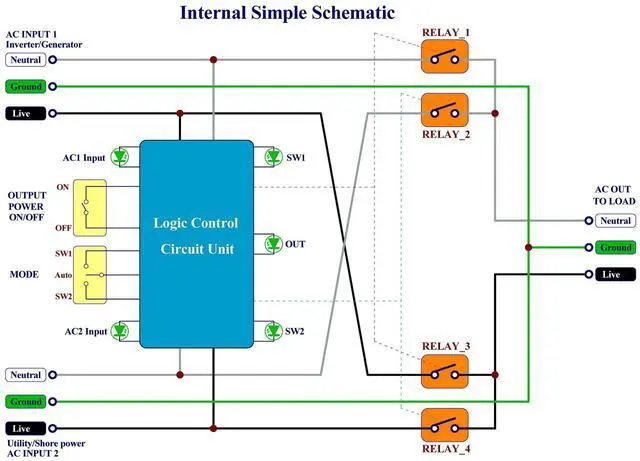

SW2): You can manually select AC IN1 (Inverter or Generator) or AC IN2 (Utility or Shore Power) as the input source according to your needs. ^^ Operating voltage AC 90 to 135V 50/60Hz. Maximum current 15 Amp. Transfer time less than 30mS ( 0.03 second), for most smart devices or computers, the switching action of 30mS time will not affect their normal operation. ^^ Internal four high power SPST relays switch design, effectively avoid the problem of DPDT relay high inductive load arcing. Live and Neutral wire are switched at the same time. The Ground wires of the two inputs and output are connected together internally and will not follow the switch on and off. ^^ IP66 waterproof level design, suitable for indoor or outdoor use. AC INPUT 1 and

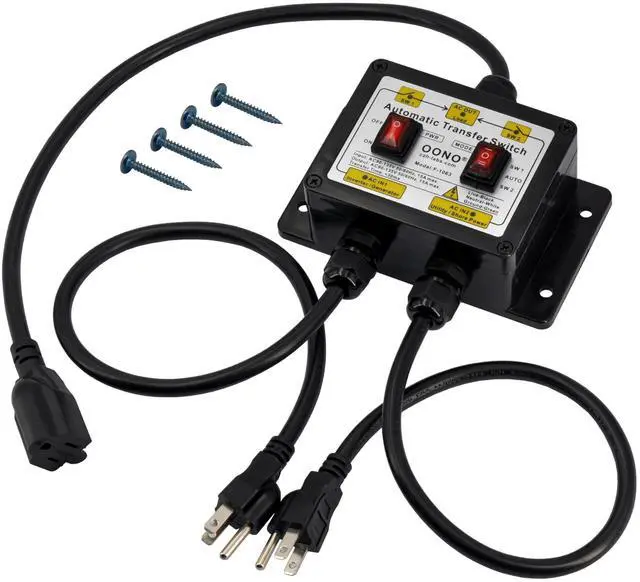

AC INPUT 2 cables: Length 19 inch ( 0.5 meter), US standard NEMA 5-15P 3 prong plugs.
AC OUTPUT cable: Length 19 inch ( 0.5 meter), US standard NEMA 5-15R 3 prong socket.
