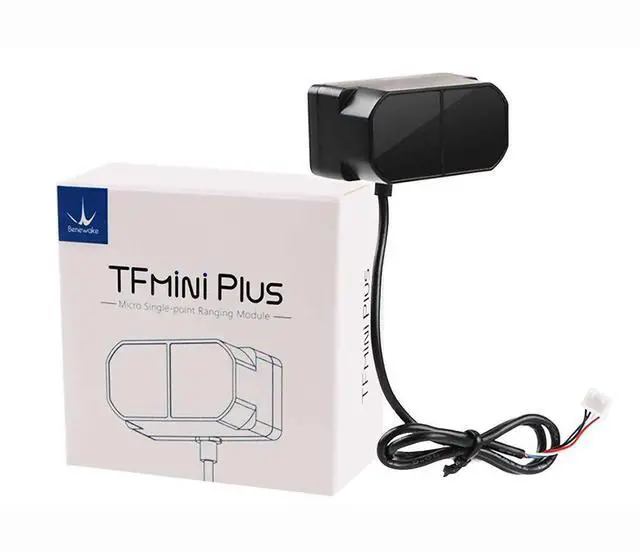

Benewake TFmini Plus LiDAR Module Laser Radar - 12m Range Waterproof IP65 UART/I2C/I/O Interfaces, for Pixhawk,Robotics, Drones, and Industrial Automation

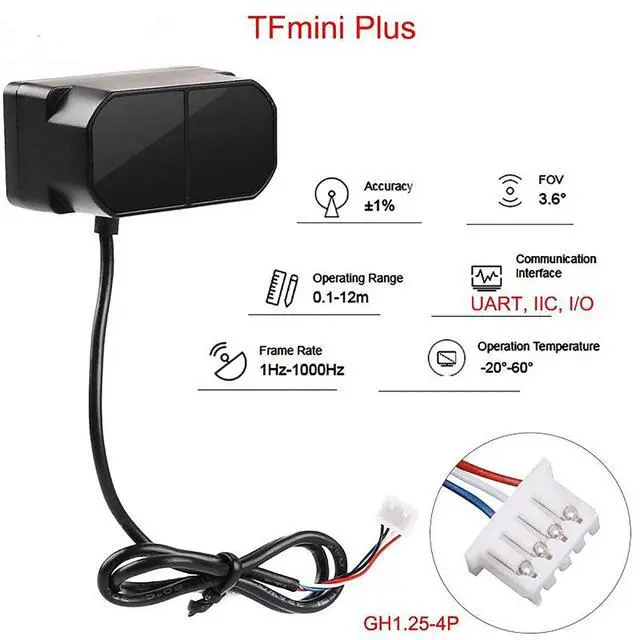

- High Precision Measurement: Measures distances from 0.1m to 12m with accuracy up to 5cm (0.1-6m) and 1% (6-12m).
- Multiple Communication Interfaces: Supports UART (default), I2C, and I/O modes for flexible integration with A rduino, Raspberry Pi, and other controllers
- Robust Design: IP65-rated enclosure (dust/water-resistant) and ABS+PC material for durability in harsh environments.
- Low Power Consumption: Only 550mW in low-power mode, ideal for battery-operated devices like drones and mobile robots.
- High-Speed Sampling: Adjustable frame rate from 1Hz to 1000Hz for real-time applications.
- Ambient Light Immunity: Operates reliably under 70klux ambient light (e.g., direct sunlight).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

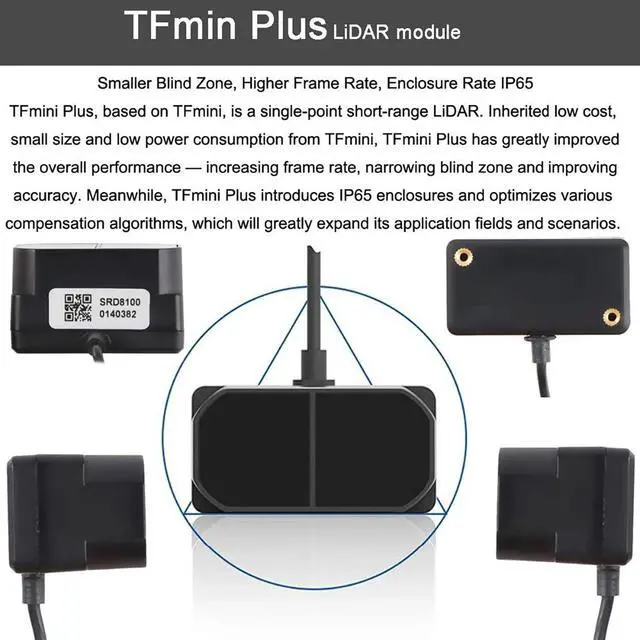

Product DescriptionThe TFmini Plus is a breakthrough in cost-effective LiDAR technology, combining high performance with compact design. Based on Time-of-Flight (TOF) principle, it emits modulated infrared light to calculate distances with minimal error. Designed for robotics, drones, smart vehicles, and industrial automation, it delivers stable data even in challenging conditions. Key ApplicationsObstacle Avoidance for robots and dronesDistance Mapping in IoT and smart devicesIndustrial Automation (e. g., conveyor belt monitoring)Research and Education (e. g., A rduino/Raspberry Pi projects)Technical
HighlightsLight Source: 850nm infrared LED with narrow 3.6 field of view for precise targeting.
Data Output: Standard 9-byte hexadecimal format (distance, strength, temperature) or ASCII string mode (Pixhawk compatibility).
Temperature Compensation: Built-in sensor for accurate readings in -20C to 60C environments.
Customizable Parameters: Adjust frame rate, baud rate (9600-921600bps), and communication mode via simple commands.

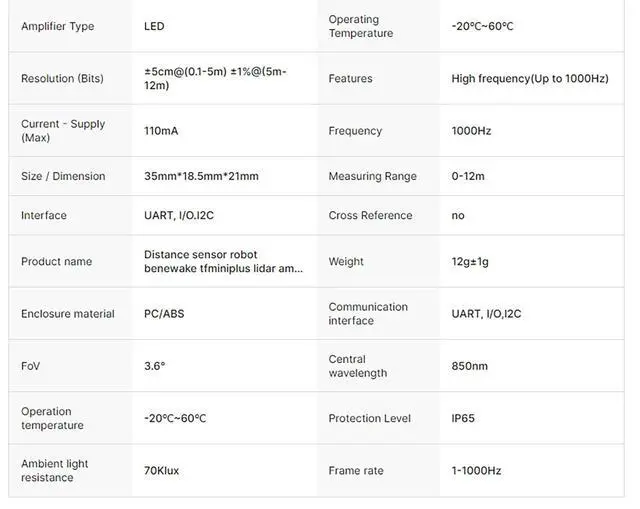

Technical SpecificationsOperating Range: 0.1
m12m (90% reflectivity)Accuracy: 5cm ( 0.1 -6m), 1%
(6-12m)Resolution: 5mmFrame
Rate: 11000Hz (programmable)
FOV: 3.6P ower
Supply: 5V 0.5VC ommunication
Interfaces: UART (default), I2C, I/OBaud
Rate: 115200 (default), adjustableEnclosure
Rating:
IP65Weight: 12gCable

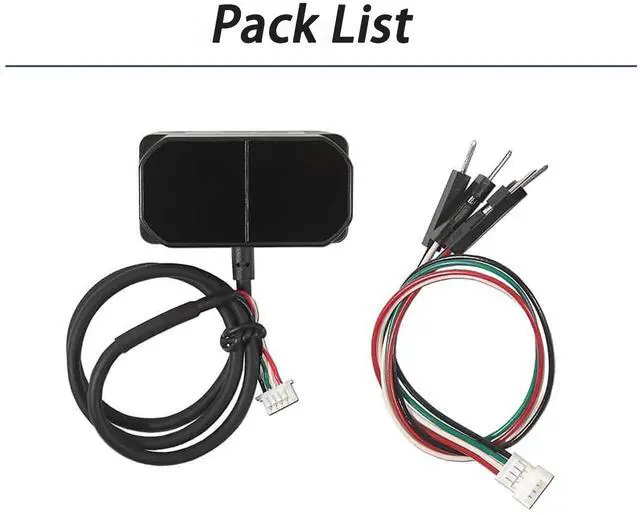

Length: 30cmPackage Contents1 TFmini Plus LiDAR Module1 30cm 4-pin Cable (GH 1.25 connector)1 Quick Start Guide (online manual available)
HighlightsLight Source: 850nm infrared LED with narrow 3.6 field of view for precise targeting.
Data Output: Standard 9-byte hexadecimal format (distance, strength, temperature) or ASCII string mode (Pixhawk compatibility).
Temperature Compensation: Built-in sensor for accurate readings in -20C to 60C environments.
Customizable Parameters: Adjust frame rate, baud rate (9600-921600bps), and communication mode via simple commands.
Technical SpecificationsOperating Range: 0.1
m12m (90% reflectivity)Accuracy: 5cm ( 0.1 -6m), 1%
(6-12m)Resolution: 5mmFrame
Rate: 11000Hz (programmable)
FOV: 3.6P ower
Supply: 5V 0.5VC ommunication
Interfaces: UART (default), I2C, I/OBaud
Rate: 115200 (default), adjustableEnclosure
Rating:
IP65Weight: 12gCable
Length: 30cmPackage Contents1 TFmini Plus LiDAR Module1 30cm 4-pin Cable (GH 1.25 connector)1 Quick Start Guide (online manual available)
