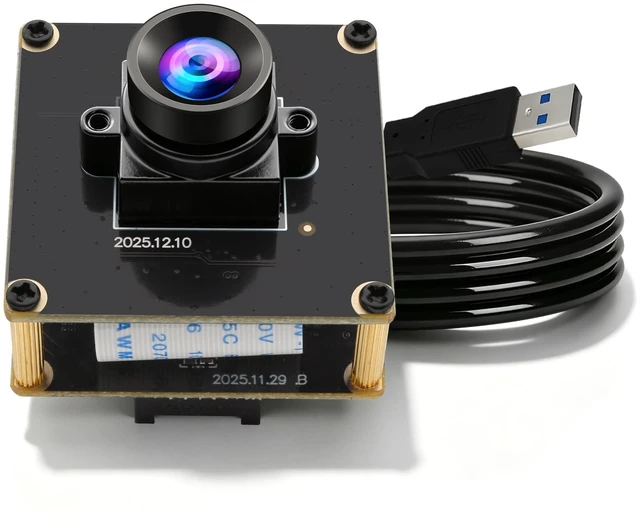

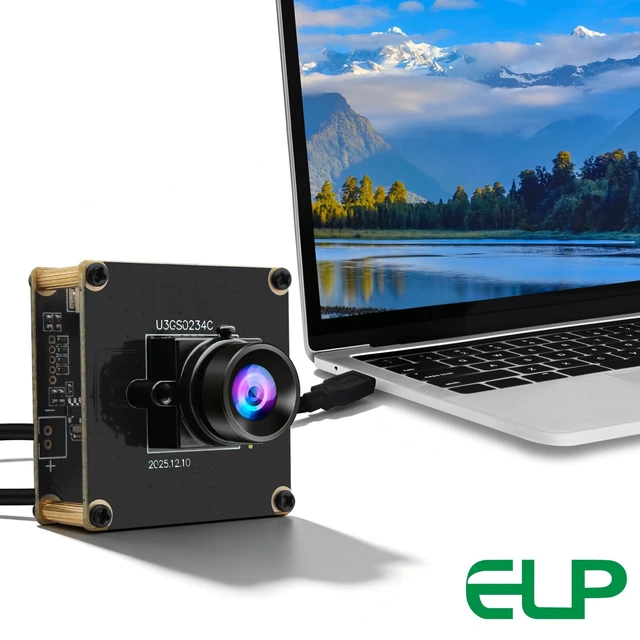

ELP 200FPS Global Shutter USB3.0 Camera Module for Computer Wide Angle 2.1mm Lens Webcam Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras 1200P/120fps HD/200fps AR0234 Webcamera for Laptop
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

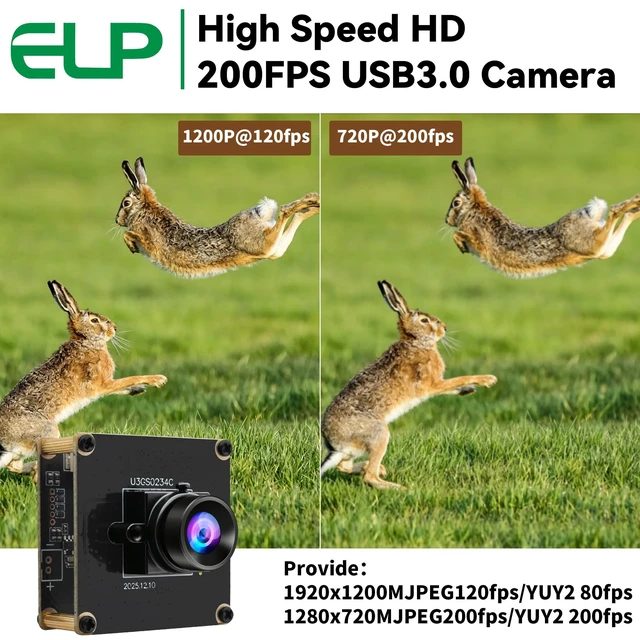

- FHD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 200fps@1280x720, YUY2 200fps@1280x720, MJPEG 120fps@1920x1200/1080P, YUY2 80fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting.
- Wide Angle 2.1mm lens, HFOV about 120degree, mini usb camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.

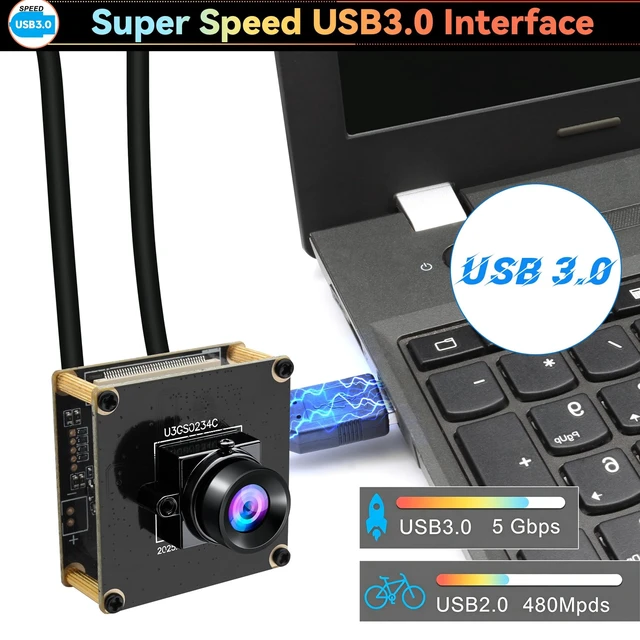

- USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
- Adopt high quality 1/2.6 Aptina AR0234 high quality sensor for sharp clear image.
- USB3.0 Type C connector, equipped with 1.2m Type C USB 3.0 cable, Support OTG optional.
- Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.
- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Ras
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

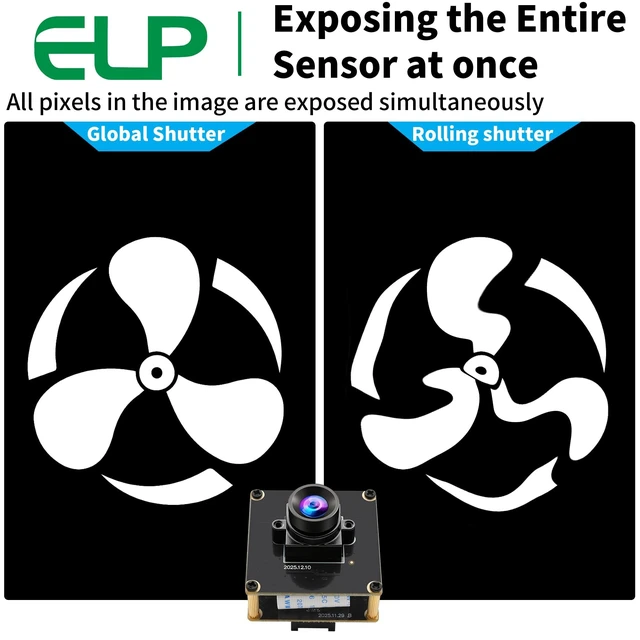

A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning thesensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free ofdistortion caused by motion during exposure. It can avoid smearing when capturing high-speed motion.
Product Model: ELP-U3GS0234C-L21Product
Name: 1200P Global Shutter 120FPS USB
Zoom CameraMain SpecificationsSensor: Aptina AR0234 (1/ 2.6 )
Global ShutterMax Resolution: 1920 (H) *1200 (V)
Sensor Size: 1/ 2.6 inch ( 4:3 )Pixel
Size: 3.0 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: USB 3.01920 x1200 MJPEG 120fps/YUY2 80fps1920x1080 MJPEG 120fps/YUY2 80fps1600x1200 MJPEG 120fps/YUY2 80fps1280x960 MJPEG 120fps/YUY2 120fps1280x720 MJPEG 200fps/YUY2 200fps640x480 MJPEG 200fps/YUY2 200fps512x512 MJPEG 120fps/YUY2 120fpsResolution &
Frame rate: USB 2.01920 x1200 MJPEG 120fps/ YUY2 5fps1920x1080 MJPEG 120fps/ YUY2 5fps1600x1200 MJPEG 120fps/ YUY2 5fps1280x960 MJPEG 120fps/ YUY2 5fps1280x720 MJPEG 200fps/ YUY2 10fps640x480 MJPEG 200fps/ YUY2 30fps512x512 MJPEG 120fps/ YUY2 10fpsSurface
Mount Technology: SMT
Interface & Connector: USB 3.0 Type C Port (USB 3.0 20-Pin
Connector optional)Focus: FixedCentral
Definition: 600LW/PH (Center)
S/N Ratio: 37dBDynamic
Range:
70dBSensitivity: 1.4V /lux-sec@550nmMin
Illumination: 0.3
luxShutter: Global
ShutterInterface: USB 3.0
InterfaceAEC/AWB/AGC: SupportAdjustable
Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: 180degree wide angle fisheye lensLED board power connector: Support 2P- 2.0 mm socketPower
Supply: USB Type-C
Power SupplyOperating Voltage: DC 5VWorking
Current: 165mA-
210mADimension: 38mm x 38mmx 48.4 mmStorage
Temperature: -20C to 80CWorking
Temperature: -10C to 70CUSB
Cable: 1.2MO perating System RequestWin10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
Product Model: ELP-U3GS0234C-L21Product
Name: 1200P Global Shutter 120FPS USB
Zoom CameraMain SpecificationsSensor: Aptina AR0234 (1/ 2.6 )
Global ShutterMax Resolution: 1920 (H) *1200 (V)
Sensor Size: 1/ 2.6 inch ( 4:3 )Pixel
Size: 3.0 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: USB 3.01920 x1200 MJPEG 120fps/YUY2 80fps1920x1080 MJPEG 120fps/YUY2 80fps1600x1200 MJPEG 120fps/YUY2 80fps1280x960 MJPEG 120fps/YUY2 120fps1280x720 MJPEG 200fps/YUY2 200fps640x480 MJPEG 200fps/YUY2 200fps512x512 MJPEG 120fps/YUY2 120fpsResolution &
Frame rate: USB 2.01920 x1200 MJPEG 120fps/ YUY2 5fps1920x1080 MJPEG 120fps/ YUY2 5fps1600x1200 MJPEG 120fps/ YUY2 5fps1280x960 MJPEG 120fps/ YUY2 5fps1280x720 MJPEG 200fps/ YUY2 10fps640x480 MJPEG 200fps/ YUY2 30fps512x512 MJPEG 120fps/ YUY2 10fpsSurface
Mount Technology: SMT
Interface & Connector: USB 3.0 Type C Port (USB 3.0 20-Pin
Connector optional)Focus: FixedCentral
Definition: 600LW/PH (Center)
S/N Ratio: 37dBDynamic
Range:
70dBSensitivity: 1.4V /lux-sec@550nmMin
Illumination: 0.3
luxShutter: Global
ShutterInterface: USB 3.0
InterfaceAEC/AWB/AGC: SupportAdjustable
Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: 180degree wide angle fisheye lensLED board power connector: Support 2P- 2.0 mm socketPower
Supply: USB Type-C
Power SupplyOperating Voltage: DC 5VWorking
Current: 165mA-
210mADimension: 38mm x 38mmx 48.4 mmStorage
Temperature: -20C to 80CWorking
Temperature: -10C to 70CUSB
Cable: 1.2MO perating System RequestWin10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
