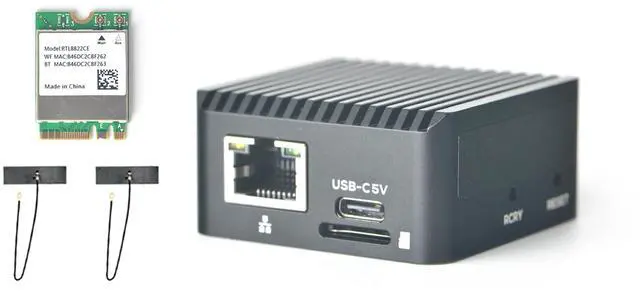

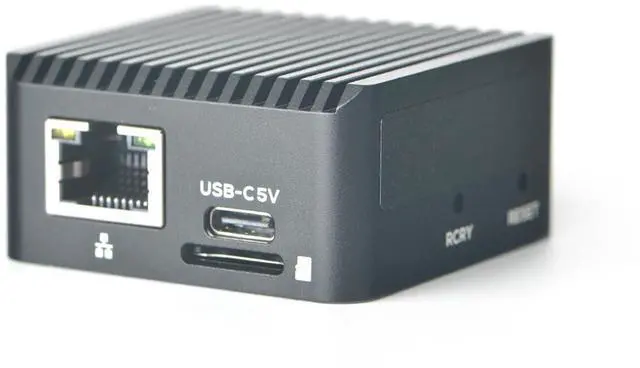

NanoPi Zero2 Mini WiFi Router, Portable Fast GigE Computer, 1GB/2GB LPDDR4X RAM Rockchip RK3528A SoC, 4K H265/H264 Decoder, Gigabit Ethernet Port for IoT Smart Gateway (1GB with M.2 WiFi Module)
- [IoT Development Platform] The NanoPi Zero2 mini wifi router is an open source platform smart gateway with Gbps Ethernet ports designed for IoT applications, smart home office gateway, portable VPN router and support 4K H265/H264 60fps decoding.
- [High Performance SoC] The NanoPi Zero2 mini wifi router uses Rockchip RK3528A SoC,CPU: Quad-core ARM Cortex-A53, GPU: ARM Mali-450 GPU, VPU: 4K H265/H264 60fps decoding, Memory: 1GB/2GB LPDDR4/LPDDR4X RAM, Flash: none eMMC, but supports eMMC Module or TF Card,. Host Size: 50x50x25 mm, Weight: 87g.
- [Rich Peripheral Interface] NanoPi Zero2 onboard 1x Native Gigabit Ethernet port, 1x M.2 Key-E 2230 connector with PCIe 2.1, USB Ports: 1x USB 2.0 Host Type-A port and 1x USB 2.0 Device Type-C port for eMMC upgrade. 1x microSD Slot, 1x 30-pin FPC GPIO connector. 1x Debug port: UART, 3.3V level, 1500000bps. Power supply: 5V/2A, via USB-C connector.
- [Super Tiny Fast GigE Computer] NanoPi Zero2 computer mini router ported an FriendlyW
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

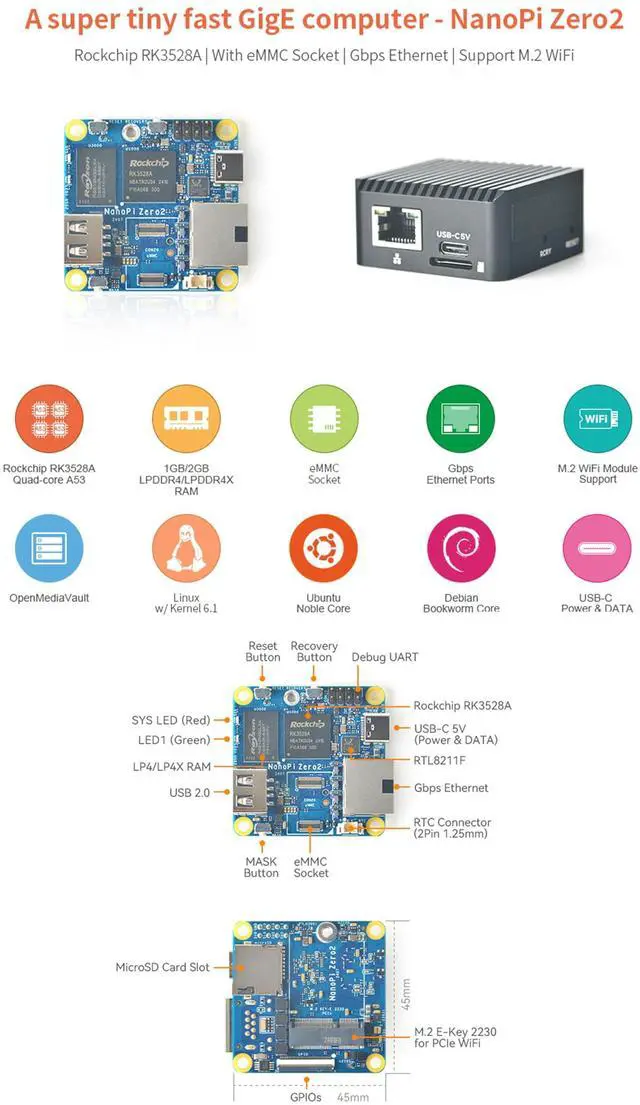

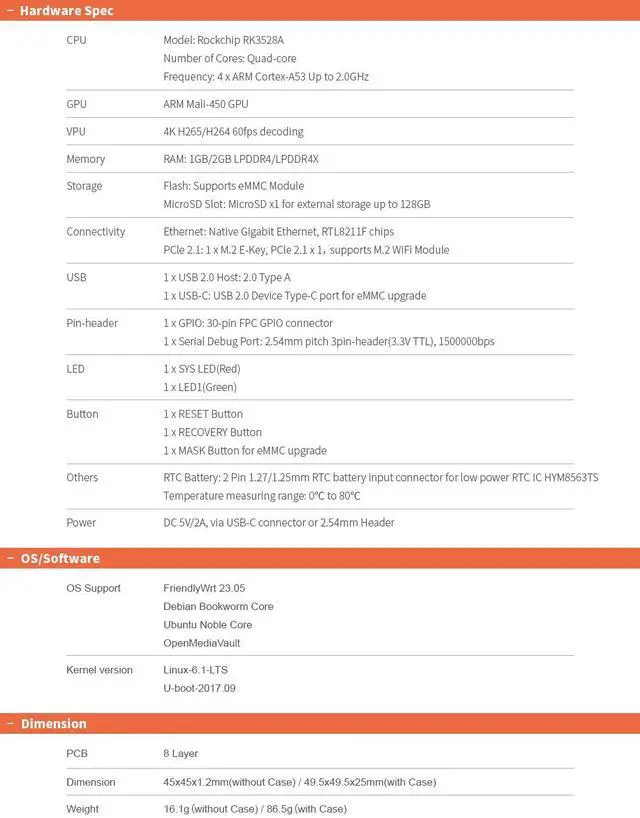

--Hardware Spec--
SoC: Rockchip RK3528A
CPU: Quad-core ARM Cortex-A53
GPU: ARM Mali-450 GPU
VPU: 4K H265/H264 60fps decoding
RAM: 1GB/2GB LPDDR4/LPDDR4X
Flash: Supports eMMC Module
Ethernet: one Native Gigabit Ethernet
M. 2 Key-E 2230 connector with PCIe 2.1
USB Ports:
One USB 2.0 Host Type-A port
One USB 2.0 Device Type-C port for eMMC upgrade
One microSD Slot
One 30-pin FPC GPIO connector
Debug: Debug UART, 3.3V level, 1500000bps

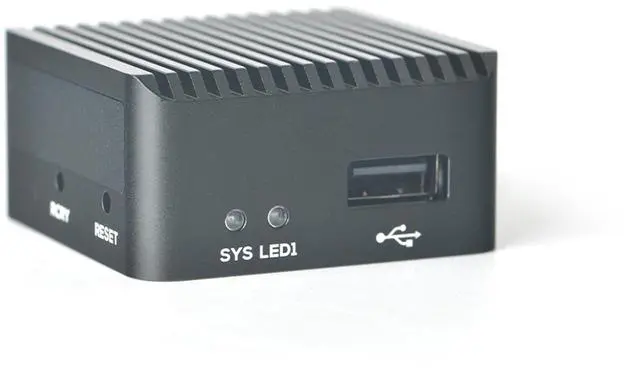

LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)
others:
2 Pin 1.27 / 1.25 mm battery connector for Low-power RTC
RESET Button, RECOVERY Button, and MASK Button for eMMC upgrade
Power Supply: DC 5V/2A, via USB-C connector or 2.54 mm Header
PCB Size: 45*45* 1.2 mm
Temperature measuring range: 0 to 80
-Package Content-
1x Nanopi Zero2 Mini Wifi Router
-Technical Support-
Please click "WayPonDEV" and ask a question or monica#smartfire. cn (f----@) skype: monica_9122
Please leave the message in our forum by forum. youyeetoo. com/
SoC: Rockchip RK3528A
CPU: Quad-core ARM Cortex-A53
GPU: ARM Mali-450 GPU
VPU: 4K H265/H264 60fps decoding
RAM: 1GB/2GB LPDDR4/LPDDR4X
Flash: Supports eMMC Module
Ethernet: one Native Gigabit Ethernet
M. 2 Key-E 2230 connector with PCIe 2.1
USB Ports:
One USB 2.0 Host Type-A port
One USB 2.0 Device Type-C port for eMMC upgrade
One microSD Slot
One 30-pin FPC GPIO connector
Debug: Debug UART, 3.3V level, 1500000bps
LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)
others:
2 Pin 1.27 / 1.25 mm battery connector for Low-power RTC
RESET Button, RECOVERY Button, and MASK Button for eMMC upgrade
Power Supply: DC 5V/2A, via USB-C connector or 2.54 mm Header
PCB Size: 45*45* 1.2 mm
Temperature measuring range: 0 to 80
-Package Content-
1x Nanopi Zero2 Mini Wifi Router
-Technical Support-
Please click "WayPonDEV" and ask a question or monica#smartfire. cn (f----@) skype: monica_9122
Please leave the message in our forum by forum. youyeetoo. com/
