LINKOMM 25-Pack RJ45 Cat5e UTP Unshielded Keystone Jack with Punch Down Palm Holder (Black)

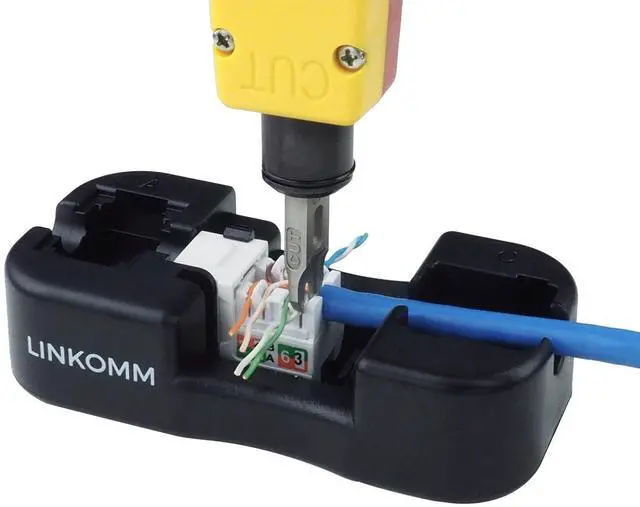

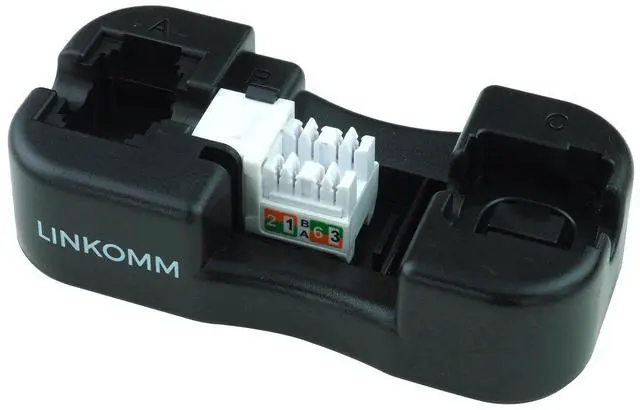

- 90-degree punch-down installation snap-in RJ45 Cat. 5e keystone jack fit in patch panels, wall plates, or surface mount boxes including a free Punch-Down Installation Palm Holder
- Wire IDC compatible with both KRONE and 110 punch-down tools
- IDC suitable for 23 to 26 AWG solid and stranded wires
- Nickel-plate plug contacts with 50u" gold-plated for low-loss data transmission
- Comply with TIA/EIA 568 C.2 and UL Standards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

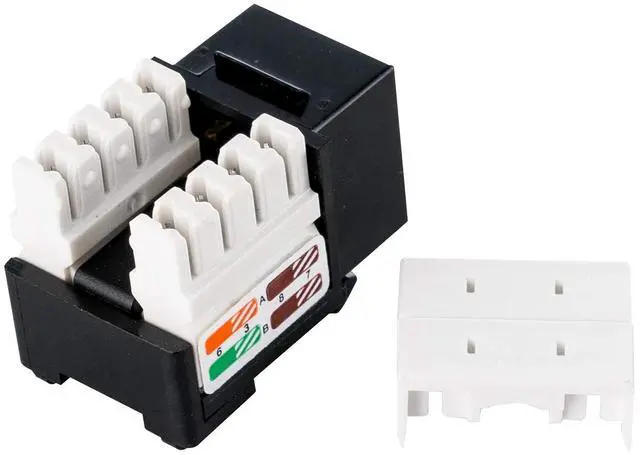

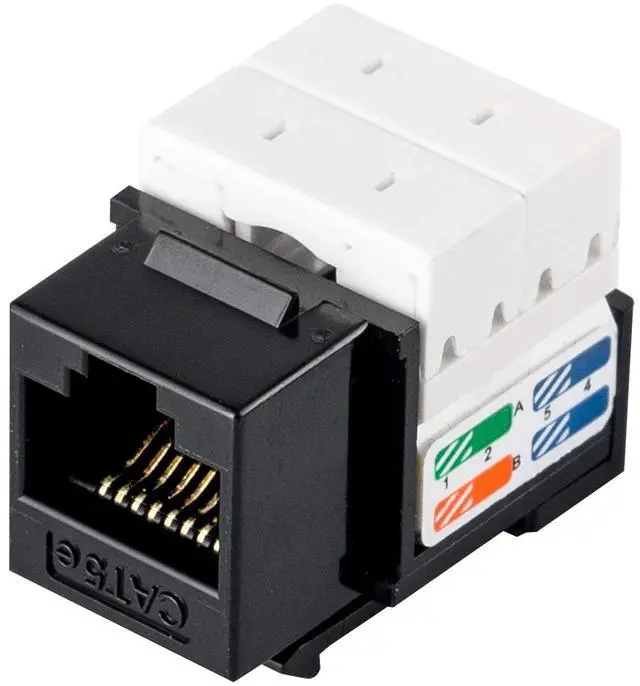

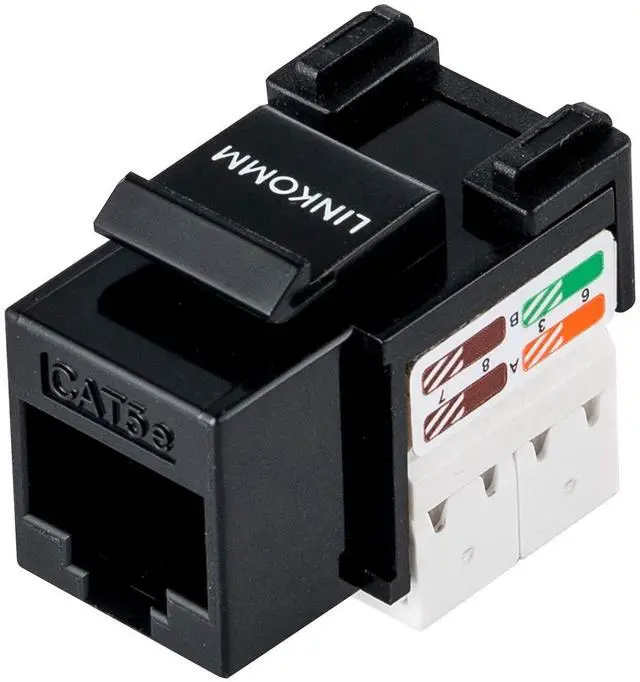

LINKOMM RJ45 UTP Unshielded Keystone Jack
LINKOMM RJ45 Keystone Jack is 90-degree wire connection. It can be mounted onto surface mount boxes, keystone wall plates and patch panels. 568A and 568B wiring map are labeled and easy to read. It Supports 110 or Krone dual type termination and accepts 23 or 24 AWG solid Ethernet cables. The strong and fire-retardant plastic housing features guarantee the best quality.
Material
- Housing: ABS+PC, UL 94V-0
- Contact Bracket: PBT and Glass Fiber, UL94V-0
- Jack Contact: Phosphor Bronze with Nickel Plated
- Contact Finished: 50 micro-inch Gold plated on Plug contact area
- IDC Housing: PC and Glass Fiber, UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin plated
- IDC CAP: ABS, UL94-HB
- IDC Bracket: ABS, UL 94V-0
- PCB: FR4, UL94V-0
Performance
- T568A&T568B wiring sticker
- Insertion force: 20N max. (IEC 60603-7-4)
- Retention strength: 7.7 kg between Jack and Plug
- Operating temperature: -10 to 60. (ISO/IEC 11801, ANSI/TIA/EIA 568 C. 2)
- Life cycle: 750 cycles min.
- IDC suitable for 23-26AWG stranded or solid wire, compatible with both 110&Krone punch-down tools
- The Cat. 5e transmission performance is in compliance with ANSI/TIA/EIA 568 C. 2 standard
LINKOMM RJ45 Keystone Jack is 90-degree wire connection. It can be mounted onto surface mount boxes, keystone wall plates and patch panels. 568A and 568B wiring map are labeled and easy to read. It Supports 110 or Krone dual type termination and accepts 23 or 24 AWG solid Ethernet cables. The strong and fire-retardant plastic housing features guarantee the best quality.
Material
- Housing: ABS+PC, UL 94V-0
- Contact Bracket: PBT and Glass Fiber, UL94V-0
- Jack Contact: Phosphor Bronze with Nickel Plated
- Contact Finished: 50 micro-inch Gold plated on Plug contact area
- IDC Housing: PC and Glass Fiber, UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin plated
- IDC CAP: ABS, UL94-HB
- IDC Bracket: ABS, UL 94V-0
- PCB: FR4, UL94V-0
Performance
- T568A&T568B wiring sticker
- Insertion force: 20N max. (IEC 60603-7-4)
- Retention strength: 7.7 kg between Jack and Plug
- Operating temperature: -10 to 60. (ISO/IEC 11801, ANSI/TIA/EIA 568 C. 2)
- Life cycle: 750 cycles min.
- IDC suitable for 23-26AWG stranded or solid wire, compatible with both 110&Krone punch-down tools
- The Cat. 5e transmission performance is in compliance with ANSI/TIA/EIA 568 C. 2 standard
