$56.99
Meet Your Seller

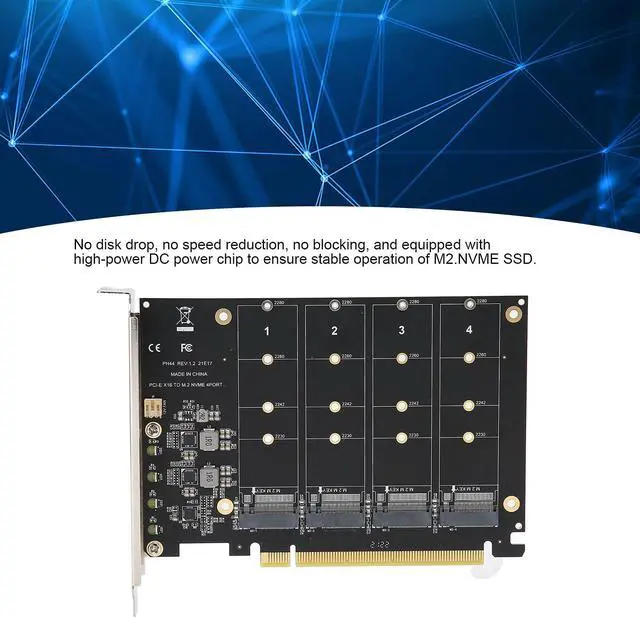

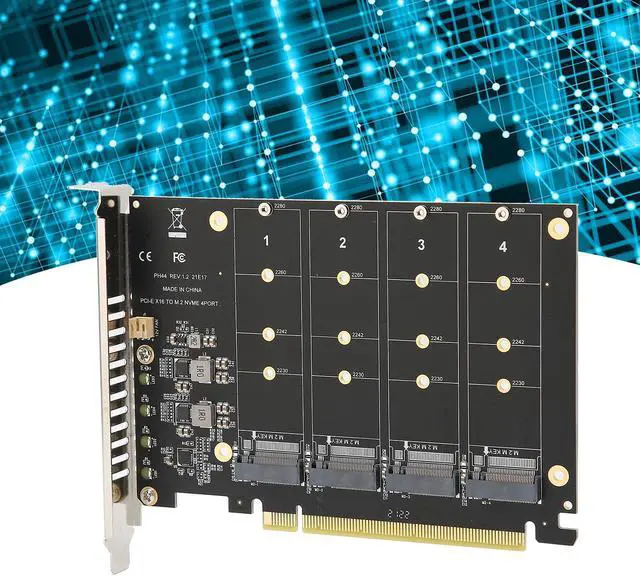

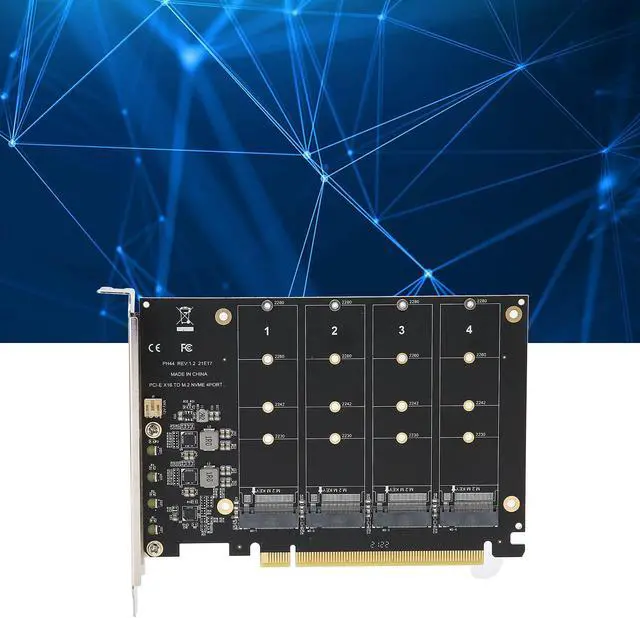

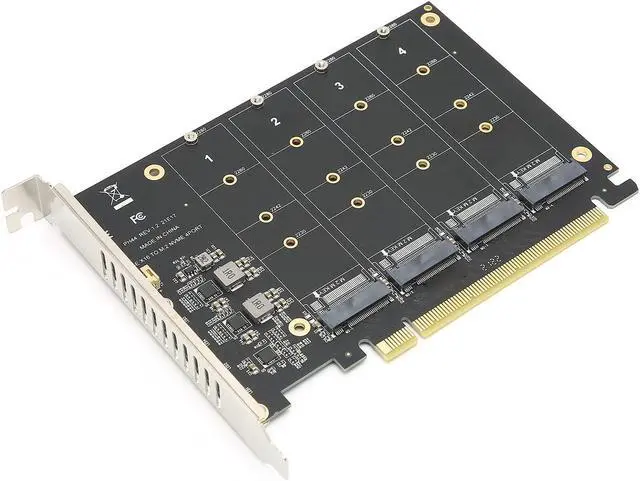

Yosoo Health Gear 4 Port NVMe to PCIe Host Controller Expansion Card, M.2 PCIE Adapter Card, M.2 NVMe SSD to PCIE X16 M Key Hard Drive Converter Reader Expansion Card
- [4-port M.2 Pcie Adapter Card]: This adapter card has 4 expansion cards, which can simultaneously expand 4 x 32Gbps full-speed
- [4 LED indicators ]: 4 hard drives are equipped with 4 LED indicators and the is simple and convenient
- [PCIE Split/ Function]: The motherboard supports PCIE split or PCIE function, and supports PCIE 3.0, 4.0 protocol
- [High Performance]: The nvme pcie card adopts a firm structure and uses thicker PCB material to stabilize the PCIE X16 interface and important data
- [M.2 Expansion Card]: No disk drop, no speed reduction, no blocking, and equipped with high-power DC power chip to ensure stable of M2. NVME SSD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Item Type: Adapter Card
Model: PH44
Support Hard Disk: M. 2 NVME Protocol SSD / M. 2 PCIE Equipment
Speed: 4 x 32Gbps
How to Use
1.
Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCI-E function. For motherboard supports the function of HyperM. 2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE is X8+. X4+X4, this motherboard 4-bit M. 2 card can only support. 2 SSDs or devices, and 2-bit M. 2 card can only support 1 M. 2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M. 2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.
For motherboards that support PCIE split, please refer to the following link
https: //www.. com/tw/support/FAQ/1037507
For motherboards that support PCIE split, please refer to the following link
https: //www.. com/mb/spec/product. cn. asp? Model=ULTRA%20QUAD%20M. 2%20CARD#SupportList
Server motherboards, X299 and X399 motherboards have split function
2. CPU support is required, and the CPU must have enough channels. Generally, low-end CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.

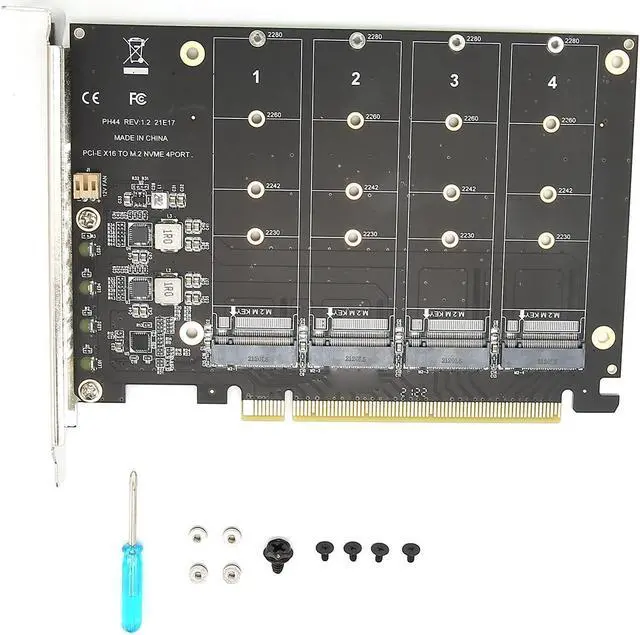

Package List
1 x Adapter Card
4 x Nuts
5 x Screws
1 x Screwdriver
Item Type: Adapter Card
Model: PH44
Support Hard Disk: M. 2 NVME Protocol SSD / M. 2 PCIE Equipment
Speed: 4 x 32Gbps
How to Use
1.
Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCI-E function. For motherboard supports the function of HyperM. 2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE is X8+. X4+X4, this motherboard 4-bit M. 2 card can only support. 2 SSDs or devices, and 2-bit M. 2 card can only support 1 M. 2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M. 2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.
For motherboards that support PCIE split, please refer to the following link
https: //www.. com/tw/support/FAQ/1037507
For motherboards that support PCIE split, please refer to the following link
https: //www.. com/mb/spec/product. cn. asp? Model=ULTRA%20QUAD%20M. 2%20CARD#SupportList
Server motherboards, X299 and X399 motherboards have split function
2. CPU support is required, and the CPU must have enough channels. Generally, low-end CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.
Package List
1 x Adapter Card
4 x Nuts
5 x Screws
1 x Screwdriver
