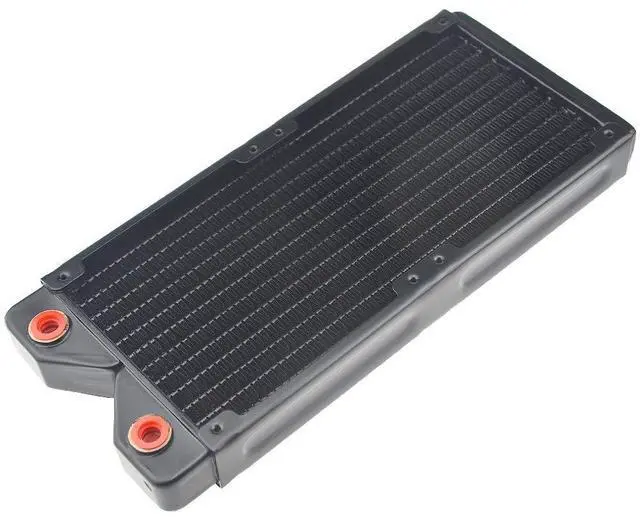

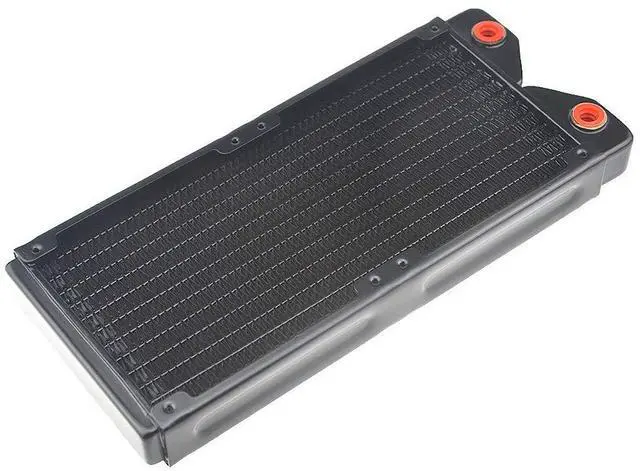

BXQINLENX 240 Pure Copper 12 Pipe Heat Exchanger Radiator for Computer PC CPU CO2 Laser Water Cool System

With its compact design and excellent cooling performance, the radiator become top choice of water cooling users. The copper fins are specially designed for silent fans, while the parallel coolant channels reduce liquid resistance to a minimum. On both sides of the radiator M3 threads are integrated to allow flexible fan mounting, on top chamber both G1/4" threads allow easy installation of all common fittings and barbs.

Technical specifications:
Material: Copper fins, brass chambers
Fins spacing: 16 FPI (Fins per Inch)

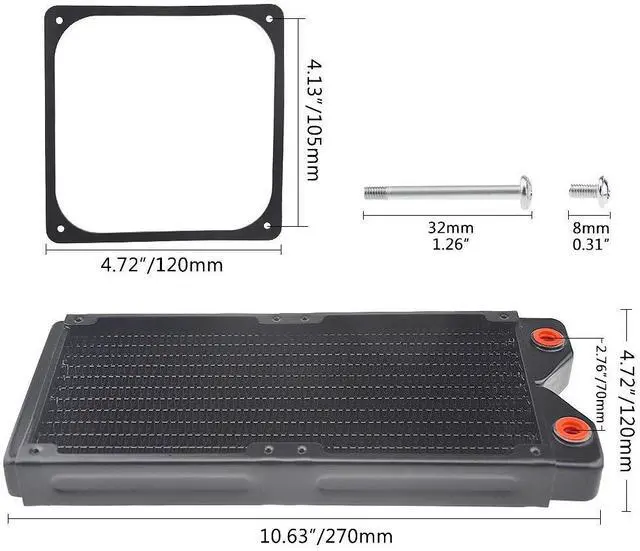

Dimensions: 273 X 120 X 27 (mm)
Tube: 16 mm X 1.5 mm

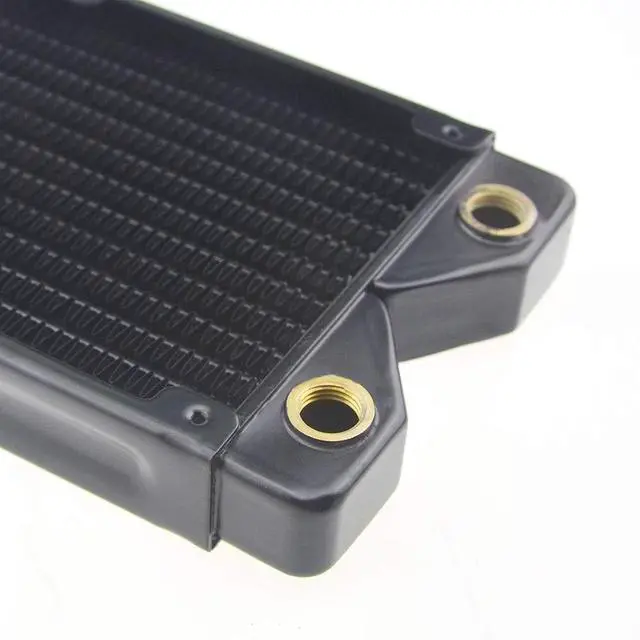

Connection threads: G 1/4"
Weight: 580 g
Pressure tested: 2.5 bar
Mounting / fan installation: 8 X UNC 6-32 threads on both side for 120 mm fan

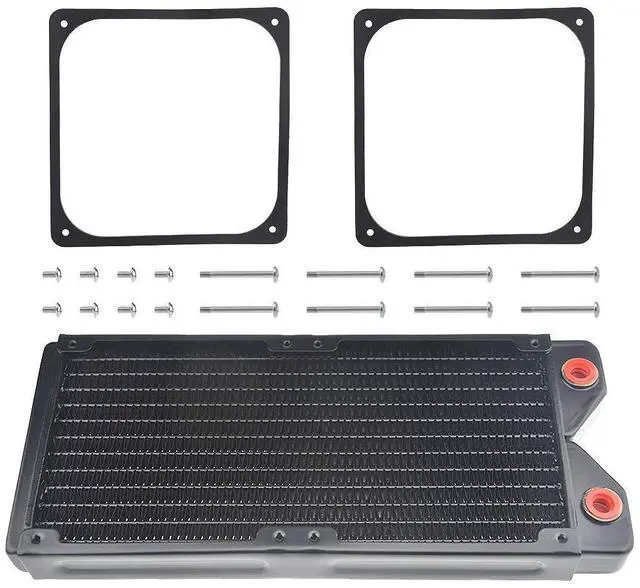

Delivery includes: 1 X Slim 240 mm radiator
8 X 30 mm screws
8 X 5 mmscrews
2 X Fan Silicon pad
